Vacuubrand MD 1, Diaphragm Pump, Three-Stage, NRTL Certified (C/US), 100–115 V / 50–60 Hz, 120 V / 60 Hz, 220–230 V / 50–60 Hz, CH/CN Power Cord

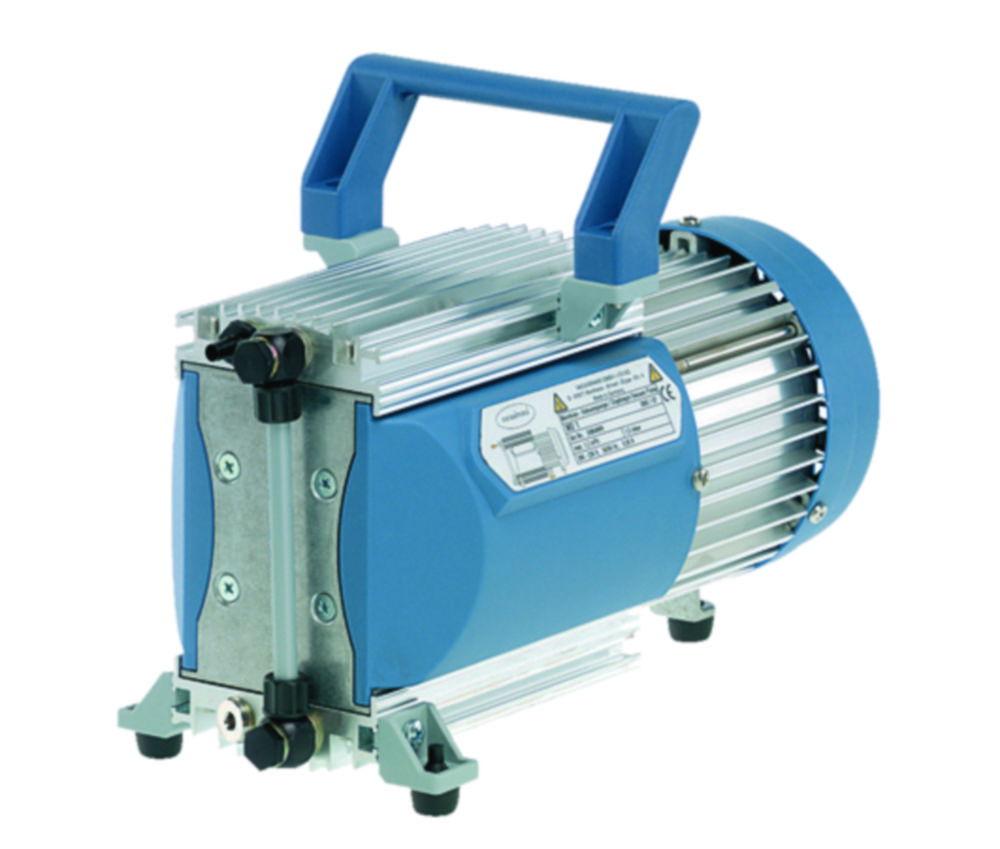

The Vacuubrand MD 1 Diaphragm Pump is a high-performance, oil-free, three-stage diaphragm pump designed for continuous operation in laboratory environments. Certified by NRTL (C/US), it ensures compliance with North American safety standards. This pump is suitable for applications requiring the handling of non-corrosive gases and vapors, providing high pumping speed and deep ultimate vacuum in a compact design.

Key Features:

• Brand: VACUUBRAND
• Model: MD 1
• Type: Chemistry diaphragm pump
• Number of Stages: 3
• Ultimate Vacuum: 1.5 mbar (1.1 torr)
• Maximum Pumping Speed: 1.2 m³/h (50 Hz); 0.82 cfm (60 Hz)
• Voltage Options: 100–115 V / 50–60 Hz, 120 V / 60 Hz, 220–230 V / 50–60 Hz
• Plug Types: CH (Swiss) / CN (China)
• Dimensions: 143 mm (W) x 326 mm (D) x 215 mm (H)
• Weight: 7.3 kg
• Materials in Contact with Media: Chemically resistant fluoroplastics
• Protection Class: IP 40
• Applications: Rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications

The MD 1 features chemically resistant materials for all internal parts in contact with pumped media, ensuring durability and longevity. Its compact design, low noise level, and maintenance-free operation make it an excellent choice for various laboratory applications.

Frequently Asked Questions

1. What is the Vacuubrand MD 1, Diaphragm Pump, Three-Stage, NRTL Certified, 100–115 V / 50–60 Hz, 120 V / 60 Hz, 220–230 V / 50–60 Hz, CH/CN Power Cord used for?

It is a high-performance, oil-free, three-stage diaphragm pump designed for continuous operation in laboratory environments. Certified by NRTL (C/US), it ensures compliance with North American safety standards. This pump is suitable for applications requiring the handling of non-corrosive gases and vapors, providing high pumping speed and deep ultimate vacuum in a compact design.

2. Is this product suitable for Rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications?

Yes. It is designed for Rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications, and offers number of stages of 3 and an ultimate vacuum of 1.5 mbar (1.1 torr) to support this kind of work.

3. What number of stages and ultimate vacuum does this product have?

It has number of stages of 3, an ultimate vacuum of 1.5 mbar (1.1 torr) and a maximum pumping speed of 1.2 m³/h (50 Hz); 0.82 cfm (60 Hz).

4. What type and plug types does this product offer?

It offers chemistry diaphragm pump, CH (Swiss) / CN (China), chemically resistant fluoroplastics and IP 40.
