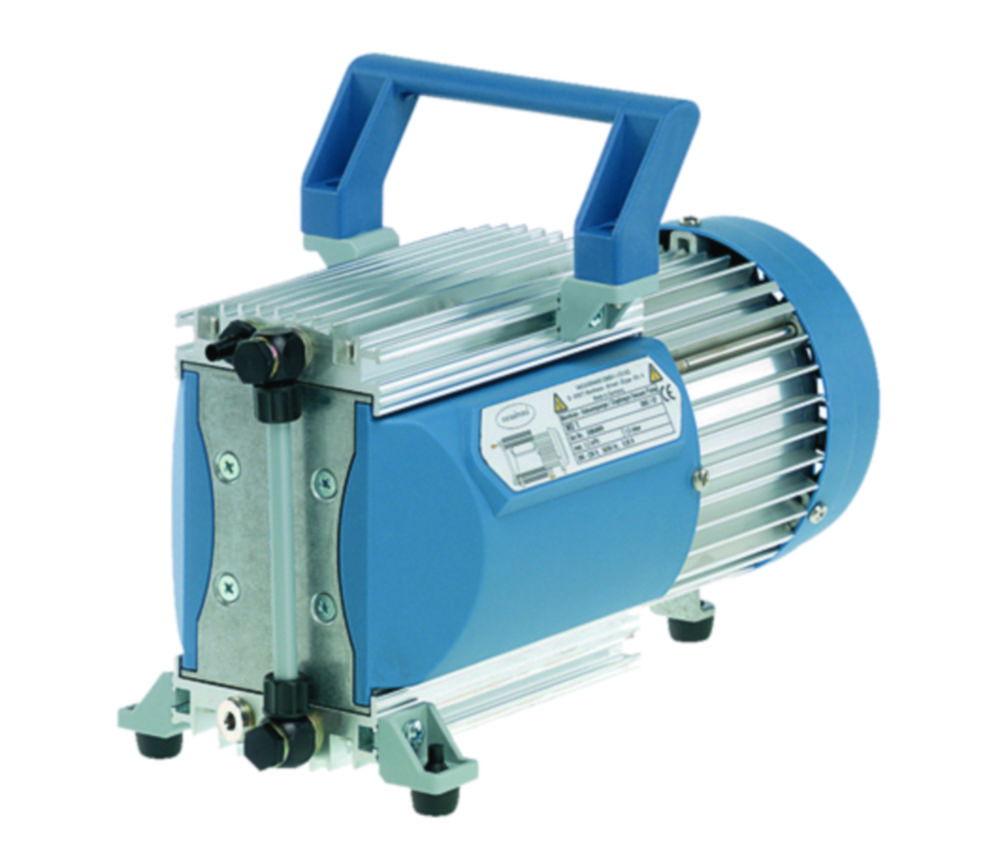

Representative Image

Vacuubrand Diaphragm Pump MD 1

Plug type

Specifications

Compare models
HS Code #
84141089
Connection pressure side
G1/8"
Connection suction side
DN 6
Depth
326 mm
Dimensions (WxDxH)
143 x 326 x 215 mm
Flow rate
1.2 m³/h
Height
215 mm
No. of stages
3
Plug type
EU
Type
MD 1
Type of auxiliary energy
Mains connection

Alternative in-stock items

RM 12,012.00

Inc. GST

Available soon

Product description

The Vacuubrand MD 1 is a compact, oil-free, three-stage diaphragm vacuum pump designed for the efficient evacuation and pumping of non-corrosive gases. With an ultimate vacuum of 1.5 mbar and a maximum pumping speed of 1.2 m³/h at 50 Hz, it is ideal for applications requiring clean, dry vacuum conditions without the use of oil.

Key Features:

  • Brand: VACUUBRAND
  • Ultimate Vacuum: 1.5 mbar (1.1 torr)
  • Maximum Pumping Speed: 1.2 m³/h (50 Hz)
  • Number of Stages: 3
  • Number of Heads: 4
  • Power Supply: 100–120 V / 200–230 V, 50/60 Hz
  • Rated Motor Power: 0.08 kW
  • Rated Motor Speed: 1500/1800 min⁻¹ (50/60 Hz)
  • Inlet Connection: Hose nozzle DN 6 mm
  • Outlet Connection: Silencer / G1/8"
  • Dimensions (L x W x H): 326 x 143 x 215 mm
  • Weight: 7.3 kg
  • Noise Level: 40 dBA
  • Ambient Temperature Range (Operation): 10°C to 40°C
  • Ambient Temperature Range (Storage): -10°C to 60°C
  • Max. Back Pressure (abs.): 1.1 bar
  • Protection Class: IP 40 (IEC 60529)
  • Certifications: NRTL certified

The MD 1's three-stage design with precisely guided flat diaphragms provides outstanding pumping speed even close to the ultimate vacuum, especially when compared with similarly rated two-stage diaphragm pumps. Its ultra-low vibration and long diaphragm lifetime ensure stable performance over years of use. The flow path, constructed from aluminum and selected plastics (PTFE/FKM diaphragms and FKM valves), makes it suitable for a wide range of applications with non-corrosive gases.

Ideal for applications such as exhaust gas analysis, degassing of small amounts of viscous media, and as a backing pump for compact turbomolecular drag pumps, the MD 1 offers maintenance-free operation with high reliability.

Downloads

Accessories

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081RM 555.50
PVC34.9 mm206860634.714 084RM 1,138.50
PVC38.1 mm206860654.714 085RM 1,325.50
PVC15.9 mm206860614.714 082RM 643.50
PVC22.3 mm206860624.714 083RM 704.00

Compare similar models

Diaphragm pump MD 1
Available soon
Vacuubrand Diaphragm Pump MD 1

RM 12,012.00

Inc. GST

Manufacturer P/N

20696080

Part Number

9.880 080

Manufacturer

VACUUBRAND​

Plug type

EU

Diaphragm pump MD 1, three stage, certification (NRTL): C/US, 100-115 V / 50-60 Hz, 120 V / 60 Hz, 220-230 V / 50-60 Hz, CH/CN power cord

Manufacturer P/N

20696081

Part Number

4.670 337

Manufacturer

VACUUBRAND​

Plug type

CH

Diaphragm pump MD 1 Uk-Plug
Available soon
Vacuubrand MD 1, Diaphragm Pump, Three-Stage, UK Plug

RM 12,012.00

Inc. GST

Manufacturer P/N

20696082

Part Number

6.284 823

Manufacturer

VACUUBRAND​

Plug type

UK

Diaphragm pump MD 1, three stage, certification (NRTL): C/US, 100-115 V / 50-60 Hz, 120 V / 60 Hz, 220-230 V / 50-60 Hz, US power cord

Manufacturer P/N

20696083

Part Number

4.670 338

Manufacturer

VACUUBRAND​

Plug type

US

More items to explore

Diaphragm pumps, Aluminium PTFE design, ME 1

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUME 1207210009.880 930In stockRM 4,856.50
UKME 1207210029.880 932RM 4,856.50
CHME 1207210019.880 931RM 4,856.50
USME 1207210039.880 933RM 4,856.50

Frequently asked questions

It is a compact, oil-free, three-stage diaphragm vacuum pump designed for the efficient evacuation and pumping of non-corrosive gases. With an ultimate vacuum of 1.5 mbar and a maximum pumping speed of 1.2 m³/h at 50 Hz, it is ideal for applications requiring clean, dry vacuum conditions without the use of oil.
