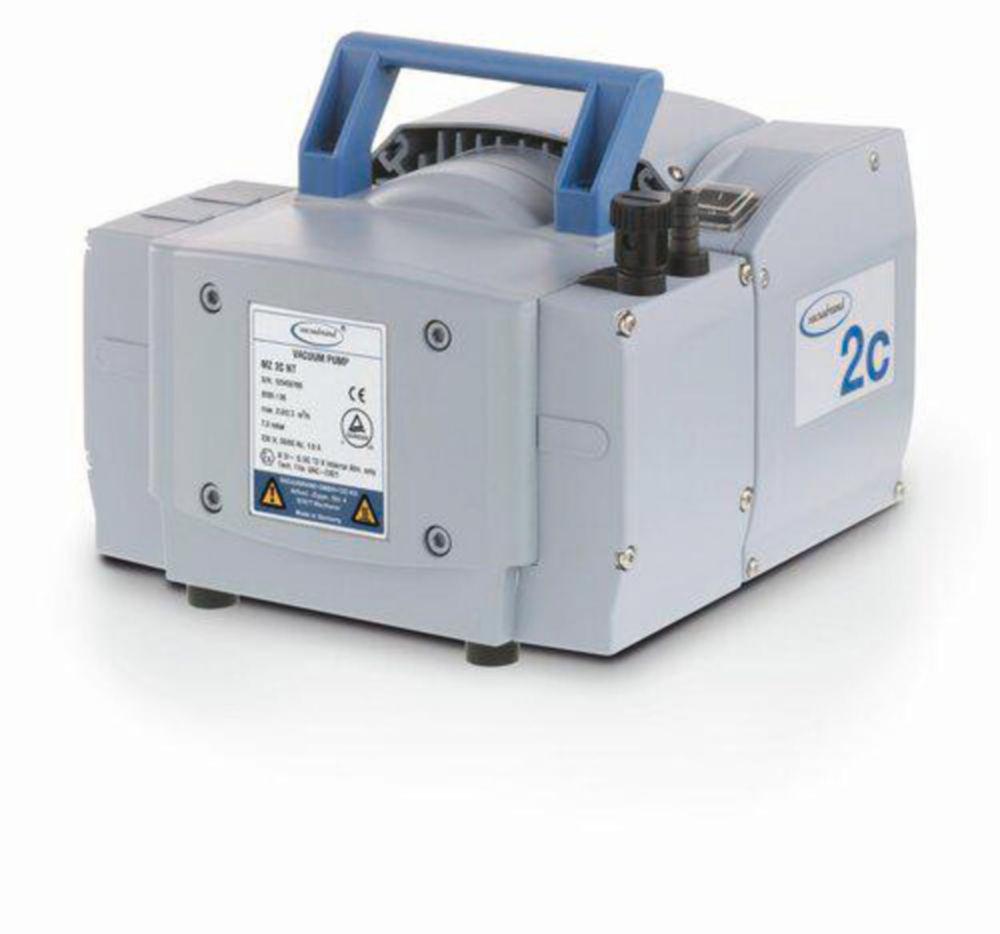

Vacuubrand Chemistry Diaphragm Pump MZ 2C NT, Two-Stage, 230 V, 50 Hz, CH Plug

The Vacuubrand MZ 2C NT is a robust, oil-free, two-stage diaphragm vacuum pump designed for efficient and reliable laboratory applications involving corrosive gases and vapors. Operating at 230 V with a Swiss (CH) plug, it offers a maximum pumping speed of 2.0 m³/h and achieves an ultimate vacuum of 7 mbar (5 torr). Its chemically resistant construction ensures durability and longevity in various laboratory environments.

Key Features:

• Brand: Vacuubrand
• Model: MZ 2C NT
• Voltage/Frequency: 230 V / 50 Hz
• Maximum Pumping Speed: 2.0 m³/h
• Ultimate Vacuum: 7 mbar (5 torr)
• Ultimate Vacuum with Gas Ballast: 12 mbar (9 torr)
• Number of Stages: 2
• Number of Heads: 2
• Inlet/Outlet Connection: Hose nozzle DN 8–10 mm
• Rated Motor Power: 0.18 kW
• Rated Motor Speed: 1500 min⁻¹ (50 Hz)
• Protection Class: IP 40 (IEC 60529)
• Dimensions (L x W x H): 243 x 243 x 198 mm
• Weight: 11.1 kg
• Noise Level: 45 dBA
• Ambient Temperature Range (Operation): 10°C to 40°C
• Ambient Temperature Range (Storage): -10°C to 60°C
• Max. Back Pressure (abs.): 1.1 bar
• Certifications: NRTL certified
• ATEX Conformity: II 3G IIC T3 X Internal Atm. only

This pump is ideal for applications such as vacuum filtration, rotary evaporation, and degassing in chemical laboratories, offering maintenance-free operation with high chemical resistance.
