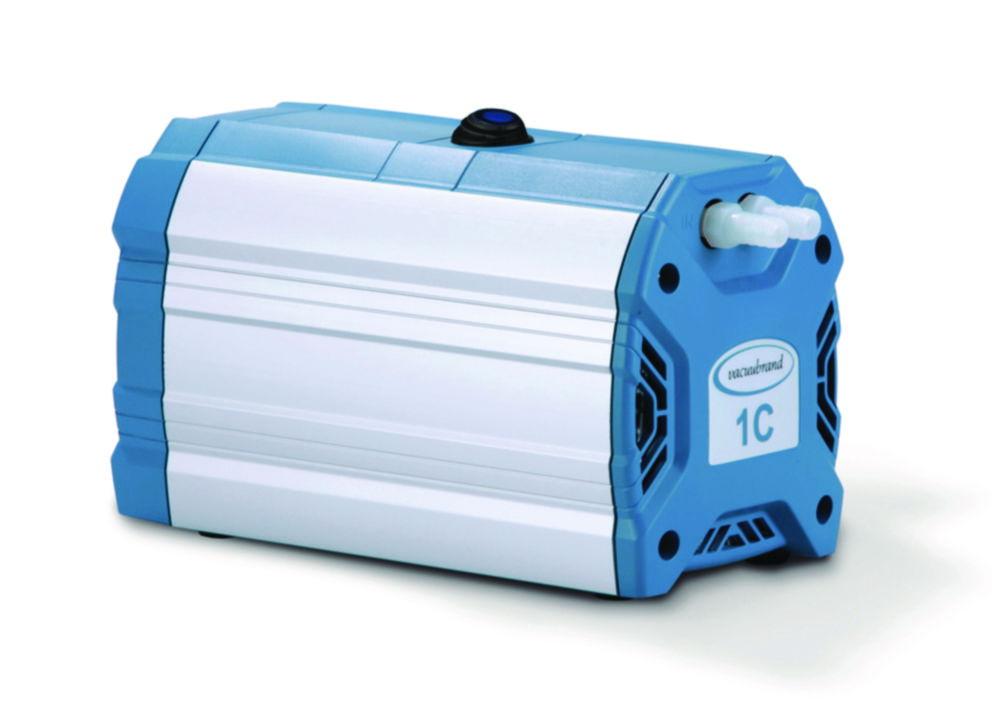

Vacuubrand Chemical Membrane Pump ME 1C, 230 V, 50/60 Hz, UK Mains Cable

The Vacuubrand ME 1C is a compact, oil-free diaphragm pump designed for chemical applications requiring reliable vacuum performance. Operating at 230 V with a UK mains cable, this pump offers a maximum pumping speed of 0.7 m³/h at 50 Hz and achieves an ultimate vacuum of 100 mbar (75 torr). Its chemically resistant construction ensures durability and longevity in laboratory environments.

Key Features:

• Brand: Vacuubrand
• Model: ME 1C
• Voltage/Frequency: 230 V / 50–60 Hz
• Maximum Pumping Speed: 0.7 m³/h (50 Hz), 0.5 cfm (60 Hz)
• Ultimate Vacuum: 100 mbar (75 torr)
• Number of Stages: 1
• Number of Heads: 1
• Inlet/Outlet Connections: Hose nozzle DN 8–10 mm
• Rated Motor Power: 0.04 kW
• Rated Motor Speed: 1500/1800 min⁻¹ (50/60 Hz)
• Protection Class: IP 40 (IEC 60529)
• Dimensions (L x W x H): 270 x 121 x 154 mm
• Weight: 5.4 kg
• Noise Level: 49 dBA
• Ambient Temperature Range (Operation): 10°C to 40°C
• Ambient Temperature Range (Storage): -10°C to 60°C
• Max. Back Pressure (abs.): 1.1 bar
• Certifications: NRTL certified

Ideal for applications such as vacuum filtration and sample preparation in chemical laboratories, the ME 1C offers maintenance-free operation with high chemical resistance.

Frequently Asked Questions

1. What is the Vacuubrand Chemical Membrane Pump ME 1C, 230 V, 50/60 Hz, UK Mains Cable used for?

It is a compact, oil-free diaphragm pump designed for chemical applications requiring reliable vacuum performance. Operating at 230 V with a UK mains cable, this pump offers a maximum pumping speed of 0.7 m³/h at 50 Hz and achieves an ultimate vacuum of 100 mbar (75 torr). Its chemically resistant construction ensures durability and longevity in laboratory environments.

2. Is the Vacuubrand Chemical Membrane Pump ME 1C, 230 V, 50/60 Hz, UK Mains Cable suitable for chemical applications requiring reliable vacuum performance?

Yes. It is designed for chemical applications requiring reliable vacuum performance, and offers a voltage/frequency of 230 V / 50–60 Hz and a maximum pumping speed of 0.7 m³/h (50 Hz), 0.5 cfm (60 Hz) to support this kind of work.

3. What voltage/frequency and maximum pumping speed does the Vacuubrand Chemical Membrane Pump ME 1C, 230 V, 50/60 Hz, UK Mains Cable have?

It has a voltage/frequency of 230 V / 50–60 Hz, a maximum pumping speed of 0.7 m³/h (50 Hz), 0.5 cfm (60 Hz) and an ultimate vacuum of 100 mbar (75 torr), and is supplied under manufacturer part number 20721102.

4. What inlet/outlet connections and protection class does the Vacuubrand Chemical Membrane Pump ME 1C, 230 V, 50/60 Hz, UK Mains Cable offer?

It offers hose nozzle DN 8–10 mm, IP 40 (IEC 60529), -10°C to 60°C and NRTL certified.

5. How does the Vacuubrand Chemical Membrane Pump ME 1C, 230 V, 50/60 Hz, UK Mains Cable compare with the KNF LIQUIPORT Membrane Liquid Pump NF 1.300 TT.18 RC Chemical Resistant, PVDF Pump Head from KNF?

For chemical applications requiring reliable vacuum performance, the VACUUBRAND model is the better choice, offering a voltage/frequency of 230 V / 50–60 Hz, a maximum pumping speed of 0.7 m³/h (50 Hz), 0.5 cfm (60 Hz) and an ultimate vacuum of 100 mbar (75 torr). The KNF model offers precise liquid transfer with low pulsation as an alternative, while the VACUUBRAND model's hose nozzle DN 8–10 mm and IP 40 (IEC 60529) help make it a strong fit for chemical applications requiring reliable vacuum performance.
