Heidolph Rotary Evaporator Hei-VAP Core ML G5B-CH Motor Lift (CH-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
Cooling surface
1400 cm²
Glassware
Coated
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT
Plug type
CH

RM 36,129.50

Inc. GST

Available soon

Product description

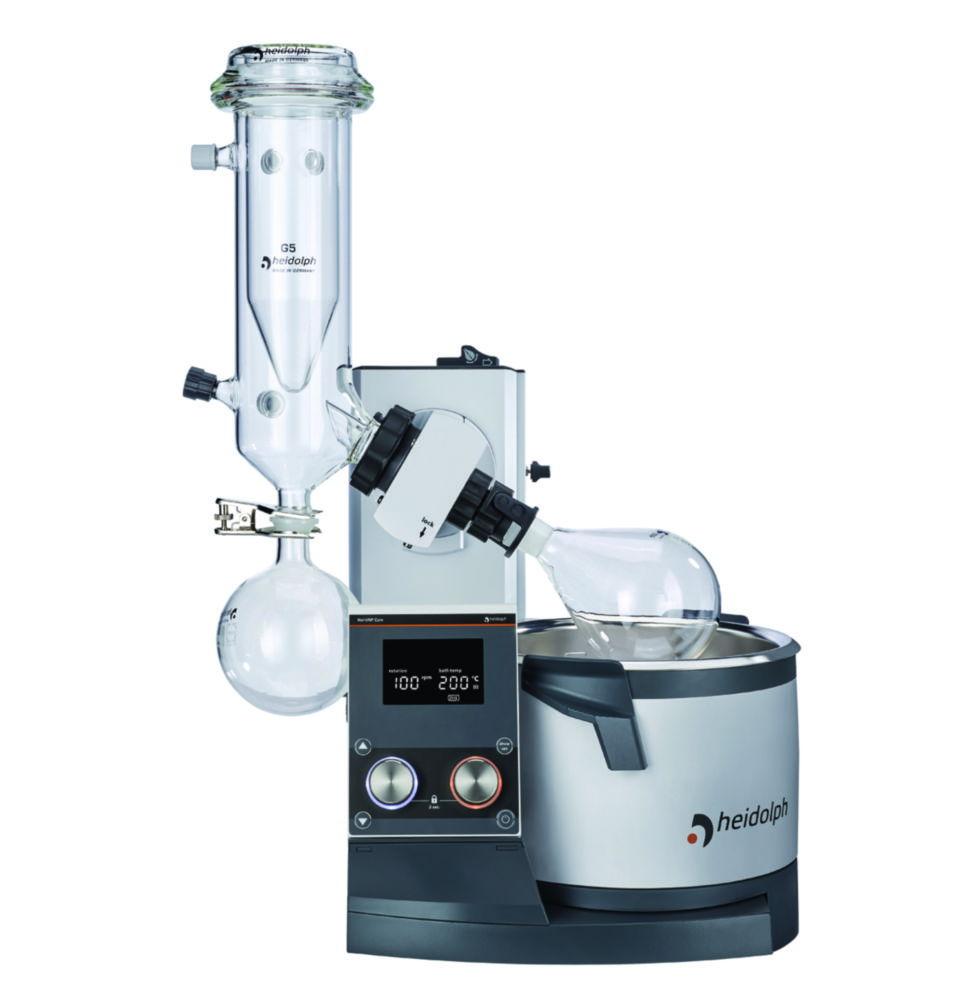

The Heidolph Rotary Evaporator Hei-VAP Core ML G5B-CH Motor Lift (CH-Plug) is engineered for efficient and reliable solvent evaporation in laboratory settings. Featuring a clear digital display, separate knobs for rotation speed and heating temperature, and an LED ring light system for activity indication, this unit ensures precise control and user-friendly operation. The motor lift mechanism allows for easy adjustment of immersion depth up to 155 mm and tilt angle from 20° to 80°, accommodating various experimental needs.

Key Features:

  • Brand: Heidolph
  • Display: Clear digital display for monitoring current and set values
  • Controls: Two separate operating knobs for adjusting rotation speed and heating temperature with LED ring light system for activity indication
  • Safety: Activated lock feature to prevent inadvertent adjustments; residual heat indicator when >50 °C
  • Standby Function: Button to stop all functions and lift the evaporator flask out of the heating bath (motor lift models only)
  • Design: Ergonomically optimized heating bath handles sit securely in your hand; grease-free operation with innovative sealing technology
  • Adjustability: Immersion depth up to 155 mm; tilt angle adjustable from 20° to 80°
  • Ventilation Cap: PTFE inlet and free of ground joints; optionally available with replenishment valve
  • Optional Accessories: Cable extension; detachable operating panel for use outside closed fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

This rotary evaporator is an indispensable tool for laboratories requiring precise and efficient solvent evaporation solutions.

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675RM 9,080.50
20 l+90 °C569-00610-009.812 665RM 7,436.00

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
3000 ml41104800514-76300-007.047 224RM 1,551.00
2000 ml41104800514-75000-007.047 223RM 940.50
250 ml41104800514-72000-007.047 221RM 676.50
500 ml41104800514-73000-007.047 222RM 737.00
5000 ml41104800514-78000-007.626 949RM 2,546.50
100 ml41104800514-71000-007.047 220RM 671.00
50 ml41104800514-70000-006.206 660RM 990.00
1000 ml41104800514-74000-007.047 172RM 880.00

Compare similar models

Rotary Evaporator Hei-VAP Core ML G5B-CH Motor lift (CH-Plug)

Manufacturer P/N

572-01510-04

Part Number

4.666 145

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G5B motor lift (EU-Plug)

Manufacturer P/N

572-01510-00

Part Number

4.666 103

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G5 motor lift (EU-Plug)

Manufacturer P/N

572-01500-00

Part Number

4.666 098

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G5-UK motor lift (UK-Plug)

Manufacturer P/N

572-01500-03

Part Number

4.666 120

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G5B-UK motor lift (UK-Plug)

Manufacturer P/N

572-01510-03

Part Number

4.666 125

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G5-CH motor lift (CH-Plug)

Manufacturer P/N

572-01500-04

Part Number

4.666 140

Manufacturer

Heidolph

Glassware

Without coating

More items to explore

Rotary Evaporators Hei-VAP Core, with hand lift, cold trap

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUG5B571-01510-004.666 093RM 34,529.00
UKG5B571-01510-034.666 115RM 34,529.00
UKG5571-01500-034.666 110RM 31,839.50
CHG5571-01500-044.666 130RM 31,839.50
CHG5B571-01510-044.666 135RM 34,529.00
EUG5571-01500-004.666 088RM 31,839.50

Rotary Evaporators Hei-VAP Core Basic Package

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUHei-VAP Core Basic571-34300-004.669 055RM 45,413.50
CHHei-VAP Core Basic571-34300-044.703 311RM 45,413.50
UKHei-VAP Core Basic571-34300-034.703 310RM 45,413.50
