Representative Image

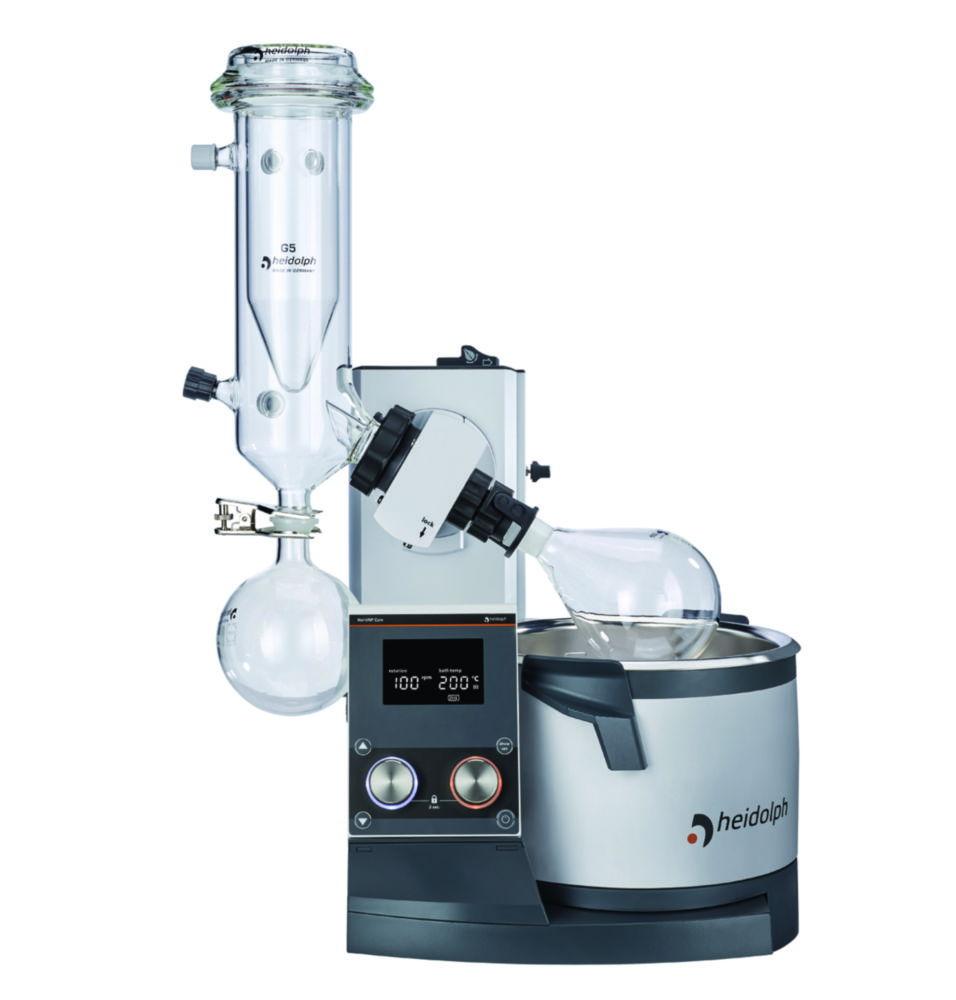

Heidolph Rotary Evaporator Hei-VAP Core ML G5-CH Motor Lift (CH-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
Cooling surface
1400 cm²
Glassware
Without coating
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT
Plug type
CH

RM 33,434.50

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G5-CH Motor Lift (CH-Plug) is engineered for precise, safe, and efficient solvent evaporation in laboratories. With an integrated motor lift and CH-Plug configuration, this model offers convenient operation and superior reproducibility for evaporation, distillation, and concentration applications. Trusted for reliability and durability, it is ideal for daily use in demanding lab environments.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G5-CH with motor lift (CH-Plug)
  • Application: Perfect for solvent evaporation, distillation, and concentration
  • Lift Mechanism: Motor lift for effortless and accurate adjustment
  • Compatibility: CH-Plug for Swiss-compliant electrical systems
  • Display: Clear digital display for monitoring current values, with separate button to view set values
  • Controls: Two separate knobs for adjusting rotation speed and heating temperature, with LED ring light system indicating activity
  • Safety: Activated lock feature prevents inadvertent adjustments; residual heat indicator when temperature exceeds 50 °C
  • Standby Function: Stops all functions and lifts the evaporator flask out of the heating bath on motor lift models
  • Ergonomics: Heating bath handles are ergonomically optimized for a secure grip
  • Adjustability: Immersion depth adjustable up to 155 mm; tilt angle adjustable from 20° to 80°
  • Sealing Technology: Grease-free operation enabled by innovative sealing technology
  • Ventilation Cap: PTFE inlet and free of ground joints; optionally available with replenishment valve
  • Optional Accessories: Detachable operating panel for use outside closed fume hoods; optional cable extension

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

This Heidolph Rotary Evaporator provides high-quality, automated evaporation functionality to support reliable results in scientific and industrial laboratories.

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
Heating bath liquid AP 200 (WACKER) 220°C 5 Ltr.
Heidolph Heating Bath Liquid AP 200 (WACKER), 220°C, 5 Ltr
5 l+220 °C569-00600-004.652 675RM 9,080.50
Thermal Fluid Kryo30 canister 20 l, for Hei-CHILL Chiller (no dan. goods)
Heidolph Thermal Fluid Kryo30 Canister 20 L, for Hei-CHILL Chiller No DAN Goods
20 l+90 °C569-00610-009.812 665RM 7,436.00

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
Evaporator flask 3000 ml NS 29/32
Heidolph Evaporator Flask, 3000 ml NS 29/32
3000 ml41104800514-76300-007.047 224RM 1,551.00
Evaporator Flask 2000 ml NS 29/32
Heidolph Evaporator Flask, 2000 ml NS 29/32
2000 ml41104800514-75000-007.047 223RM 940.50
Evaporator Flask 250 ml NS 29/32
Heidolph Evaporator Flask, 250 ml NS 29/32
250 ml41104800514-72000-007.047 221RM 676.50
Evaporator Flask 500 ml NS 29/32
Heidolph Evaporator Flask, 500 ml NS 29/32
500 ml41104800514-73000-007.047 222RM 737.00
Evaporating flask 5000 ml NS 29/32
Heidolph Evaporating Flask, 5000 ml NS 29/32
5000 ml41104800514-78000-007.626 949RM 2,546.50
Evaporator Flask 100 ml NS 29/32
Heidolph Evaporator Flask, 100 ml NS 29/32
100 ml41104800514-71000-007.047 220RM 671.00
Evaporating flask 50 ml with NS 14/23 incl. transition piece and clamp
Heidolph Evaporating Flask, 50 ml, with NS 14/23 including Transition Piece and Clamp
50 ml41104800514-70000-006.206 660RM 990.00
Evaporator flask 1000ml NS 29/32 for glass set V1 and V1/B
Heidolph Evaporator Flask, 1000ml NS 29/32 for Glass Set V1 and V1/B
1000 ml41104800514-74000-007.047 172RM 880.00

Compare similar models

Rotary Evaporator Hei-VAP Core ML G5-CH motor lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G5-CH Motor Lift (CH-Plug)

RM 33,434.50

Inc. GST

Manufacturer P/N

572-01500-04

Part Number

4.666 140

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G5B motor lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G5B, Motor Lift (EU-Plug)

RM 36,129.50

Inc. GST

Manufacturer P/N

572-01510-00

Part Number

4.666 103

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G5 motor lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G5, Motor Lift (EU-Plug)

RM 33,434.50

Inc. GST

Manufacturer P/N

572-01500-00

Part Number

4.666 098

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G5-UK motor lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G5-UK Motor Lift (UK-Plug)

RM 33,434.50

Inc. GST

Manufacturer P/N

572-01500-03

Part Number

4.666 120

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G5B-UK motor lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G5B-UK Motor Lift (UK-Plug)

RM 36,129.50

Inc. GST

Manufacturer P/N

572-01510-03

Part Number

4.666 125

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G5B-CH Motor lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G5B-CH Motor Lift (CH-Plug)

RM 36,129.50

Inc. GST

Manufacturer P/N

572-01510-04

Part Number

4.666 145

Manufacturer

Heidolph

Glassware

Coated

More items to explore

Rotary Evaporators Hei-VAP Core, with hand lift, cold trap

ProductPlug typeTypeMfr#Part#AvailabilityPrice
Rotary Evaporator Hei-VAP Core HL G5B hand lift (EU-Plug)
Heidolph Rotary Evaporator Hei-VAP Core HL G5B Hand Lift (EU-Plug)
EUG5B571-01510-004.666 093RM 34,529.00
Rotary Evaporator Hei-VAP Core HL G5B-UK hand lift (UK-Plug)
Heidolph Rotary Evaporator Hei-VAP Core HL G5B-UK Hand Lift (UK-Plug)
UKG5B571-01510-034.666 115RM 34,529.00
Rotary Evaporator Hei-VAP Core HL G5-UK hand lift (UK-Plug)
Heidolph Rotary Evaporator Hei-VAP Core HL G5-UK Hand Lift (UK-Plug)
UKG5571-01500-034.666 110RM 31,839.50
Rotary Evaporator Hei-VAP Core HL G5-CH hand lift (CH-Plug)
Heidolph Rotary Evaporator Hei-VAP Core HL G5-CH Hand Lift (CH-Plug)
CHG5571-01500-044.666 130RM 31,839.50
Rotary Evaporator Hei-VAP Core HL G5B-CH hand lift (CH-Plug)
Heidolph Rotary Evaporator Hei-VAP Core HL G5B-CH Hand Lift (CH-Plug)
CHG5B571-01510-044.666 135RM 34,529.00
Rotary Evaporator Hei-VAP Core HL G5 hand lift (EU-Plug)
Heidolph Rotary Evaporator Hei-VAP Core HL G5 Hand Lift (EU-Plug)
EUG5571-01500-004.666 088RM 31,839.50

Rotary Evaporators Hei-VAP Core Basic Package

ProductPlug typeTypeMfr#Part#AvailabilityPrice
Hei-VAP Core set Basic Hei-VAP Core HL G3, vacuum pump Rotavac Valve Tec Tubing set
Heidolph Hei-VAP Core Set Basic Hei-VAP Core HL G3, Vacuum Pump Rotavac Valve Tec, Tubing Set
EUHei-VAP Core Basic571-34300-004.669 055RM 45,413.50
Hei-VAP Basic Package CH-plug
Heidolph Scientific Hei-VAP Basic Package CH-plug
CHHei-VAP Core Basic571-34300-044.703 311RM 45,413.50
Hei-VAP Basic Package UK-plug
Heidolph Scientific Hei-VAP Basic Package UK-plug
UKHei-VAP Core Basic571-34300-034.703 310RM 45,413.50
