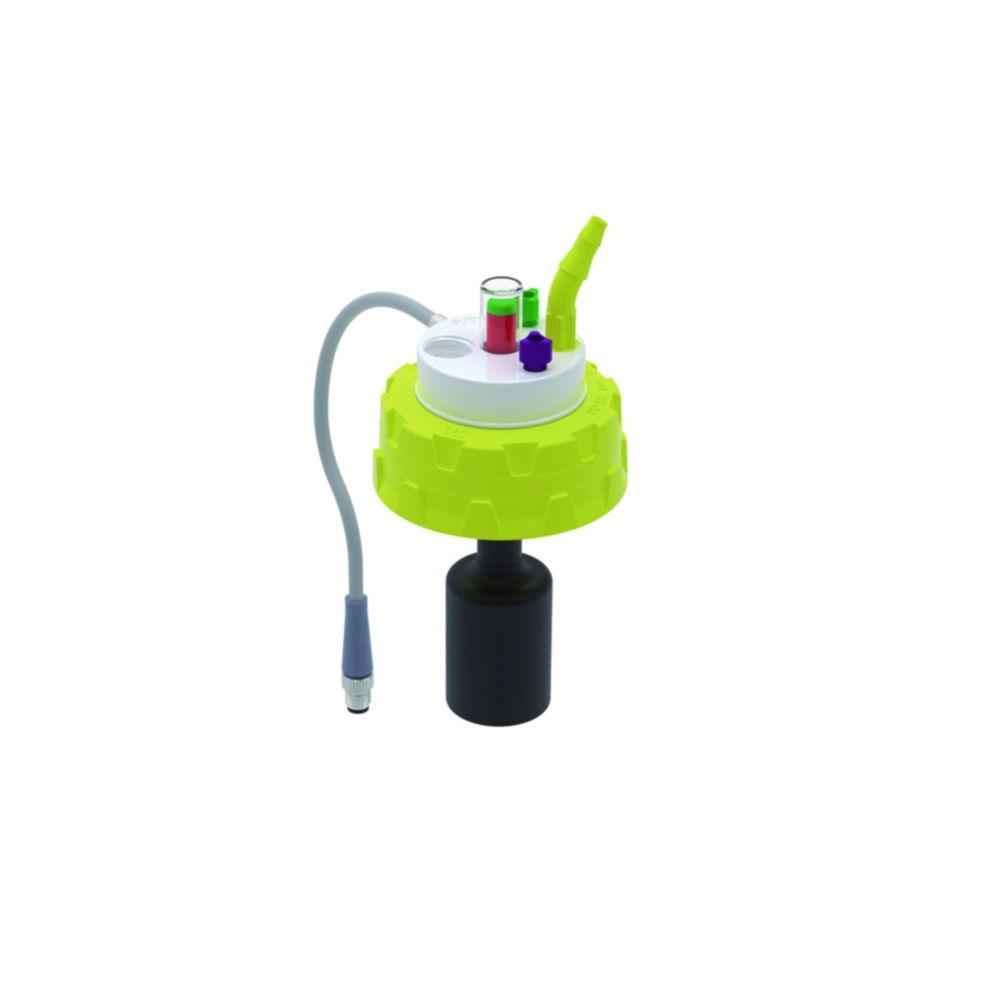

Bohlender b.safe Waste Cap S60 Electronic Fill-Level Control 2x UNF1/4", 1x GL14, 1x NPT1/8", Thread S 60

The Bohlender b.safe Waste Cap S60 Electronic Fill-Level Control offers an advanced solution for waste management in laboratory environments. Featuring high-quality connections including 2x UNF1/4"", 1x GL14, and 1x NPT1/8"", this cap is designed for efficient waste control. It incorporates a free movable PTFE insert for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives suitable for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the GL14 thread (filter not included). The waste cap includes a permanently mounted 400 mm cable to connect to the b.safe display for electronic fill-level monitoring, complemented by a red indicator pin for visual fill-level checks. Optionally, it can be equipped with a grounding connection (grounding cable sold separately) to ensure safe operation in sensitive environments.

Key Features:

• Brand: Bohlender
• Connections: 2x UNF1/4"", 1x GL14, 1x NPT1/8""
• Electronic Fill-Level Control: Permanently mounted cable for b.safe display connection and red visual indicator pin
• Material: Durable construction with free movable PTFE insert
• Optional Feature: Grounding connection available (grounding cable sold separately)
• Application: Ideal for laboratory waste management and precise level monitoring

Scope of Supply:

• Fittings (UNF 1/4"")
• Blind fittings (UNF 1/4"")
• Hose olive (NPT 1/8"")

This waste cap is a reliable and efficient tool for laboratories requiring precise fill-level control and secure waste management solutions.

Frequently Asked Questions

1. What is the Bohlender b.safe Waste Cap S60 Electronic Fill-Level Control 2x UNF1/4", 1x GL14, 1x NPT1/8", Thread S 60 used for?

It offers an advanced solution for waste management in laboratory environments. Featuring high-quality connections including 2x UNF1/4", 1x GL14, and 1x NPT1/8", this cap is designed for efficient waste control. It incorporates a free movable PTFE insert for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives suitable for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the GL14 thread (filter not included). The waste cap includes a permanently mounted 400 mm cable to connect to the b.safe display for electronic fill-level monitoring, complemented by a red indicator pin for visual fill-level checks. Optionally, it can be equipped with a grounding connection (grounding cable sold separately) to ensure safe operation in sensitive environments.

2. Is this product suitable for laboratory waste management and precise level monitoring?

Yes. It is designed for laboratory waste management and precise level monitoring, and offers connections of 2x UNF1/4", 1x GL14, 1x NPT1/8" to support this kind of work.

3. What connections does this product have?

It has connections of 2x UNF1/4", 1x GL14, 1x NPT1/8".

4. What is this product made from and what features does it include?

It is made from durable construction with free movable PTFE insert. It also offers permanently mounted cable for b.safe display connection and red visual indicator pin, grounding connection available (grounding cable sold separately) and fittings (UNF 1/4").
