Representative image only

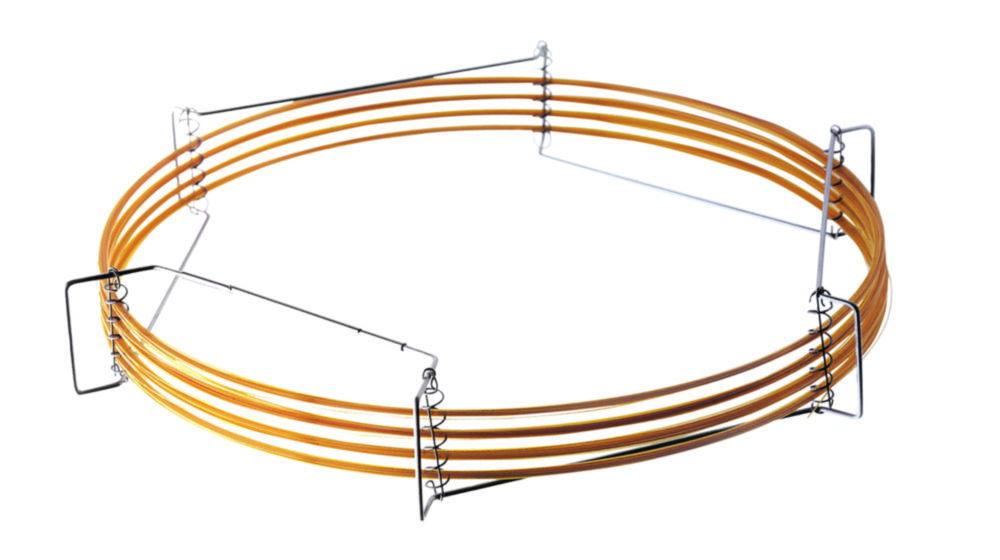

Trajan Scientific Capillary Column GC BP20 0.53mm ID x 1µm x 15m Length
Sold by: Analisa Resources
Available Soon
Part #: 4.682 403Manufacturer #: 054450
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Trajan Scientific Capillary Column GC BP20 is a high-polarity polyethylene glycol (PEG) phase column, ideal for separating alcohols, free acids, fatty acid methyl esters, aromatics, solvents, and essential oils. With a 0.53 mm internal diameter, 1.0 µm film thickness, and 15 m length, it delivers excellent resolution and reproducibility for complex mixtures.
Key Features:
- Brand: Trajan Scientific
- Phase: BP20 (Polyethylene Glycol)
- Dimensions: 0.53 mm ID × 1.0 µm film thickness × 15 m length
- Temperature Range: 20 °C to 260/280 °C
- Applications: Ideal for analyzing alcohols, free acids, fatty acid methyl esters, aromatics, solvents, and essential oils
This column is essential for laboratories requiring precise and reliable gas chromatographic analyses.
Product Specifications
- HS Code #84799070
- Film thickness1.00 µm
- Int. Ø0.53 mm
- Length15 m
- Max. temperature programme280 °C
- PolarityPolar
- Temperature max. isotherm260 °C
Variant products
Products related to this item (26)
product | Mfr # | Part # | Product name | Max. temperature programme | Temperature max. isotherm | Price | Availability | |
054431 | 6.206 834 | Trajan Scientific Capillary Column BP20 50 m x 0.32 mm ID Gauge 0.25 µm | 280 °C | 260 °C | 8,354.50 | |||
054433 | 6.900 493 | Trajan Scientific Capillary Column BP20 30 m x 0.32 mm ID Gauge 0.25 µm | 280 °C | 260 °C | 4,680.50 | |||
054427 | 6.230 596 | Trajan Scientific Capillary Column BP20 30 m x 0.25 mm ID Film Thickness 0.25 µm | 280 °C | 260 °C | 4,185.50 | |||
054436 | 6.225 210 | Trajan Scientific Capillary Column BP20 25 m x 0.32 mm ID Gauge 0.5 µm | 280 °C | 260 °C | 4,680.50 | |||
054437 | 6.205 313 | Trajan Scientific Capillary Column BP20 50 m x 0.32 mm ID Gauge 0.5 µm | 280 °C | 260 °C | 8,354.50 | |||
054405 | 4.682 389 | Trajan Scientific Capillary Column GC BP20 0.1mm ID x 0.1µm x 0m Length | 280 °C | 260 °C | 2,596.00 | |||
054421 | 6.317 542 | Trajan Scientific Capillary Column BP20 25m x 0.22mm ID, Film Thickness 0.25µm | 280 °C | 260 °C | 4,389.00 | |||
054424 | 4.682 391 | Trajan Scientific Capillary Column GC BP20 0.22mm ID x 0.25µm x 30m Length | 280 °C | 260 °C | 4,389.00 | |||
054422 | 6.318 016 | Trajan Scientific Capillary Column GC BP20 0.22mm ID x 0.25µm x 50m Length | 280 °C | 260 °C | 7,524.00 | |||
054425 | 4.682 392 | Trajan Scientific Capillary Column GC BP20 0.22mm ID x 0.25µm x 60m Length | 280 °C | 260 °C | 7,942.00 | |||
054428 | 4.682 393 | Trajan Scientific Capillary Column GC BP20 0.32mm ID x 0.25µm x 60m Length | 280 °C | 260 °C | 7,034.50 | |||
054415 | 4.682 390 | Trajan Scientific Capillary Column GC BP20 0.25mm ID x 0.5µm x 30m Length | 280 °C | 260 °C | 4,185.50 | |||
054458 | 4.682 408 | Trajan Scientific Capillary Column GC BP20 0.25mm ID x 0.5µm x 60m Length | 280 °C | 260 °C | 7,524.00 | |||
054439 | 4.682 396 | Trajan Scientific Capillary Column GC BP20 0.25mm ID x 1µm x 30m Length | 280 °C | 260 °C | 4,185.50 | |||
054434 | 4.682 394 | Trajan Scientific Capillary Column GC BP20 0.32mm ID x 0.25µm x 60m Length | 280 °C | 260 °C | 7,942.00 | |||
054438 | 4.682 395 | Trajan Scientific Capillary Column GC BP20 0.32mm ID x 0.5µm x 30m Length | 280 °C | 260 °C | 4,598.00 | |||
054457 | 4.682 407 | Trajan Scientific Capillary Column GC BP20 0.32mm ID x 0.5µm x 60m Length | 280 °C | 260 °C | 7,524.00 | |||
054442 | 4.682 398 | Trajan Scientific Capillary Column GC BP20 0.32mm ID x 1µm x 25m Length | 280 °C | 260 °C | 4,807.00 | |||
054444 | 4.682 400 | Trajan Scientific Capillary Column GC BP20 0.32mm ID x 1µm x 30m Length | 280 °C | 260 °C | 4,680.50 | |||
054443 | 4.682 399 | Trajan Scientific Capillary Column GC BP20 0.32mm ID x 1µm x 50m Length | 280 °C | 260 °C | 8,354.50 | |||
054445 | 4.682 401 | Trajan Scientific Capillary Column GC BP20 0.32mm ID x 1µm x 60m Length | 280 °C | 260 °C | 7,942.00 | |||
054440 | 4.682 397 | Trajan Scientific Capillary Column GC BP20 0.53mm ID x 0.5µm x 30m Length | 280 °C | 260 °C | 5,016.00 | |||
054448 | 4.682 402 | Trajan Scientific Capillary Column GC BP20 0.53mm ID x 1µm x 25m Length | 280 °C | 260 °C | 5,230.50 | |||
054451 | 4.682 404 | Trajan Scientific Capillary Column GC BP20 0.53mm ID x 1µm x 30m Length | 280 °C | 260 °C | 5,230.50 | |||
0544515 | 4.682 405 | Trajan Scientific Capillary Column GC BP20 0.53mm ID x 1µm x 60m Length | 280 °C | 260 °C | 7,881.50 | |||
054456 | 4.682 406 | Trajan Scientific Capillary Column GC BP20 0.53mm ID x 2µm x 25m Length | 260 °C | 240 °C | 5,230.50 |
Just add items to your shopping cart and select “Instant Quote”
