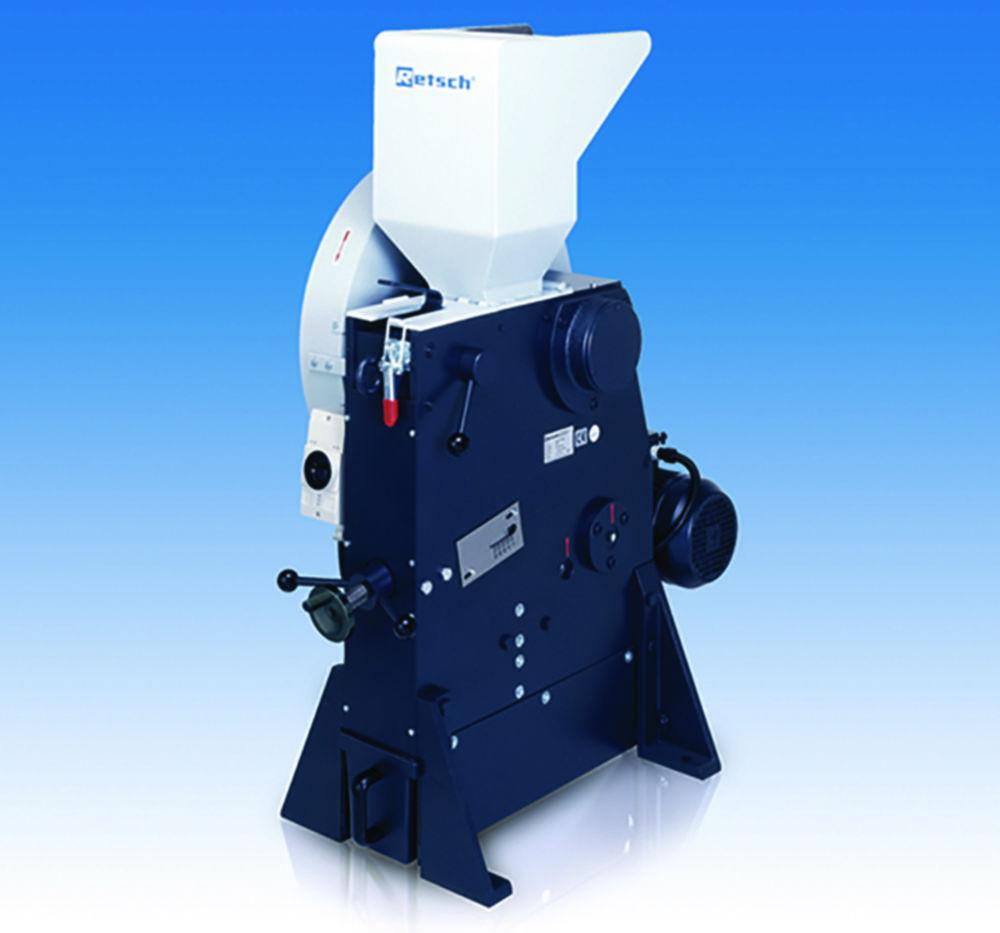

Retsch Jaw Crusher BB 200 3x400V, 50 Hz, Wedge Blades from Manganese Steel
Representative image only

Retsch Jaw Crusher BB 200 3x400V, 50 Hz, Wedge Blades from Manganese Steel

Sold by: Analisa Resources
Available Soon
Part #: 9.519 120Manufacturer #: 20.053.0001
Estimated shipping time:Contact us via live chat or via contact us page

RM 163,091.50

See the available (1) variant product
Product overview

The Retsch Jaw Crusher BB 200 is a high-performance crusher, designed for efficient and fast crushing of materials. Featuring a 3x400V, 50 Hz power supply and durable wedge blades made from manganese steel, this jaw crusher ensures superior strength and long-lasting performance. Ideal for crushing hard and brittle materials, the BB 200 is commonly used in laboratories and industrial settings for materials like ores, minerals, and rocks. Its robust design guarantees reliable operation even under heavy-duty conditions.

Key Features:

  • Brand: Retsch
  • Voltage: 3x400V, 50 Hz for stable operation
  • Material: Wedge blades made from high-quality manganese steel for durability
  • Functionality: Designed for fast and efficient crushing of hard, brittle materials
  • Applications: Ideal for laboratory and industrial material crushing, including ores, minerals, and rocks
  • Ease of Use: User-friendly design with simple operation and easy maintenance

The Retsch Jaw Crusher BB 200 delivers high crushing efficiency and is a dependable solution for reducing materials to the desired particle size. It is engineered to provide consistent results, ensuring the accuracy and reliability of your crushing tasks.

Product Specifications
  • HS Code #84742000
  • Depth900 mm
  • Dimensions (WxDxH)450 x 900 x 1,160 mm
  • Power supply frequency50 Hz
  • Height1160 mm
  • IP codeIP 54
  • Material grinding toolsManganese steel
  • Max. feed particle size length90 mm
  • Max. feed particle size width90 mm
  • Max. final fineness2 mm
  • Max. throughput300 kg/h
  • Max. voltage400 V·3/N/PE
  • Nominal volume collecting vessel5000 ml
  • Plug typeEU
  • Power supply400 V·3/N/PE, 50 Hz
  • Rated capacity1500 W
  • TypeBB 200
  • Type of auxiliary energyMains connection
  • Weight300 kg
  • Width450 mm
Downloads
  • Restch Jaw Crusher BB 100 Instruction ManualDownload
  • Restch Jaw Crusher BB 200 Instruction ManualDownload
  • Restch Jaw Crusher BB 300 Instruction ManualDownload
