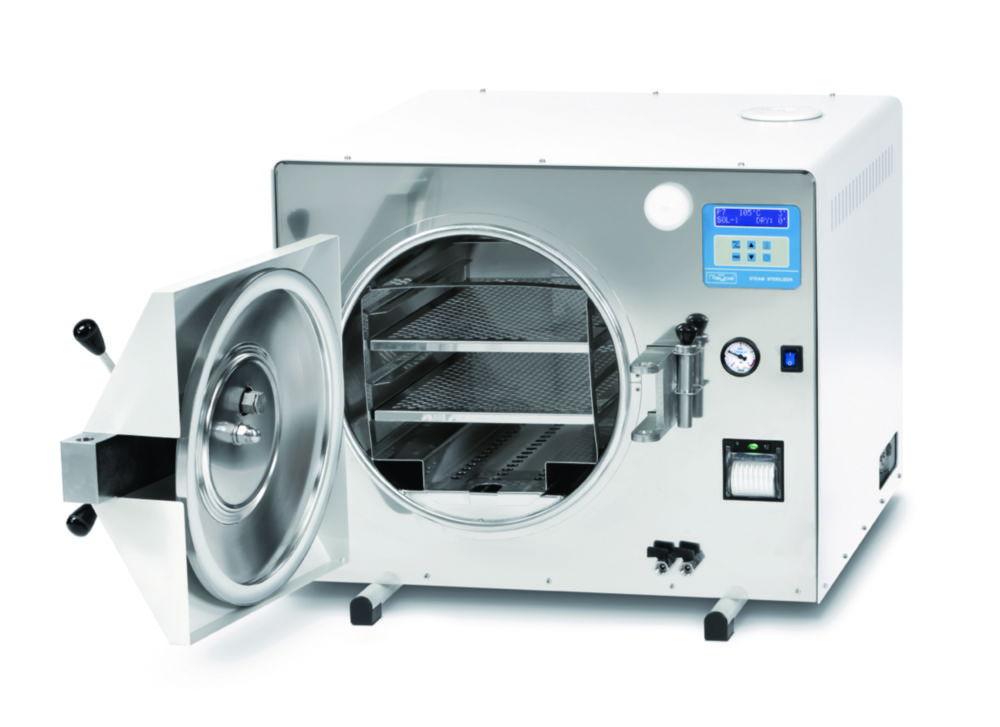

Automatic autoclaves AHS-75-DRY
Representative image only

Automatic autoclaves AHS-75-DRY

Sold by: Analisa Resources
Available Soon
Part #: 9.851 888Manufacturer #: AHS-75-DRY
Estimated shipping time:Contact us via live chat or via contact us page
See the available (2) variant products

Product overview

This autoclave is microprocessor controlled and monitored with 10 sterilisation programmes of which 4 are fixed and 6 are freely selectable and has bacteriological filters included by default.
  • Operating temperature range 100 °C to 134 °C
  • On request, also available with B Class
  • RS 232 interface
  • Fully automatic functions
  • With water reservoir, pre-vacuum and drying
  • Case and lid shrouding are AISI 304 stainless steel
  • Sterilisation chamber, lid and sealing system are AISI 316 stainless steel
  • Electrical heating with protected heating elements
  • Safety pressure valve
  • Safety thermostat
  • Automatic steam controlled by Touch Screen microprocessor
  • Manual valves for emptying the sterilisation chamber and for draining steam
  • Equipped with mesh stand on the chamber base and trays
  • Supply requirements: 230 V 16 A single phase

Product Specifications

  • HS Code #84192000
  • Depth int.600 mm
  • Dim. Int. (Ø x H)360 x 600 mm
  • Ext. dim. (WxDxH)805 x 1,005 x 650 mm
  • Ext. depth1005 mm
  • Ext. height650 mm
  • Ext. width805 mm
  • Power supply frequency50/60 Hz
  • Heating capacity3200 W
  • Int. Ø360 mm
  • LoadingHorizontal
  • Material housingStainless steel
  • Material interiorStainless steel
  • Max. temperature134 °C
  • Max. voltage230 V
  • Min. temperature100 °C
  • Nominal capacity75 l
  • Power supply230 V, 50/60 Hz
  • Temperature100 ... 134 °C
  • TypeAHS-75 DRY
  • Type of auxiliary energyMains connection
  • Weight126 kg
