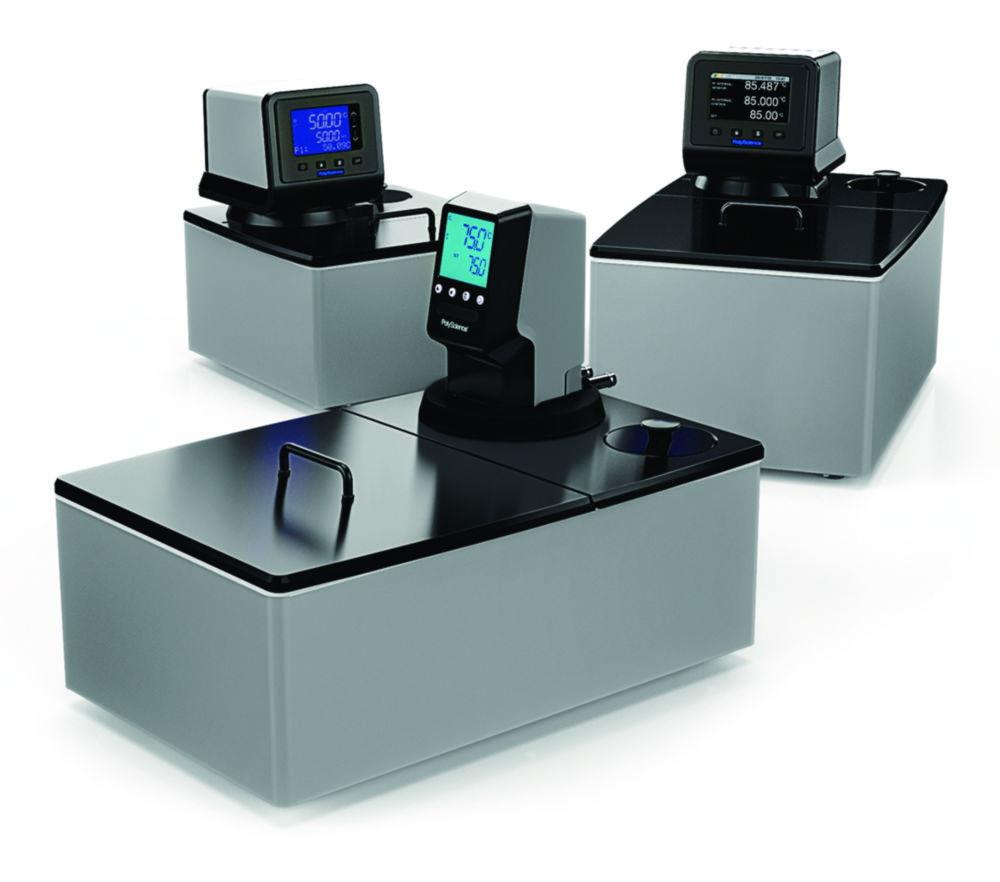

Representative image only
Bath thermostat with stainless steel bath 6L, Advanced Programmable, +10...150°C, 240V, 50Hz
Sold by: Analisa Resources
Available Soon
Part #: 4.658 639Manufacturer #: AP06S150-A12E
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
Bath system with Advanced Programmable (AP) temperature controller. Controller bridge rests securely on the bath tank, but can be easily removed for cleaning. The generous bath opening provides direct access to the samples.
- Intuitive 4.3" SmartTouch display
- Large 180° rotatable Swivel 180™ display
- Pressure/suction pump with variable speed and external circulation capability in open and closed control loops
- USB, Ethernet, RS-232/RS-485 interface
- Connection for external Pt100 temperature sensor
- OpenMode time/temperature programming
- Event scheduling (time and date) with real-time clock
- 11 languages selectable
- Review temperature trends for up to 10 days
- Multiple selectable ‘home’ screens
- Automatic and/or user adjustable performance optimisation
- 10-point calibration capability
- Class I (NFL) acc. to DIN 12876-1
Product Specifications
- HS Code #84198998
- Depth opening110 mm
- Opening (WxD)100 x 110 mm
- Ext. dim. (WxDxH)340 x 206 x 378 mm
- Ext. depth206 mm
- Ext. height378 mm
- Ext. width340 mm
- Power supply frequency50 Hz
- Heating capacity2200 W
- Material bathStainless steel
- Max. delivery pressure0.25 bar
- Max. suction capacity12.2 l/min
- Max. temperature150 °C
- Max. voltage240 V
- Max. volume bath6 l
- Min. temperature+10 °C
- Power supply240 V, 50 Hz
- ProgrammableYes
- Temperature stability±0,005 °C
- TemperatureRT
- TemperatureRT+10 ... 150 °C
- Type of auxiliary energyMains connection
- Type of displayLCD
- Volume bath6 l
- Width opening100 mm
- With lidYes
- With timerYes
- Manufacturer Article NumberAP06S150-A12E
