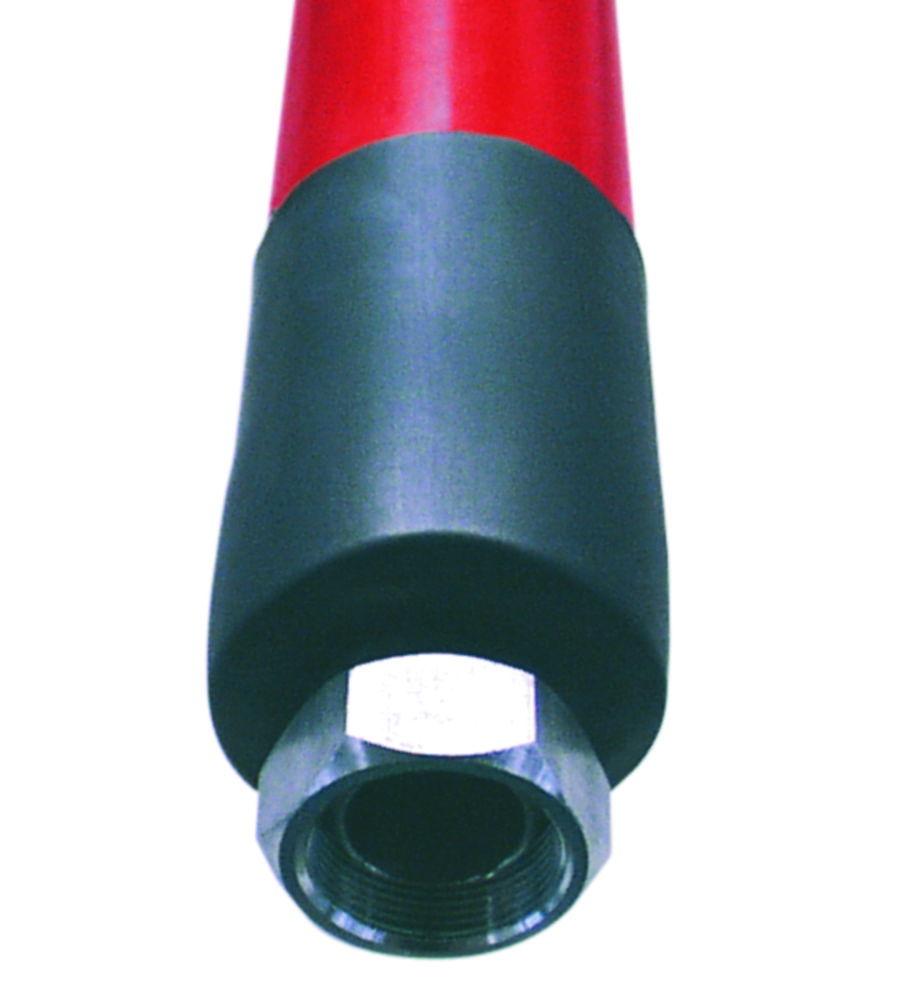

Peter Huber Hose Connection Tubing K-260-1.5-M24x1.5 Plastic, 150cm

The Peter Huber Hose Connection Tubing K-260-1.5-M24x1.5 is a high-performance industrial plastic hose designed for precision thermoregulation in demanding laboratory and industrial environments. This 150cm (1.5 meters) tubing is engineered with integrated braiding for enhanced structural stability and features specialized thermal insulation to maintain process efficiency and protect users from extreme surface temperatures. Encased in a smooth silicone outer cover with ends secured by silicone caps, this hose provides a durable, easy-to-clean solution for connecting high-capacity temperature control units to reactors and other external applications.

Key Features:

• Brand: Peter Huber
• Temperature Range: Engineered for extreme conditions from -60°C to +260°C
• Material: Industrial plastic material with integrated braiding for high pressure resistance
• Connection: M24x1.5 thread (Ball socket according to DIN 3863, sleeve nut according to DIN 3870)
• Length: 150 cm (1.5 meters)
• Pressure Resistance: Rated for a maximum pressure of 10 bar at 20°C and 6 bar at 260°C
• Insulation: Special thermal insulation with an additional smooth silicone outer hose and silicone end caps
• Nominal Width: DN 12 (Internal diameter: 12 mm)
• External diameter: 41 mm
• Safety Standards: Fire rating UL94-HB; test pressure of 1.25 bar

With a minimum bending radius of 150 mm, the K-260-1.5-M24x1.5 offers the necessary flexibility for versatile laboratory setups without compromising flow rates or safety. This hose is an essential accessory for Peter Huber high-performance systems, ensuring reliable and secure fluid transport during critical temperature control cycles while preventing energy loss through its high-quality insulation layer.

Frequently Asked Questions

1. What makes the M24x1.5 connection size unique?
M24x1.5 is a standard connection size for many mid-range Peter Huber Unistats and Unichillers. It offers a balance between compact size and high flow capacity, suitable for a wide range of reactor volumes.

2. How does the 150cm length improve lab efficiency?
The 1.5-meter length is the "sweet spot" for many laboratory setups, providing enough distance to bridge the gap between a floor-mounted chiller and a benchtop application while keeping the external fluid volume low for faster heating and cooling.

3. Why is the silicone outer cover beneficial in chemical labs?
The non-porous silicone surface is highly resistant to many laboratory chemicals and is far easier to decontaminate than standard fabric-braided hoses, which can trap spills and odors.

4. Can this hose be used with high-temperature silicone oils?
Yes, the K-260 series is specifically designed to handle the chemical and thermal demands of high-performance silicone oils up to its maximum rating of +260°C.

5. What safety features are integrated into the design?
Beyond thermal insulation, the hose features protective silicone end caps that prevent the internal insulation from fraying and shield the user from the metal connection nuts which can become extremely hot during operation.
