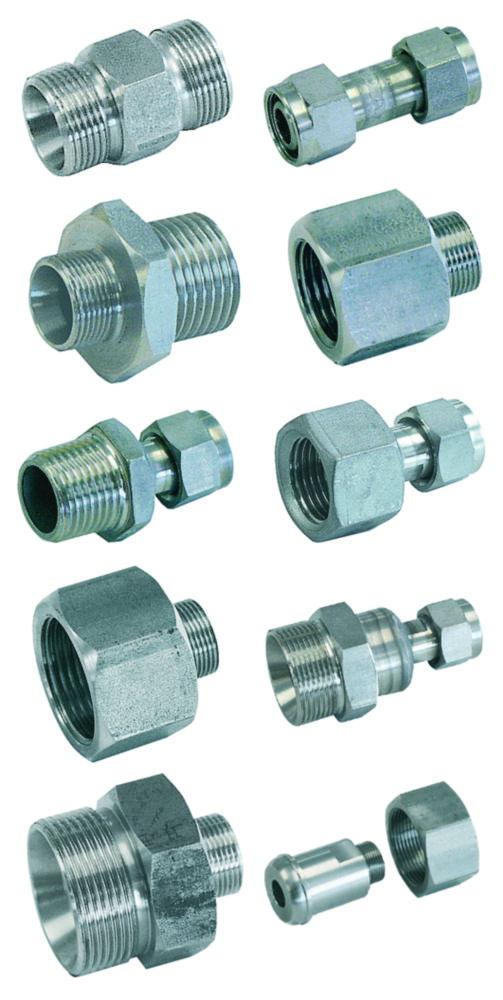

Peter Huber Adapter M24x1.5 Female to M30x1.5 Male

The Peter Huber 6723 is a precision-machined metric adapter designed to facilitate the integration of different thermoregulation standards within a single circulation loop. Featuring an M24x1.5 female threaded port and an M30x1.5 male threaded connection, this adapter serves as a critical interface for expanding or reducing flow paths between Huber Unistat systems, hoses, and external manifolds. Constructed from high-grade, chemical-resistant metal, it is engineered to provide a secure, leak-proof seal and maintain high-flow integrity across extreme temperature ranges from -120°C to +400°C.

Key Features:

• Brand: Peter Huber
• Thread A: M24x1.5 Female (Standard for medium-sized Huber Unistats/NW12)
• Thread B: M30x1.5 Male (Standard for larger Huber connections/NW20)
• Material: High-quality, thermally stable metallic construction
• Thermal Range: Suitable for the full operating spectrum of Huber high-performance systems
• Pressure Rating: Optimized for high-pressure industrial circulators and frequent thermal cycling
• Application: Connects M24 male components to M30 female hoses or unit outlets
• Compatibility: Perfectly fits Huber Unistat and CC series units requiring metric transitions

This adapter is essential for laboratories and pilot plants needing to adapt various generations of Huber equipment or non-matching hose sets. The precision-cut threads ensure a vibration-resistant fit, minimizing the risk of fluid loss even under significant thermal stress. Its robust design is built for industrial-grade reliability, ensuring the safety and efficiency of your high-performance thermoregulation circuit.

Frequently Asked Questions

1. Why would I use an M24 female to M30 male adapter?
This is typically used when you have an M24 male fitting (on a circulator or manifold) and need to connect it to a larger M30 female hose or a component with an M30 female swivel nut. It bridges the size gap between NW12 and NW20 standards.

2. Does this adapter restrict the flow of thermal fluid?
While there is a physical transition between the M30 and M24 diameters, the 6723 is designed with a smooth internal bore to minimize turbulence and maintain high-throughput efficiency required for precise temperature control.

3. Do I need an O-ring for the M24 side?
Yes. The M24x1.5 female side requires a compatible flat seal or O-ring to ensure a pressure-tight connection against the male M24 counterpart. Check your existing gaskets before installation.

4. Is it compatible with synthetic thermal fluids like DW-Therm?
Yes, the metallic construction is fully compatible with specialized synthetic fluids, silicone oils, and water-glycol mixtures used in Huber systems.

5. Can this be used for cryogenic applications?
Absolutely. The 6723 is rated for temperatures as low as -120°C, provided that the seals used in the connection are also rated for ultra-low temperature work.
