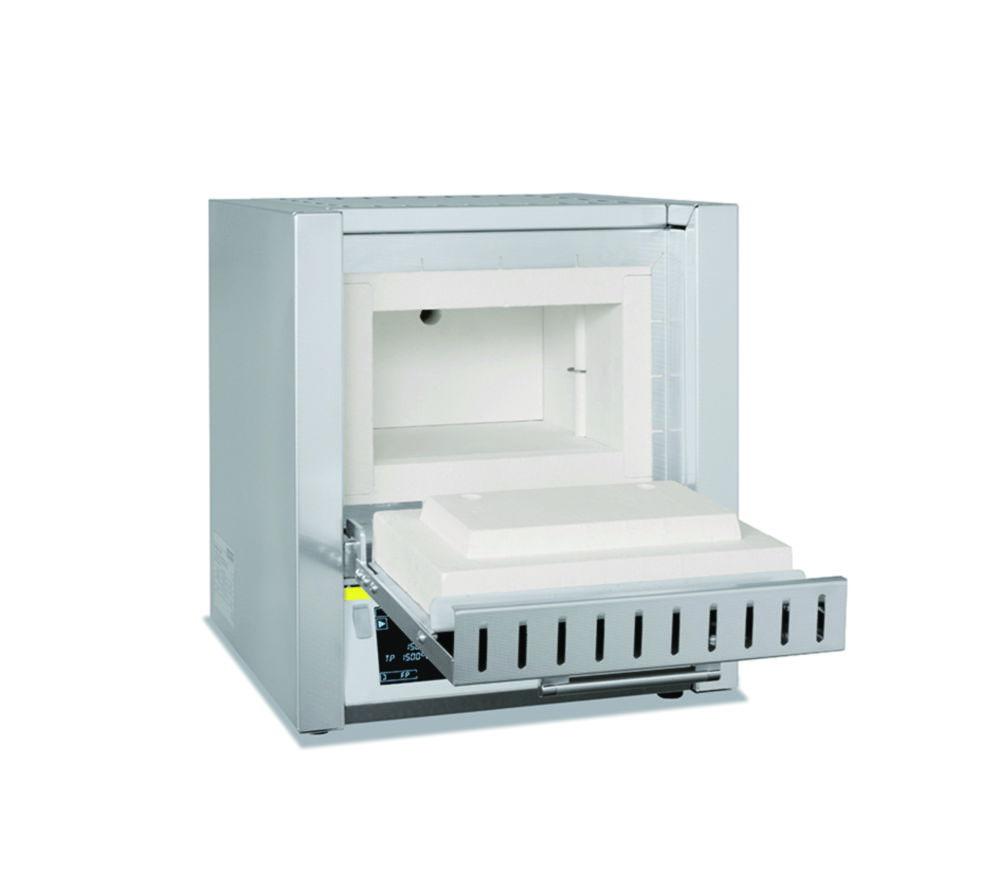

Nabertherm L 3/11/B510 Muffle Furnace, Tmax 1100°C, 3L Capacity
Product overview
The Nabertherm L 3/11/B510 Muffle Furnace is a compact and high-performance furnace designed for laboratory and industrial applications requiring precise heat treatment. With a maximum temperature of 1100°C, this furnace delivers reliable thermal processing, making it ideal for ashing, sintering, and material testing.
Key Features:
- Brand: Nabertherm
- Maximum Temperature: 1100°C
- Capacity: 3 liters
- Controller: B510 for precise temperature management
- Compact & Durable: Ideal for small-scale laboratory applications
- Applications: Heat treatment, ceramics, material research, and metallurgy
With its advanced technology and robust construction, the Nabertherm L 3/11/B510 Muffle Furnace is the perfect solution for laboratories and research facilities requiring reliable high-temperature performance.
Frequently Asked Questions
1. What is the Nabertherm L 3/11/B510 Muffle Furnace, Tmax 1100°C, 3L Capacity used for?
It is a compact and high-performance furnace designed for laboratory and industrial applications requiring precise heat treatment. With a maximum temperature of 1100°C, this furnace delivers reliable thermal processing, making it ideal for ashing, sintering, and material testing.
2. Is the Nabertherm L 3/11/B510 Muffle Furnace, Tmax 1100°C, 3L Capacity suitable for Heat treatment, ceramics, material research, and metallurgy?
Yes. It is designed for Heat treatment, ceramics, material research, and metallurgy, and offers a maximum temperature of 1100°C and a capacity of 3 liters to support this kind of work.
3. What maximum temperature and capacity does the Nabertherm L 3/11/B510 Muffle Furnace, Tmax 1100°C, 3L Capacity have?
It has a maximum temperature of 1100°C and a capacity of 3 liters, and is supplied under manufacturer part number L-035K1AL.
4. What controller and compact & durable does the Nabertherm L 3/11/B510 Muffle Furnace, Tmax 1100°C, 3L Capacity offer?
It offers B510 for precise temperature management, ideal for small-scale laboratory applications, ceramic heating plates with integrated heating wire, splash and exhaust protected, easy to replace and heating from two sides (three sides for interior volumes of 24 and 40 l).
5. How does the Nabertherm L 3/11/B510 Muffle Furnace, Tmax 1100°C, 3L Capacity compare with the Snoltherm Muffle Furnace SNOL 8.2/1100 LZM01 (Omron E5CC -T Controller) from SNOL?
For Heat treatment, ceramics, material research, and metallurgy, the Nabertherm model is the better choice, offering a maximum temperature of 1100°C and a capacity of 3 liters. The SNOL model offers a max temperature of 1100°C and a chamber volume of 8.2 liters as an alternative, while the Nabertherm model's B510 for precise temperature management and ideal for small-scale laboratory applications help make it a strong fit for Heat treatment, ceramics, material research, and metallurgy.
Product Specifications
- HS Code #85141980
- Depth int.140 mm
- Type of doorFlap door
- Ext. dim. (WxDxH)385 x 330 x 405 mm
- Ext. depth330 mm
- Ext. height405 mm
- Ext. width385 mm
- Power supply frequency50/60 Hz
- Height int.100 mm
- Int. Dim. (WxDxH)160 x 140 x 100 mm
- Int. width160 mm
- Max. temperature1100 °C
- Max. voltage230 V·1/N/PE
- Nominal capacity3 l
- Plug typeEU
- Power supply230 V·1/N/PE, 50/60 Hz
- Rated capacity1200 W
- TypeL 3/11/B510
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight20 kg
Downloads
- LabFriend 6.321 436 laboratory_english.pdfDownload
