Representative Image

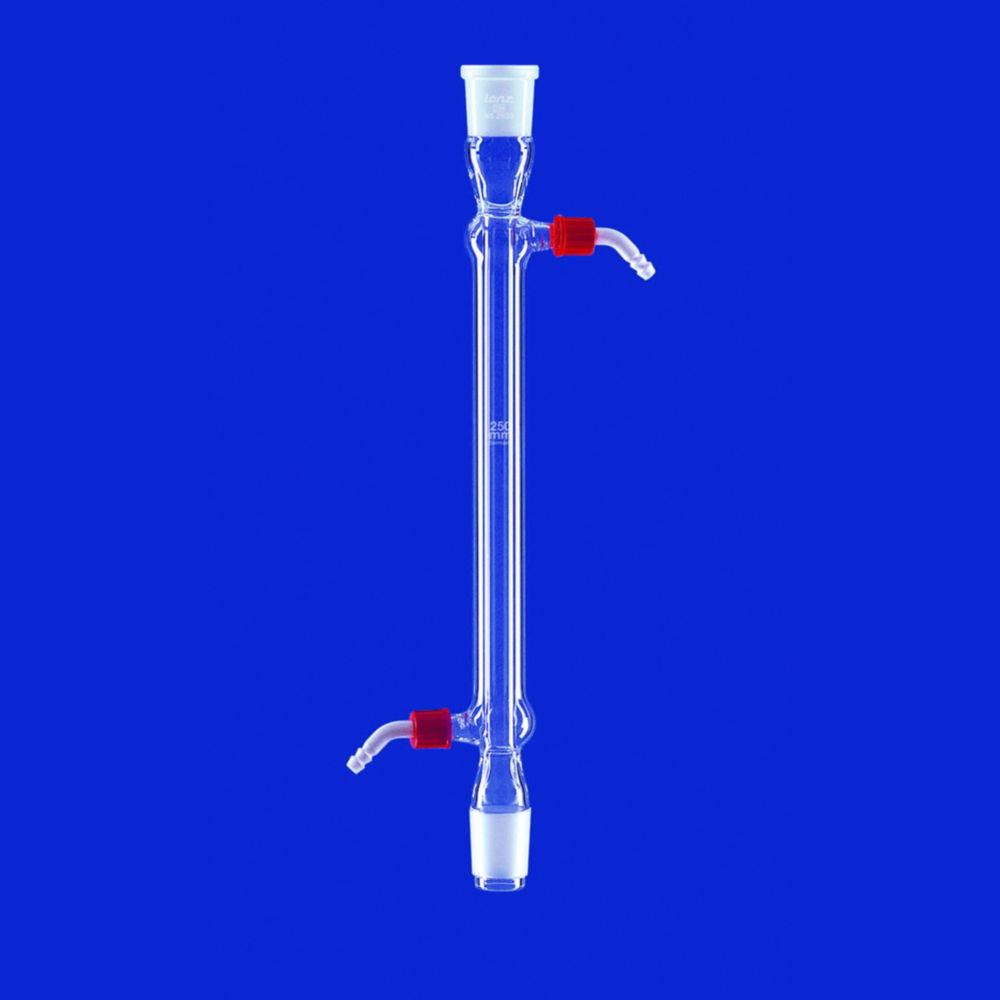

Lenz-Laborglas Liebig Condensers, Socket/Cone NS 29/32, Jacket Lmm 250

Brand:Lenz-Laborglas

Cooling surface

Ground size

Length jacket

Specifications

Compare models
Connection
Tube connection
Connection size
GL 14
Cooling surface
130 cm²
Ground size
NS 29/32
Length jacket
250 mm
Material
DURAN® tubing
Standard
DIN 12576
Type of construction
Liebig condenser
UNSPSC
41104814

Alternative in-stock items

RM 539.00

Inc. GST

Available soon

Product description

The Lenz-Laborglas Liebig Condensers, Socket/Cone NS 29/32, Jacket Lmm 250-2 are designed for efficient condensation in distillation processes. Made from high-quality Duran borosilicate glass, these condensers offer excellent resistance to thermal and chemical stresses. The jacketed design ensures optimal cooling efficiency, while the NS 29/32 socket and cone joint provide a secure fit for laboratory applications. Ideal for use in research and chemical laboratories, these condensers are a key component for distillation and cooling tasks.

Key Features:

  • Brand: Lenz-Laborglas
  • Material: High-quality Duran borosilicate glass for durability and chemical resistance
  • Design: Jacketed Liebig condenser with NS 29/32 socket and cone joint for secure connections
  • Application: Ideal for distillation, condensation, and cooling in laboratory procedures

This Liebig condenser is an essential laboratory tool for efficient cooling and condensation in distillation setups.

Accessories

Sleeves, cone joint, PTFE

ProductTemperature resistanceMaterialMfr#Part#AvailabilityPrice
Joint sleeves,PTFE,for NS 14/23
Bohlender Joint Sleeves PTFE For NS 14/23
-200 ... 250 °CPTFEH 933-039.011 642In stockRM 60.50
Joint sleeves,PTFE,for NS 29/32
Bohlender Joint Sleeves PTFE For NS 29/32
-200 ... 250 °CPTFEH 933-069.011 645In stockRM 77.00
Joint sleeves,PTFE,for NS 45/40
Bohlender PTFE Joint Sleeve for NS 45/40 Ground Joints
-200 ... 250 °CPTFEH 933-099.011 647In stockRM 247.50
Joint sleeves,PTFE,for NS 19/26
Bohlender PTFE Joint Sleeves for NS 19/26 Ground Glass Joints
-200 ... 250 °CPTFEH 933-049.011 643RM 82.50
Joint sleeves,PTFE,for NS 24/29
Bohlender Joint Sleeves PTFE for NS 24/29
-200 ... 250 °CPTFEH 933-059.011 644RM 99.00

Sleeves with ribs, PTFE

ProductTemperature resistanceMaterialMfr#Part#AvailabilityPrice
Joint sleeves,PTFE,for NS 14/23
Bohlender PTFE Joint Sleeve for NS 14/23 Ground Glass Joints
-200 ... 250 °CPTFEH 930-049.011 655In stockRM 22.00
Joint sleeves,PTFE,for NS 19/26
Bohlender PTFE Joint Sleeve for NS 19/26 Ground Glass Joints
-200 ... 250 °CPTFEH 930-059.011 656In stockRM 27.50
Joint sleeves,PTFE,for NS 24/29
Bohlender PTFE Joint Sleeve for NS 24/29
-200 ... 250 °CPTFEH 930-069.011 657In stockRM 33.00
Joint sleeves,PTFE,for NS 29/32
Bohlender PTFE Joint Sleeve for NS 29/32 Ground Glass Joints
-200 ... 250 °CPTFEH 930-079.011 658In stockRM 33.00
Joint sleeves,PTFE,for NS 45/40
Bohlender PTFE Joint Sleeve for NS 45/40
-200 ... 250 °CPTFEH 930-109.011 660In stockRM 93.50
Joint sleeves,PTFE,for NS 10/19
Bohlender PTFE Joint Sleeve for NS 10/19 Ground Glass Joints
-200 ... 250 °CPTFEH 930-029.011 652In stockRM 60.50
Joint sleeves,PTFE,for NS 29/32 pack of 10
Bohlender PTFE Joint Sleeves for NS 29/32, Pack of 10
-200 ... 250 °CPTFEH 930-07 VE=104.667 522In stockRM 313.50
Joint sleeves,PTFE,for NS 45/40 pack of 5
Bohlender PTFE Joint Sleeves for NS 45/40, Pack of 5
-200 ... 250 °CPTFEH 930-10 VE=54.667 523In stockRM 462.00
Joint sleeves,PTFE,for NS 14/23 pack of 10
Bohlender PTFE Joint Sleeves for NS 14/23, Pack of 10
-200 ... 250 °CPTFEH 930-04 VE=104.667 519In stockRM 214.50
Joint sleeves,PTFE,for NS 12/21
Bohlender PTFE Joint Sleeves for NS 12/21
-200 ... 250 °CPTFEH 930-039.011 653In stockRM 55.00
Joint sleeves,PTFE,for NS 60/46
Bohlender Joint Sleeves PTFE for NS 60/46
-200 ... 250 °CPTFEH 930-139.011 661RM 407.00
Joint sleeves, PTFE, for NS 34/35
Bohlender Joint Sleeves PTFE for NS 34/35
-200 ... 250 °CPTFEH 930-089.011 659RM 93.50
Joint sleeves, PTFE, for NS 70/51
Bohlender Joint Sleeves PTFE for NS 70/51
-200 ... 250 °CPTFEH 930-149.011 662RM 621.50
Joint sleeves,PTFE,for NS 24/29 pack of 10
Bohlender PTFE Joint Sleeves for NS 24/29, Pack of 10
-200 ... 250 °CPTFEH 930-06 VE=104.667 521RM 308.00
Joint sleeves,PTFE,for NS 19/26 pack of 10
Bohlender PTFE Joint Sleeves for NS 19/26, Pack of 10
-200 ... 250 °CPTFEH 930-05 VE=104.667 520RM 253.00
Joint sleeves, PTFE, for NS 7/16
Bohlender Joint Sleeves PTFE for NS 7/16
-200 ... 250 °CPTFEH 930-019.011 651RM 44.00

Compare similar models

Liebig condensers, Socket/Cone NS 29/32 Jacket L.mm 250
Available soon
Lenz-Laborglas Liebig Condensers, Socket/Cone NS 29/32, Jacket Lmm 250

RM 539.00

Inc. GST

Manufacturer P/N

05210314

Part Number

9.012 505

Manufacturer

Lenz-Laborglas

Cooling surface

130 cm²

Liebig condensers, Socket/Cone NS 29/32 Jacket L.mm 400
Available soon
Lenz-Laborglas Liebig Condensers, Socket/Cone NS 29/32, Jacket Lmm 400

RM 566.50

Inc. GST

Manufacturer P/N

05210414

Part Number

9.012 506

Manufacturer

Lenz-Laborglas

Cooling surface

210 cm²

Liebig condensers, Socket/Cone NS 14/23 Jacket L.mm 160
Available soon
Lenz-Laborglas Liebig Condensers, Socket/Cone NS 14/23 Jacket L.mm 160

RM 456.50

Inc. GST

Manufacturer P/N

05210211

Part Number

9.012 502

Manufacturer

Lenz-Laborglas

Cooling surface

60 cm²

Liebig condensers, Socket/Cone NS 19/26 Jacket L.mm 160
Available soon
Lenz-Laborglas Liebig Condensers Socket/Cone NS 19/26 Jacket, 160 mm

RM 462.00

Inc. GST

Manufacturer P/N

05210212

Part Number

9.012 501

Manufacturer

Lenz-Laborglas

Cooling surface

90 cm²

Liebig condensers, Socket/Cone NS 14/23 Jacket L.mm 250
Available soon
Lenz-Laborglas Liebig Condensers, Socket/Cone NS 14/23, Jacket L. 250 mm

RM 462.00

Inc. GST

Manufacturer P/N

05210311

Part Number

9.012 503

Manufacturer

Lenz-Laborglas

Cooling surface

100 cm²

More items to explore

Condensers acc. to Allihn with GL threads, DURAN® tubing

ProductType of constructionMaterialMfr#Part#AvailabilityPrice
Allihn Condenser 250 mm, NS 29/32 with glass thread and 2 plastic olives
Lenz-Laborglas Allihn Condenser, 250 mm NS 29/32 with Glass Thread and 2 Plastic Olives
Allihn condenser (bulb condenser)DURAN® tubing052233149.012 517In stockRM 660.00
Allihn Condenser 400 mm, NS 29/32 with glass thread and 2 plastic olives
Lenz-Laborglas Allihn Condenser 400 mm, NS 29/32 with Glass Thread and 2 Plastic Olives
Allihn condenser (bulb condenser)DURAN® tubing052234149.012 515RM 627.00
Allihn Condenser 160 mm, NS 19/26 with glass thread and 2 plastic olives
Lenz-Laborglas Allihn Condenser 160 mm, NS 19/26 with Glass Thread and 2 Plastic Olives
Allihn condenser (bulb condenser)DURAN® tubing052232129.012 516RM 621.50
Allihn Condenser 250 mm, NS 14/23 with glass thread and 2 plastic olives
Lenz-Laborglas Allihn Condenser 250 mm, NS 14/23 with Glass Thread and 2 Plastic Olives
Allihn condenser (bulb condenser)DURAN® tubing052233116.251 366RM 715.00
Allihn Condenser 250 mm, NS 19/26 with glass thread and 2 plastic olives
Lenz-Laborglas Allihn Condenser 250 mm, NS 19/26 with Glass Thread and 2 Plastic Olives
Allihn condenser (bulb condenser)DURAN® tubing052233126.236 022RM 687.50
Allihn Condenser 160 mm, NS 29/32 with glass thread and 2 plastic olives
Lenz-Laborglas Allihn Condenser 160 mm, NS 29/32 with glass thread and 2 plastic olives
Allihn condenser (bulb condenser)DURAN® tubing052232149.012 518RM 687.50
Allihn Condenser 150 mm, NS 14/23 with glass thread and 2 plastic olives
Lenz-Laborglas Allihn Condenser 150 mm, NS 14/23 with Glass Thread and 2 Plastic Olives
Allihn condenser (bulb condenser)DURAN® tubing052232119.012 511RM 616.00
Allihn Condenser 400 mm, NS 24/29 with glass thread and 2 plastic olives
Lenz-Laborglas Allihn Condenser 400 mm, NS 24/29 with glass thread and 2 plastic olives
Allihn condenser (bulb condenser)DURAN® tubing052234136.255 373RM 797.50

Condensers acc. to Dimroth, with GL threads, DURAN® tubing

ProductType of constructionMaterialMfr#Part#AvailabilityPrice
Dimroth Condensers, Socket/Cone NS 29/32 Jacket L.mm 250
Lenz-Laborglas Dimroth Condenser, Jacket L: 250 mm NS 29/32
Dimroth condenserDURAN® tubing052403149.012 533In stockRM 599.50
Dimroth Condensers, Socket/Cone NS 29/32 Jacket L.mm 400
Lenz-Laborglas Dimroth Condenser, 400 mm, NS 29/32 with Glass Thread and 2 Plastic Olives
Dimroth condenserDURAN® tubing052404149.012 534In stockRM 759.00
Dimroth Condensers, Socket/Cone NS 14/23 Jacket L.mm 160
Lenz-Laborglas Dimroth Condensers, Socket/Cone NS 14/23, Jacket Length 160 mm
Dimroth condenserDURAN® tubing052402119.012 530RM 698.50
Dimroth Condensers, Socket/Cone NS 14/23 Jacket L.mm 250
Lenz-Laborglas Dimroth Condensers, Socket/Cone NS 14/23 Jacket L.mm 250
Dimroth condenserDURAN® tubing052403116.202 460RM 962.50
Dimroth Condensers, Socket/Cone NS 45/40 Jacket L.mm 250
Lenz-Laborglas Dimroth Condensers, Socket/Cone NS 45/40 Jacket L.mm 250
Dimroth condenserDURAN® tubing052403166.225 378RM 1,094.50

Frequently asked questions

It are designed for efficient condensation in distillation processes. Made from high-quality Duran borosilicate glass, these condensers offer excellent resistance to thermal and chemical stresses. The jacketed design ensures optimal cooling efficiency, while the NS 29/32 socket and cone joint provide a secure fit for laboratory applications. Ideal for use in research and chemical laboratories, these condensers are a key component for distillation and cooling tasks.
