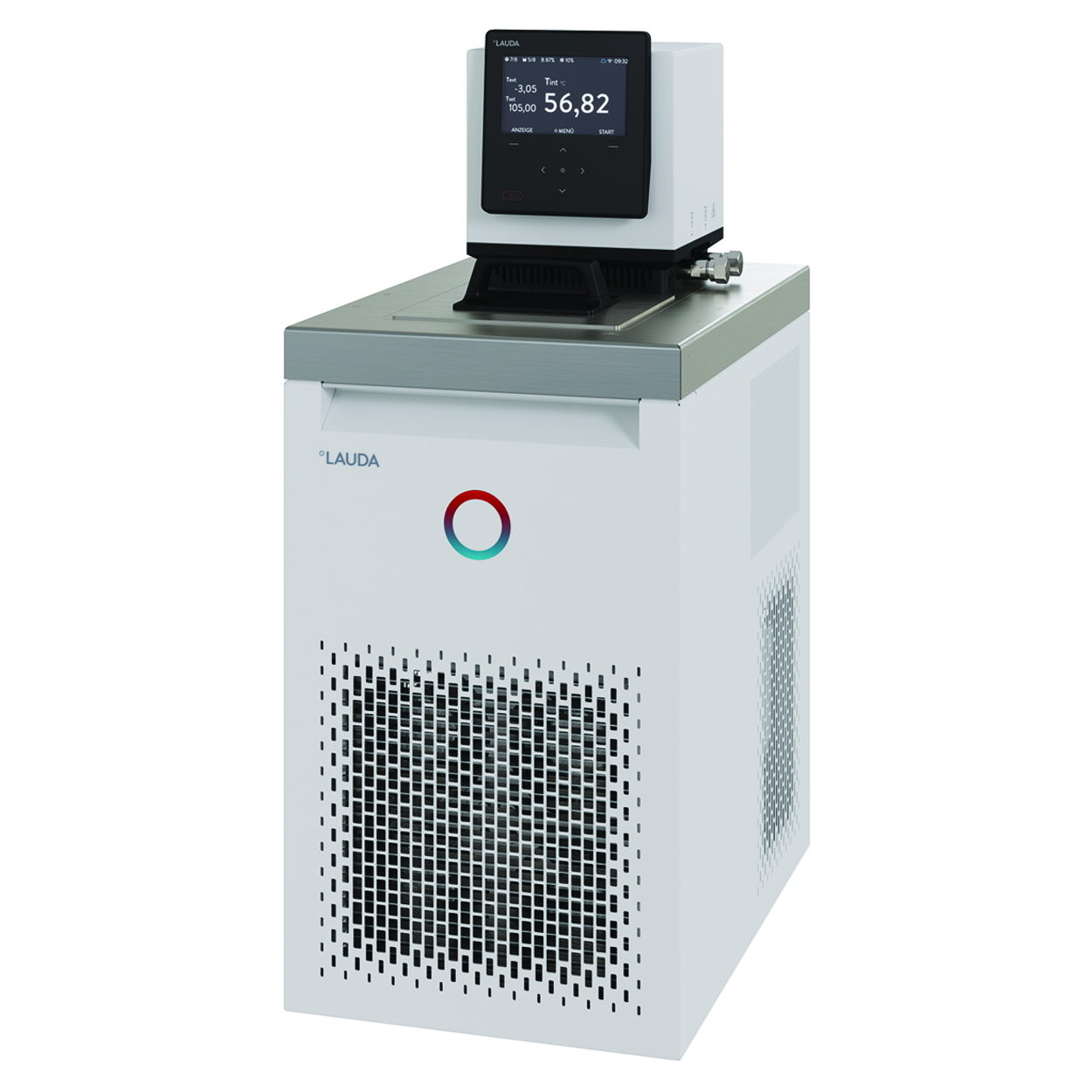

Representative Image

LAUDA Universa MAX U 845 M Cooling thermostat, 200-240 V; 50/60 Hz 21 Pump ball bearing mounted

Brand:Lauda

Cooling capacity at 20 °C

Depth opening

Opening (WxD)

Ext. dim. (WxDxH)

Ext. depth

Ext. height

Ext. width

Max. volume bath

Min. temperature

Min. volume bath

Temperature

Type

Volume bath

Weight

Width opening

Specifications

Compare models
Bath depth
200 mm
Cooling capacity at 20 °C
800 W
Depth opening
150 mm
Opening (WxD)
150 x 150 mm
Ext. dim. (WxDxH)
310 x 490 x 757 mm
Ext. depth
490 mm
Ext. height
757 mm
Ext. width
310 mm
Power supply frequency
50/60 Hz
Heating capacity
3.7 kW

RM 63,789.00

Inc. GST

Available soon

Product description

The cooling thermostat with advanced electronics ensures precise control accuracy and uniform temperature distribution. It can be used for internal and external temperature control tasks. The version with a ball-bearing pump guarantees safe operation with highly viscous and dense temperature control fluids, as well as with impurities in the temperature control bath. The innovative bath edge ventilation prevents icing and blocks condensate and vapours from entering the control head. The integrated web server allows flexible remote control within the company network via the LAUDA Command App or browser-based, secured by PKI and 2-factor authentication. The connection to LAUDA.LIVE enables cloud-based data analysis and remote maintenance.

  • Powerful pressure-suction pump with eight selectable performance levels

  • Front switch on the control head for adjusting the pump output during operation

  • Colour 5" TFT display with progression graph

  • Clear menu navigation in six languages and clear operating status icons

  • Integrated Ethernet and USB interface

  • Interface for an external Pt100 temperature probe

  • With programmer, safe mode, calibration options, controller self-adaptation, and weekly scheduler for process control

  • Effective over- and under-level protection

  • Adjustable overtemperature protection with acoustic alarm

  • Automatic system diagnostics at start-up with alarm and error message display

  • Smart temperature control media management with automatic limit value adjustment

  • Tmax button allows direct access to overtemperature protection setting

  • Refrigeration system automatically adjusts cooling capacity to the requirements

  • Speed-controlled inverter compressor and fan minimise energy consumption

  • Use of natural refrigerants for sustainable and environmentally conscious cooling

  • Pump connection M16x1

  • Safety class III/FL

Compare similar models

LAUDA Universa MAX U 845 M Cooling thermostat, 200-240 V; 50/60 Hz 21 Pump ball bearing mounted

Manufacturer P/N

L004151

Part Number

4.713 320

Manufacturer

Lauda

Cooling capacity at 20 °C

800 W

LAUDA Universa MAX U 890 M Cooling thermostat, 200-240 V; 50/60 Hz 21 Pump ball bearing mounted

Manufacturer P/N

L004153

Part Number

4.713 332

Manufacturer

Lauda

Cooling capacity at 20 °C

800 W

LAUDA Universa MAX U 1645 M Cooling thermostat, 200-240 V; 50/60 Hz 21 Pump ball bearing mounted

Manufacturer P/N

L004154

Part Number

4.713 291

Manufacturer

Lauda

Cooling capacity at 20 °C

1600 W

LAUDA Universa MAX U 855 M Cooling thermostat, 200-240 V; 50/60 Hz 21 Pump ball bearing mounted

Manufacturer P/N

L004152

Part Number

4.713 326

Manufacturer

Lauda

Cooling capacity at 20 °C

1600 kW

More items to explore

Cooling thermostat Universa MAX

ProductPlug typeTypeMfr#Part#AvailabilityPrice
CEEU 1645 ML0041464.713 290RM 81,427.50
CEEU 890 ML0041444.713 333RM 124,630.00
CEEU 845 ML0041424.713 321RM 63,107.00
CEEU 855 ML0041434.713 327RM 71,252.50
CEEU 4230 ML0041474.713 307RM 81,427.50
CEEU 2040 ML0041454.713 295RM 73,287.50

Cooling thermostat Universa MAX, WLAN capable

ProductPlug typeTypeMfr#Part#AvailabilityPrice
CEEU 4230 ML0037584.713 308RM 81,427.50
CEEU 855 ML0037544.713 328RM 71,252.50
CEEU 2040 ML0037564.713 296RM 73,287.50
CEEU 890 ML0037554.713 334RM 124,630.00
CEEU 1645 ML0037574.713 292RM 81,427.50
CEEU 845 ML0037534.713 322RM 63,107.00
