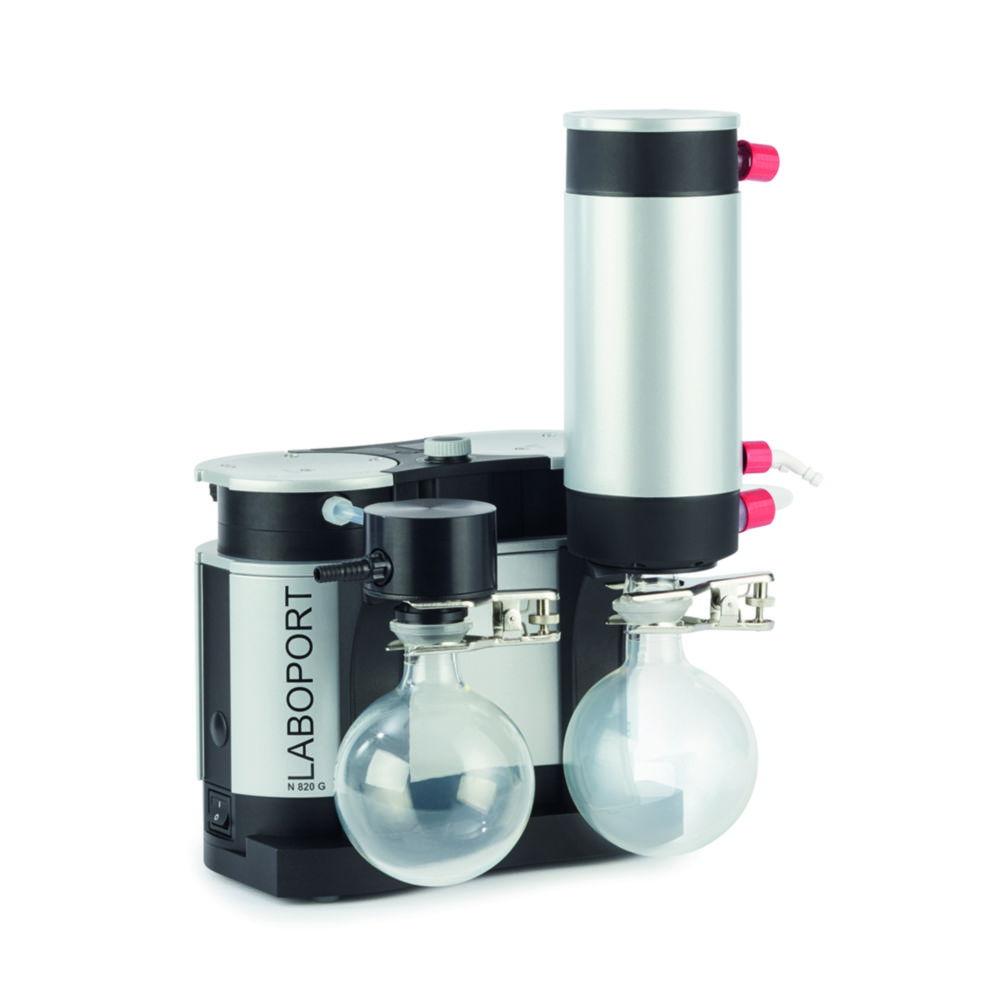

LABOPORT® Vacuum Pump System U SH820G US-Plug - 115V/60HZ
Sold by: Analisa Resources
Available Soon
Part #: 4.686 735Manufacturer #: U325234/313453
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
Vacuum pump systems consisting of chemically resistant diaphragm vacuum pump, base plate, inlet separator and outlet condensor for solvent recovery. The PTFE pump head and the PTFE-coated diaphragm make the vacuum systems suitable for aggressive / corrosive gases and vapours.
- 100 % oil-free transfer
- High level of vapor and condensate compatibility
- Integrated gas ballast valve
- 3-color status display (in operation / stand-by / error)
- Integrated speed control
- Start against ultimate vacuum of the pump
- Modular expandable
Product Specifications
- HS Code #84141089
- Connection pressure sideID 10 mm
- Connection suction sideID 8 ... 9,5 mm
- Depth260 mm
- Dimensions (WxDxH)323 x 260 x 416 mm
- Flow rate20 l/min
- Power supply frequency60 Hz
- Height416 mm
- IP codeIP 30
- Max. permitted ambient temp.40 °C
- Max. voltage115 V
- Min. permitted ambient temperature5 °C
- Plug typeUS
- Power supply115 V, 60 Hz
- Rated capacity60 W
- TypeU SH 820 G
- Type of auxiliary energyMains connection
- Ultimate vacuum6 mbar
- UNSPSC40151502
- Weight11.7 kg
- Width323 mm
