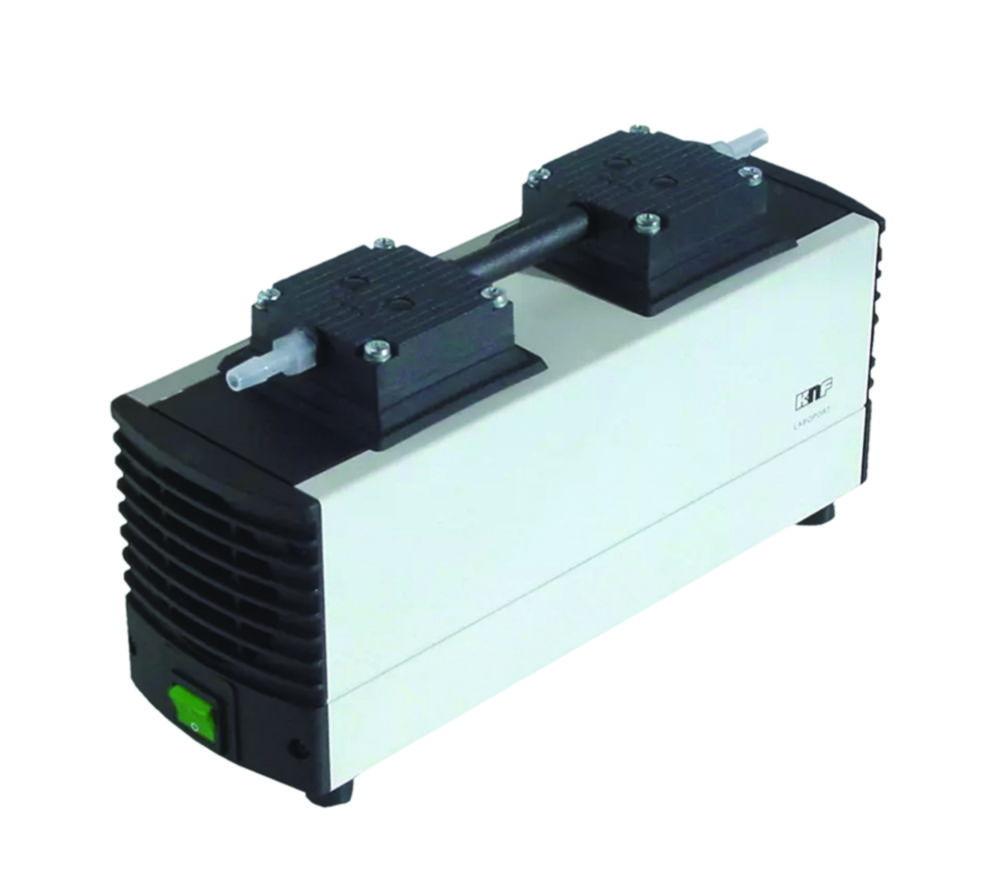

LABOPORT® Diaphragm pump N 816.3 KT.18 16 ltr/min., protection cl. IP 20 230V / 50Hz
Sold by: Analisa Resources
(10) In stock
Part #: 7.620 376Manufacturer #: 057012/055163
Delivery: 2-4 weeks
Product overview
For filtration, degassing desiccation, liquid extraction and solid phase extraction.
- PTFE-coated diaphragm is ideal for aggressive/corrosive gases and vapors
- Pump head made from PPS (Polyphenylsulfide), valves made from FFPM (Perfluoro rubber)
Product Specifications
- HS Code #84141089
- Connection pressure sideID 6 mm
- Connection suction sideID 6 mm
- Flow rate16 l/min
- Power supply frequency50/60 Hz
- Max. overpressure0.5 bar
- Max. voltage230 V
- Min. voltage100 V
- Plug typeEU
- Power supply100 ... 230 V, 50/60 Hz
- TypeN 816.3 KT.18
- Type of auxiliary energyMains connection
- Ultimate vacuum20 mbar
- UNSPSC41-10-51-01
