Kern & Sohn Transmitted Light Microscope Digital Set OBE 124T241

Magnification objectives

Type

Specifications

Compare models
Condenser
Abbe N.A. 1,25
Depth
180 mm
Depth stage
115 mm
Dimensions (WxDxH)
320 x 180 x 365 mm
Power supply frequency
50 Hz
Height
365 mm
Inclination angle tube
30°
Interfaces
WLAN, USB 2.0, HDMI, SD (15 ... 30 FPS)
Interpupillary distance
48 ... 75 mm
Light type
LED

RM 10,678.25

Inc. GST

Available soon

Product description

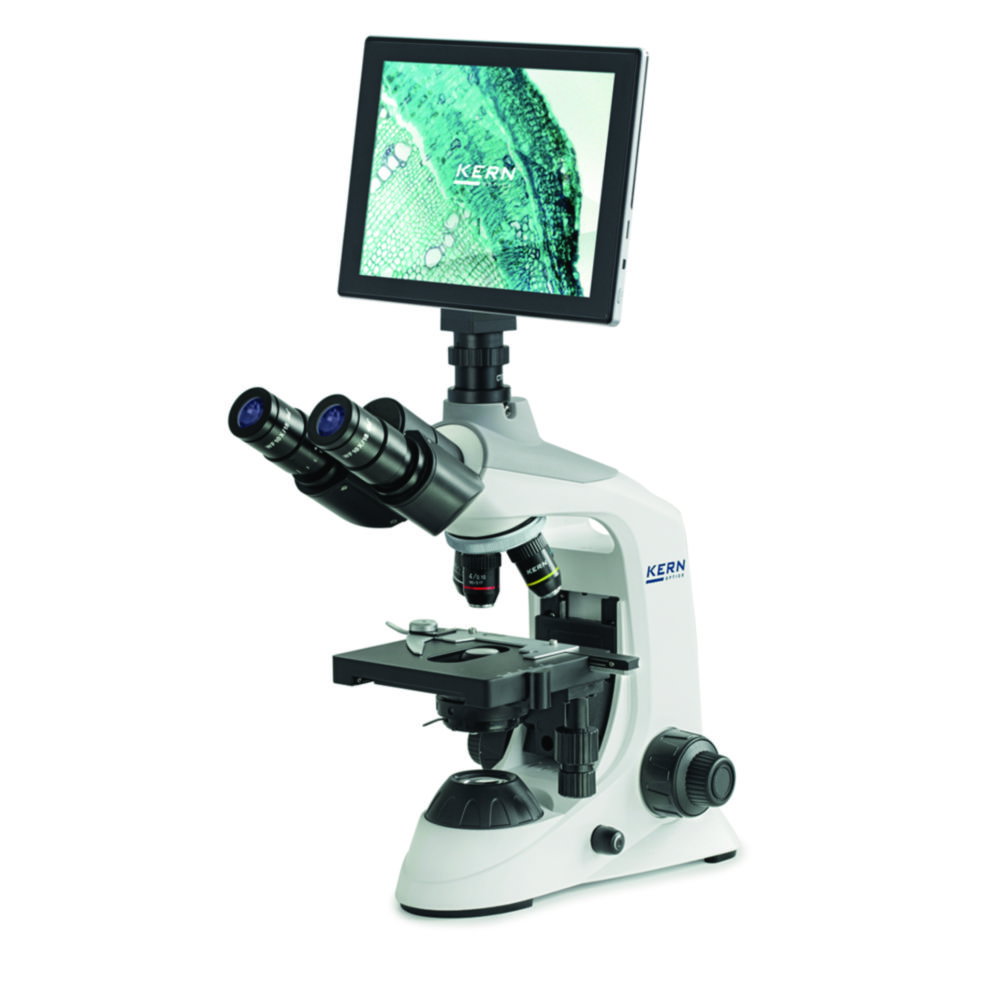

The Kern & Sohn Transmitted Light Microscope Digital Set OBE 124T241 is a comprehensive digital solution designed for educational and laboratory applications. Manufactured by Kern & Sohn, this microscope offers high-quality imaging and user-friendly features, making it ideal for schools, training centers, and research laboratories.

Key Features:

  • Brand: Kern & Sohn
  • Model: OBE 124T241
  • Optics: Trinocular tube inclined at 30°, 360° rotatable
  • Diopter Adjustment: At one eyepiece tube
  • Eyepieces: HWF 10x/18 mm
  • Objectives: 4x, 10x, 40x magnification
  • Revolving Nosepiece: 4-fold
  • Condenser: Abbe N.A. 1.25 with aperture diaphragm, focused
  • Focusing: Coaxial coarse and fine focusing
  • Illumination: Dimmable 3 W LED transmitted light
  • Camera: Integrated 5 MP CMOS sensor with WLAN, USB 2.0, HDMI, and SD interfaces (15–30 FPS)
  • Stage Dimensions: 125 × 115 mm
  • Interpupillary Distance: 48–75 mm
  • Power Supply: 230 V, 50 Hz (EU plug)
  • Dimensions (W×D×H): 320 × 180 × 365 mm
  • Weight: 5.5 kg

Scope of Supply:

  • Transmitted light microscope
  • Integrated camera
  • Dust cover
  • Eye cups
  • User manual

This set offers a ready-to-use, comprehensive digital microscopy solution for school, training, and laboratory environments. The content of the body element is displayed in your browser, ensuring clear and accessible product information for seamless integration into your digital catalog.

Accessories

Light Microscopes Educational-Line OBE 12 / 13

ProductLight typeTypeMfr#Part#AvailabilityPrice
LEDOBE 121OBE 1214.670 979RM 2,970.55
LEDOBE 122OBE 1224.670 980RM 3,515.05
LEDOBE 124OBE 1244.670 981RM 4,186.60
LEDOBE 131OBE 1314.670 982RM 3,273.05
LEDOBE 132OBE 1324.670 983RM 3,884.10
LEDOBE 134OBE 1344.670 984RM 4,610.10

Tablet camera ODC 241

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUODC 241ODC 2416.274 787RM 5,747.50
