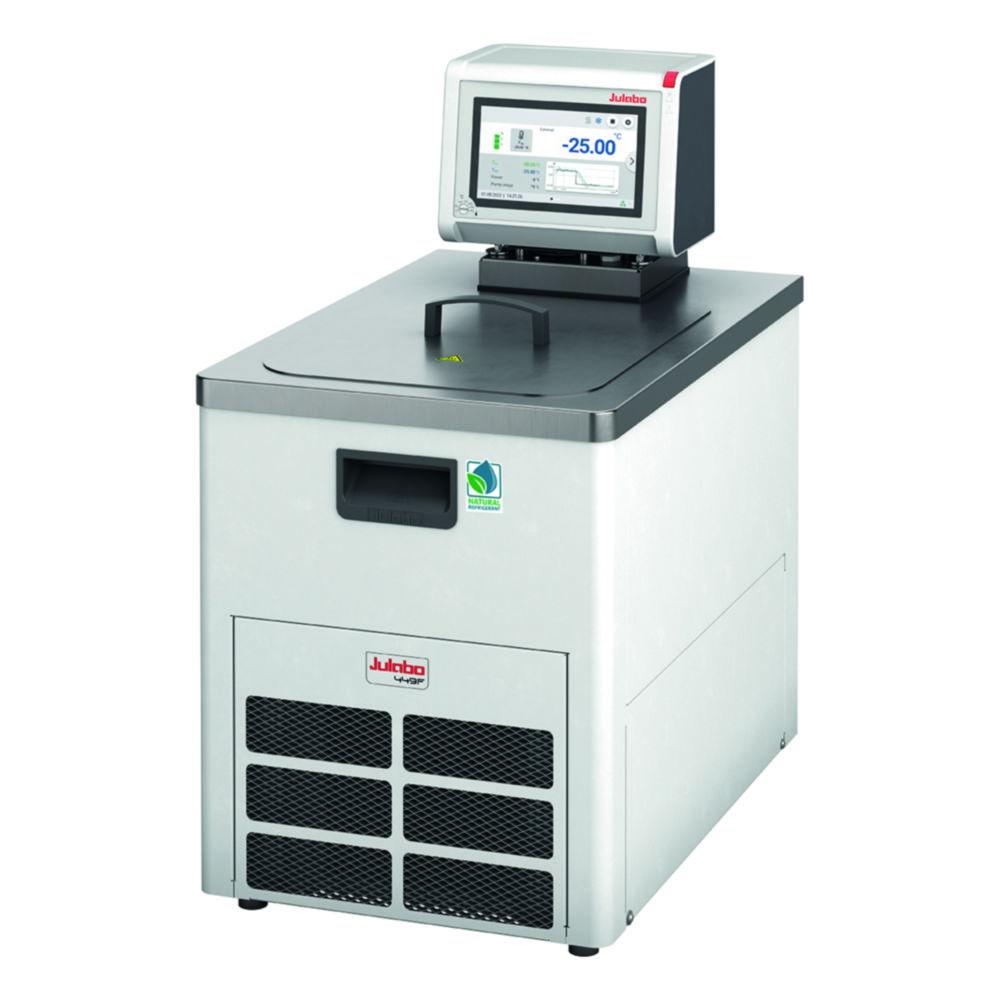

Julabo Refrigerated/Heating Circulator MAGIO MS-449F, with Natural Refrigerant
Product overview
The Julabo Refrigerated/Heating Circulator MAGIO MS-449F is engineered for precise and reliable temperature control in demanding external applications such as basic research, material testing, and technical installations. Utilizing a natural refrigerant (R290), this circulator is an environmentally friendly solution for laboratories seeking sustainable options.
Key Features:
- Brand: Julabo
- Temperature Range: -30°C to +200°C with a stability of ±0.01°C
- Heating Capacity: 2 kW
- Cooling Capacity: 0.4 kW at 20°C, 0.31 kW at 0°C, 0.19 kW at -20°C
- Pump Capacity: Flow rate of 16–31 l/min; pressure of 0.24–0.92 bar
- Bath Volume: 21–30 liters
- Interfaces: USB, RS232/RS485, Ethernet, Modbus TCP/IP
- Display: High-resolution 7" TFT touch display with multilingual user interface
- Construction: Stainless steel parts in contact with the medium
- Compliance: Class III (FL) according to DIN 12876-1
This circulator is an ideal choice for laboratories requiring high-performance temperature control with an emphasis on sustainability and precision.
Frequently Asked Questions
1. What is the Julabo Refrigerated/Heating Circulator MAGIO MS-449F, with Natural Refrigerant used for?
It is engineered for precise and reliable temperature control in demanding external applications such as basic research, material testing, and technical installations. Utilizing a natural refrigerant (R290), this circulator is an environmentally friendly solution for laboratories seeking sustainable options.
2. Is this product suitable for temperature control of compatible baths or externally connected systems within the stated limits?
Yes. It is designed for temperature control of compatible baths or externally connected systems within the stated limits, and offers a heating capacity of 2 kW and a cooling capacity of 0.4 kW at 20°C, 0.31 kW at 0°C, 0.19 kW at -20°C to support this kind of work.
3. What heating capacity and cooling capacity does this product have?
It has a heating capacity of 2 kW, a cooling capacity of 0.4 kW at 20°C, 0.31 kW at 0°C, 0.19 kW at -20°C and a bath volume of 21–30 liters.
4. What temperature range and pump capacity does this product offer?
It offers -30°C to +200°C with a stability of ±0.01°C, flow rate of 16–31 l/min; pressure of 0.24–0.92 bar, USB, RS232/RS485, Ethernet, Modbus TCP/IP and high-resolution 7" TFT touch display with multilingual user interface.
Product Specifications
- HS Code #84186900
- Bath depth200 mm
- Cooling capacity at 20 °C0,4 kW
- Depth opening350 mm
- Opening (WxD)280 x 350 mm
- Ext. dim. (WxDxH)370 x 590 x 690 mm
- Ext. depth590 mm
- Ext. height690 mm
- Ext. width370 mm
- Power supply frequency50/60 Hz
- Heating capacity2 kW
- IP codeIP 20
- Material bathStainless steel
- Max. delivery pressure0.92 bar
- Max. suction pressure0.4 bar
- Max. temperature200 °C
- Max. voltage230 V
- Max. volume bath26 l
- Min. temperature-30 °C
- Min. voltage200 V
- Min. volume bath18 l
- Power supply200 ... 230 V, 50/60 Hz
- RefrigerantR290
- Temperature stability±0,01 °C
- Temperature-30 ... 200 °C
- TypeMS-449F
- Type of auxiliary energyMains connection
- UNSPSC41103701
- Volume bath18 ... 26 l
- Weight42 kg
- Width opening280 mm
- With lidYes
- With timerYes
