Representative Image

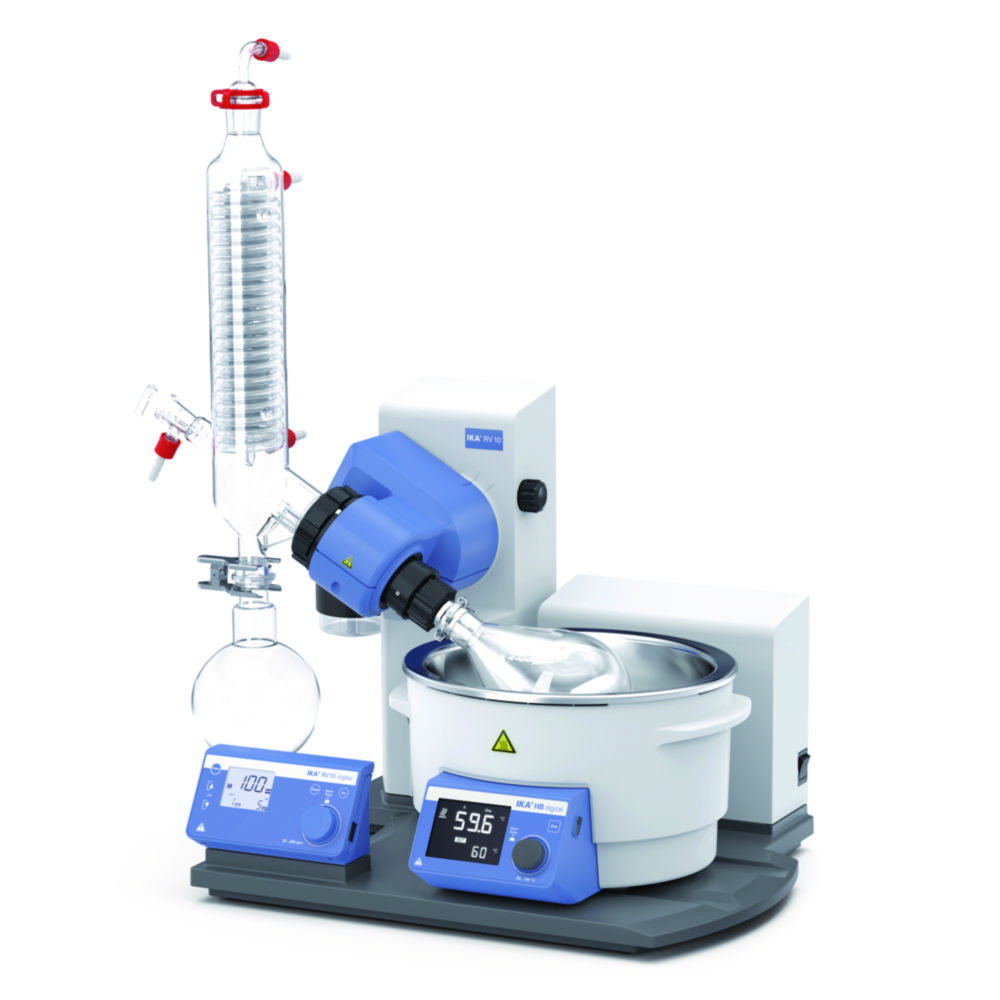

IKA Rotation Evaporator RV 10 Digital V, 4 Liters

Brand:IKA

Temperature

Specifications

Compare models
Condenser
Vertical
Cooling surface
1600 cm²
Depth
440 mm
Dimensions (WxDxH)
500 x 440 x 430 mm
Power supply frequency
50/60 Hz
Glassware
Without coating
Heating capacity
1350 W
Height
430 mm
IP code
IP 20
Lift
Electrical

RM 38,621.00

Inc. GST

Available soon

Product description

The IKA RV 10 Digital V Rotary Evaporator is a high-performance solution for efficient solvent evaporation in laboratories. Designed with a 4 L universal water/oil heating bath and vertical glassware, it ensures rapid heat-up and reliable distillation results. The unit features a highly efficient 1500 cm² condenser and motorized lift with an automatic safety lift-out function, enhancing both safety and convenience during operation. Ideal for chemical, pharmaceutical, and academic labs, this evaporator combines advanced functionality with robust design.

Key Features:

  • Brand: IKA
  • Model: RV 10 Digital V
  • Capacity: 4 L universal water/oil heating bath
  • Condenser: Vertical condenser with 1500 cm² surface area for efficient condensation
  • Lift Mechanism: Motorized lift with safety-stop function and automatic lift-out for power outage protection
  • Interface: RS 232 and IR interfaces for remote control via IKA’s ""labworldsoft""
  • Functions: Smooth start, timer, left-right interval, dry-run protection, safety temperature circuits, adjustable lower end stop, push-off mechanism for loosening tight glassware
  • Ergonomics: Ergonomically placed handles on heating bath and user-friendly interface design

Scope of Supply:

  • RV 10 digital V: Rotary evaporator RV 10 digital, heating bath HB digital, vertical glassware RV 10.1, vapor tube RV 10.70
  • RV 10 digital V-C: Rotary evaporator RV 10 digital, heating bath HB digital, coated vertical glassware RV 10.10, vapor tube RV 10.70
  • RV 10 digital V FLEX: Rotary evaporator RV 10 digital, heating bath HB digital, Woulf bottle, spherical joint clip RV 05.10, clamp NS 29 RV 10.88, vapor tube RV 10.70

The IKA RV 10 Digital V is trusted for its exceptional safety features, ergonomic design, and process reliability, making it a valuable addition to any lab focused on precision and reproducibility in evaporation tasks.

Downloads

Accessories

Evaporation flasks for rotary evaporator RV 10, RV 8, RV 3

ProductTypeNominal capacityMfr#Part#AvailabilityPrice
RV 10.841000 ml00037405006.237 501RM 852.50
RV 10.852000 ml00037406006.237 502RM 1,045.00
RV 10.8050 ml00037401006.237 497RM 550.00
RV 10.82250 ml00037403006.237 499RM 803.00
RV 10.9050 ml00037412004.008 126RM 550.00
RV 10.81100 ml00037402006.237 498RM 550.00
RV 10.91100 ml00037413004.008 127RM 550.00
RV 10.863000 ml00037407006.237 503RM 1,595.00

Powder flasks for rotary evaporator RV 10, RV 8, RV 3

ProductTypeNominal capacityMfr#Part#AvailabilityPrice
RV 10.3011000 ml00037383006.237 489RM 1,606.00
RV 10.3022000 ml00037384006.237 490RM 1,974.50
RV 10.300500 ml00037382006.237 488RM 1,518.00

Compare similar models

Rotation evaporator RV 10 digital V 4 liters
Available soon
IKA Rotation Evaporator RV 10 Digital V, 4 Liters

RM 38,621.00

Inc. GST

Manufacturer P/N

0010004799

Part Number

4.664 596

Manufacturer

IKA

Rotation evaporator RV 10 digital V S 3 4 liters with CH plug
Available soon
Rotation evaporator RV 10 digital V S 3 4 liters with CH plug

RM 38,621.00

Inc. GST

Manufacturer P/N

0010004801

Part Number

6.523 095

Manufacturer

IKA

Rotary evaporator RV 10 digital V UK plug
Available soon
Rotary evaporator RV 10 digital V UK plug

RM 44,137.50

Inc. GST

Manufacturer P/N

0010004800

Part Number

4.715 690

Manufacturer

IKA

Frequently asked questions

It is a high-performance solution for efficient solvent evaporation in laboratories. Designed with a 4 L universal water/oil heating bath and vertical glassware, it ensures rapid heat-up and reliable distillation results. The unit features a highly efficient 1500 cm² condenser and motorized lift with an automatic safety lift-out function, enhancing both safety and convenience during operation. Ideal for chemical, pharmaceutical, and academic labs, this evaporator combines advanced functionality with robust design.
