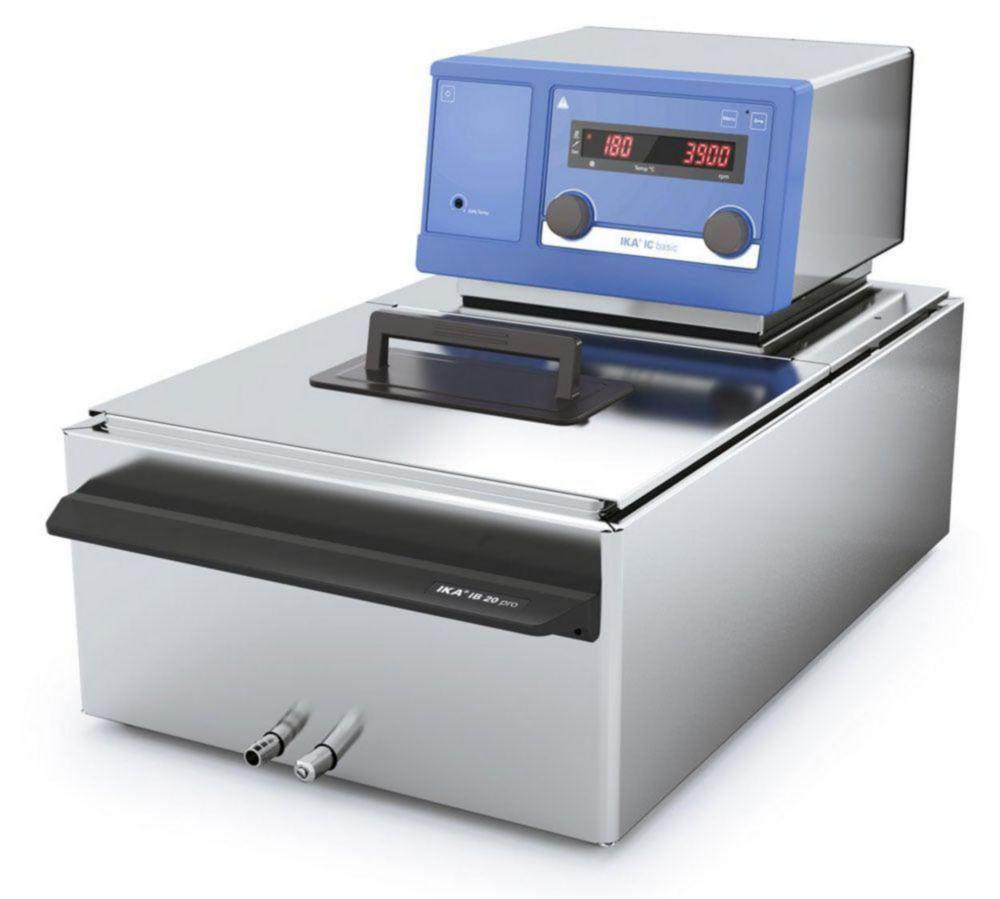

IKA Immersion Thermostat IC Basic Pro 20 C with Cover, 20 L, Stainless Steel
Product overview
The IKA Immersion Thermostat IC Basic Pro 20 C with Cover is a reliable and efficient solution for temperature control in laboratory applications. Designed for precision, this immersion thermostat features a stainless steel construction and a 20 L capacity. It provides stable and accurate temperature regulation for a variety of processes. The included cover ensures safety and optimal performance during use.
Key Features:
- Brand: IKA
- Temperature Range: Up to 150 °C
- Capacity: 20 L for large volume applications
- Material: Durable stainless steel construction
- Design: Includes cover for safety and optimal operation
- Application: Ideal for laboratory processes requiring precise temperature control
- Safety Features: Visual and acoustic warnings for excess temperature, sub-level, and over-level
- Display: LED display showing all relevant parameters
- Controls: Menu navigation via push and turn buttons
- Connectivity: USB/RS 232 interface and M16x1 connectors for external applications
- External Probe: Connection for external Pt100 temperature probe
- Safety Circuit: Adjustable safety circuit included
Scope of supply: Immersion circulator, stainless steel bath, temperature sensor, cooling coil, cover, bath bridge
The IKA Immersion Thermostat IC Basic Pro is an essential tool for laboratories needing reliable and accurate temperature regulation for various applications.
Product Specifications
- HS Code #84198998
- Bath depth150 mm
- Depth opening262 mm
- Opening (WxD)255 x 262 mm
- Ext. dim. (WxDxH)354 x 641 x 359 mm
- Ext. depth641 mm
- Ext. height359 mm
- Ext. width354 mm
- Power supply frequency50/60 Hz
- Heating capacity2500 W
- IP codeIP 21
- Material bathStainless steel
- Max. delivery pressure0.61 bar
- Max. suction pressure0.45 bar
- Max. temperature250 °C
- Max. voltage230 V
- Max. volume bath20 l
- Min. temperature+10 °C
- Power supply230 V, 50/60 Hz
- Temperature stability0,02 °C
- TemperatureRT
- TemperatureRT+10 ... 250 °C
- TypeIC basic pro 20 c
- Type of auxiliary energyMains connection
- Type of displayLED
- Volume bath20 l
- Weight26.1 kg
- Width opening255 mm
