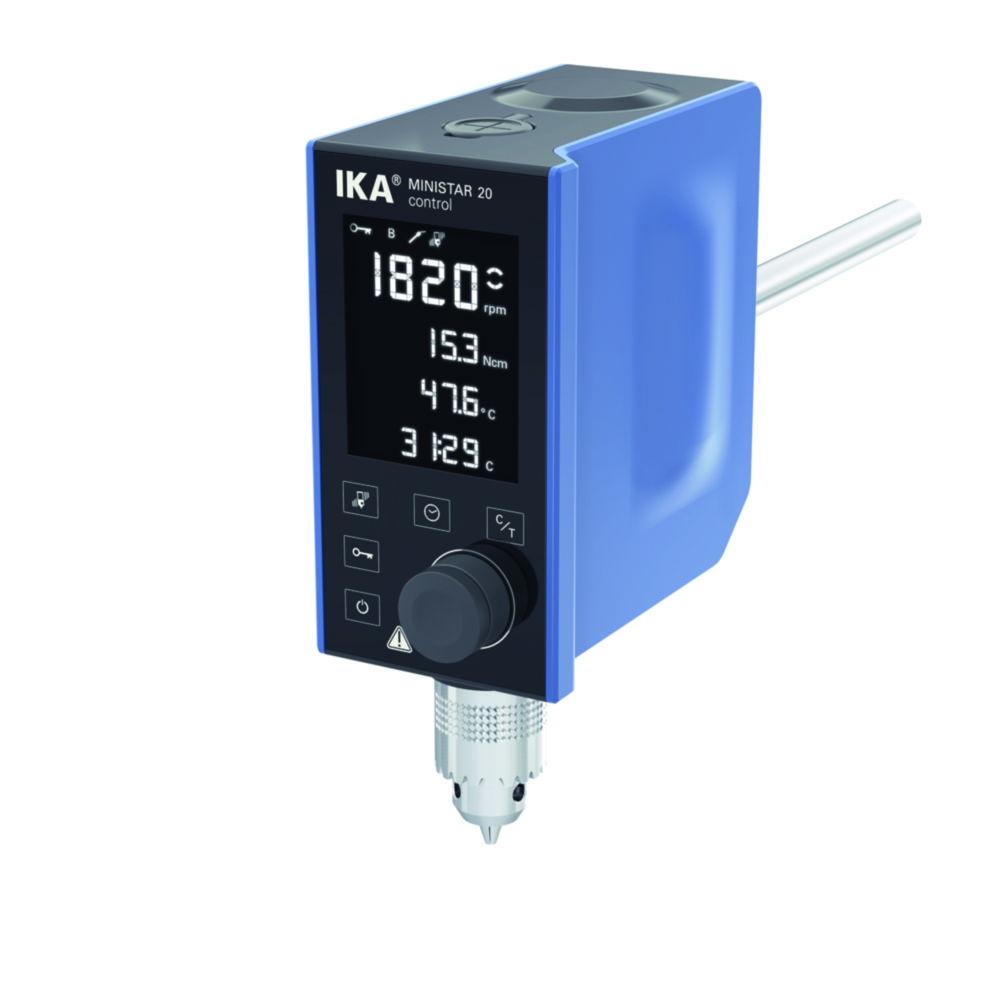

IKA Electronic Overhead Stirrer Ministar 20 Control IP 54, 193x154x70mm
Representative image only

IKA Electronic Overhead Stirrer Ministar 20 Control IP 54, 193x154x70mm

Sold by: Analisa Resources
Available Soon
Part #: 6.289 511Manufacturer #: 0025001988
Estimated shipping time:Contact us via live chat or via contact us page

RM 10,010.00

See the available (2) variant products
Product overview

The IKA Electronic Overhead Stirrer Ministar 20 Control is designed for precise and reliable stirring in laboratory applications. Featuring an IP 54 rating for protection against dust and water splashes, this stirrer offers durability and consistent performance. The compact design, measuring 193 x 154 x 70 mm, makes it ideal for space-constrained laboratories while providing powerful stirring capabilities for a wide range of laboratory tasks.

Key Features:

  • Brand: IKA
  • Type: Electronic overhead stirrer
  • Model: Ministar 20 Control
  • Protection: IP 54 for dust and water resistance
  • Dimensions: 193 x 154 x 70 mm
  • Application: Suitable for various laboratory stirring tasks
  • Display: Hardened glass for maximum visibility and chemical resistance
  • Safety: Vibration sensors detect deviations and automatically stop the process
  • Connectivity: USB and Bluetooth interfaces for parameter documentation and firmware updates
  • Software Integration: Easy connection to labworldsoft®
  • Temperature Measurement: PT1000 sensor with direct medium reading
  • Speed Control: Continuously adjustable with microprocessor-controlled speed governor for consistent speed despite viscosity changes
  • Additional Features: Key lock function, integrated timer, chemical-resistant housing
  • Warranty: 10 years

Scope of supply: Overhead stirrer including temperature sensor PT1000

The IKA Ministar 20 Control is an excellent choice for laboratories requiring compact, durable, and advanced stirring solutions with precise control.

Product Specifications
  • HS Code #84798200
  • Clamping range0.5 ... 8 mm
  • Depth154 mm
  • Dimensions (WxDxH)70 x 154 x 193 mm
  • DisplayDigital
  • Power supply frequency50/60 Hz
  • Height193 mm
  • IP codeIP 54
  • Max. clamping width8 mm
  • Max. speed2000 1/min
  • Max. stirring capacity15 l
  • Max. temperature350 °C
  • Max. torque20 Ncm
  • Max. Viscosity10000 mPa·s
  • Max. voltage240 V
  • Min. clamping width0.5 mm
  • Min. speed0 1/min
  • Min. temperature-10 °C
  • Min. voltage100 V
  • Power supply100 ... 240 V, 50/60 Hz
  • Rated capacity69 W
  • Speed0 ... 2,000 1/min
  • Temperature-10 ... 350 °C
  • TypeMINISTAR 20 control
  • Type of auxiliary energyMains connection
  • Warranty10 years
  • Weight1.56 kg
  • Width70 mm
  • With connection ext. temperature sensorYes
  • With timerYes
Downloads
  • IKA Micro-Ministar Overhead Stirrer BrochureDownload
  • IKA Ministar 20 Control Data SheetDownload
  • IKA Ministar 40 Control Data SheetDownload
  • IKA Ministar 80 Control Data SheetDownload
  • IKA Microstar Control Instruction ManualDownload
