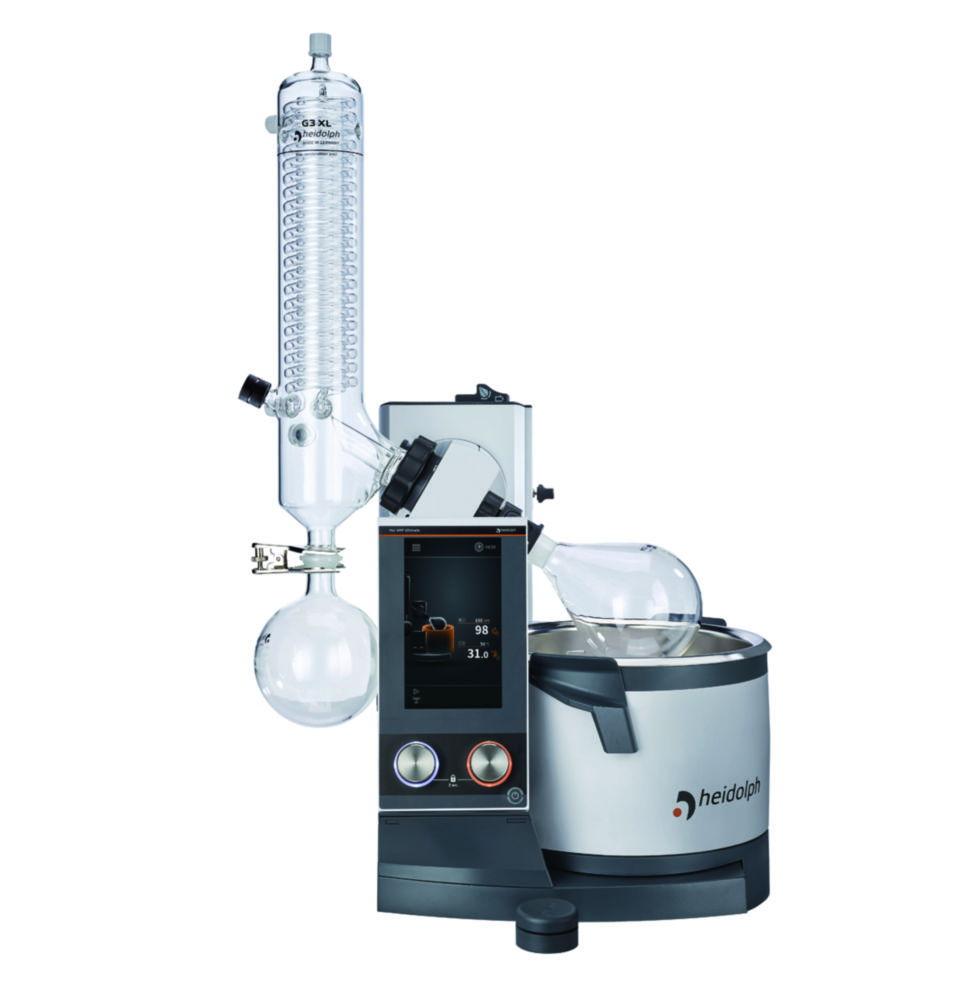

Heidolph Rotary Evaporator Hei-VAP Ultimate HL/G3 XL, with Hand Lift

Brand:Heidolph

Cooling surface

Glassware

Plug type

Type

Specifications

Compare models
Condenser
Vertical
Cooling surface
2200 cm²
Depth
532 mm
Dimensions (WxDxH)
739 x 532 x 887 mm
Power supply frequency
50/60 Hz
Glassware
Without coating
Height
887 mm
Lift
Manual
Lifting path
155 mm
Max. speed
280 1/min

RM 34,831.50

Inc. GST

Available soon

Product description

The Heidolph Hei-VAP Ultimate HL/G3 XL with Hand Lift is designed for high-efficiency solvent evaporation in laboratory settings. Featuring a G3 XL vertical condenser with a 2200 cm² cooling surface and a manual hand lift for precise flask handling, this model ensures optimal performance and safety.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Ultimate HL/G3 XL with Hand Lift
  • Glassware: G3 XL vertical condenser
  • Cooling Surface: 2200 cm²
  • Lift Type: Manual hand lift
  • Control System: 7" touch display with USB, micro SD, LAN/RS 232 interfaces (Lab 4.0-ready)
  • Rotation Speed: 10–280 rpm
  • Heating Capacity: 1300 W
  • Temperature Range: Ambient to 210 °C
  • Heating Bath Volume: 4.5 L
  • Max. Flask Size: 5 L
  • Safety Features: Overheat protection with cut-off at 5 °C over set temperature via separate PT 1000 sensor
  • Application: Suitable for chemical, pharmaceutical, and research laboratories

Enhance laboratory efficiency with the Heidolph Hei-VAP Ultimate HL/G3 XL—combining advanced features and user-friendly design for precise solvent evaporation.

Compare similar models

Rotary evaporator Hei-VAP Ultimate HL/G3 XL with hand lift

Manufacturer P/N

575-01305-00

Part Number

4.669 014

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary evaporator Hei-VAP Ultimate HL/G3B with hand lift, plastic-coated glass sets

Manufacturer P/N

575-01310-00

Part Number

4.669 018

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary evaporator Hei-VAP Ultimate HL/G3 with hand lift

Manufacturer P/N

575-01300-00

Part Number

4.669 013

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary evaporator Hei-VAP Ultimate HL/G3B XL with hand lift, plastic-coated glass sets

Manufacturer P/N

575-01315-00

Part Number

4.669 019

Manufacturer

Heidolph

Cooling surface

2200 cm²

Hei-VAP Ultimate HL G3B CH-plug
Available soon
Heidolph Hei-VAP Ultimate HL G3B, CH Plug

RM 34,149.50

Inc. GST

Manufacturer P/N

575-01310-04

Part Number

4.703 418

Manufacturer

Heidolph

Cooling surface

1400 cm²

Hei-VAP Ultimate HL G3 XL CH-plug
Available soon
Heidolph Hei-VAP Ultimate HL G3 XL, CH Plug

RM 34,831.50

Inc. GST

Manufacturer P/N

575-01305-04

Part Number

4.703 416

Manufacturer

Heidolph

Cooling surface

2200 cm²

Hei-VAP Ultimate HL G3B XL CH-plug
Available soon
Heidolph Hei-VAP Ultimate HL G3B XL, CH Plug

RM 36,052.50

Inc. GST

Manufacturer P/N

575-01315-04

Part Number

4.703 420

Manufacturer

Heidolph

Cooling surface

2200 cm²

Hei-VAP Ultimate HL G3B XL UK-plug
Available soon
Heidolph Hei-VAP Ultimate HL G3B XL, UK Plug

RM 36,052.50

Inc. GST

Manufacturer P/N

575-01315-03

Part Number

4.703 419

Manufacturer

Heidolph

Cooling surface

2200 cm²

Hei-VAP Ultimate HL G3 XL UK-plug
Available soon
Heidolph Hei-VAP Ultimate HL G3 XL, UK Plug

RM 34,831.50

Inc. GST

Manufacturer P/N

575-01305-03

Part Number

4.703 415

Manufacturer

Heidolph

Cooling surface

2200 cm²

Hei-VAP Ultimate HL G3B UK-plug
Available soon
Heidolph Hei-VAP Ultimate HL G3B, UK Plug

RM 34,149.50

Inc. GST

Manufacturer P/N

575-01310-03

Part Number

4.703 417

Manufacturer

Heidolph

Cooling surface

1400 cm²

Hei-VAP Ultimate HL G3 CH-plug
Available soon
Heidolph Hei-VAP Ultimate HL G3, CH Plug

RM 32,923.00

Inc. GST

Manufacturer P/N

575-01300-04

Part Number

4.703 414

Manufacturer

Heidolph

Cooling surface

1400 cm²

Hei-VAP Ultimate HL G3 UK-plug
Available soon
Heidolph Hei-VAP Ultimate HL G3, UK Plug

RM 32,923.00

Inc. GST

Manufacturer P/N

575-01300-03

Part Number

4.703 413

Manufacturer

Heidolph

Cooling surface

1400 cm²

More items to explore

Rotary Evaporators Hei-VAP Expert, with motor lift, cold trap

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUG5B574-01510-004.668 992RM 41,024.50
EUG5574-01500-004.668 987RM 38,329.50
CHG5B574-01510-044.703 371RM 41,024.50
CHG5574-01500-044.703 369RM 38,329.50
UKG5574-01500-034.703 368RM 38,329.50
UKG5B574-01510-034.703 370RM 41,024.50

Rotary Evaporators Hei-VAP Expert Control, with hand lift, cold trap

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUG5B573-02510-004.669 001RM 47,470.50
EUG5573-02500-004.668 996RM 44,775.50
UKG5B573-02510-034.703 350RM 47,470.50
CHG5B573-02510-044.703 351RM 47,470.50
UKG5573-02500-034.703 348RM 44,775.50
CHG5573-02500-044.703 349RM 44,775.50

Frequently asked questions

It is designed for high-efficiency solvent evaporation in laboratory settings. Featuring a G3 XL vertical condenser with a 2200 cm² cooling surface and a manual hand lift for precise flask handling, this model ensures optimal performance and safety.
