Representative Image

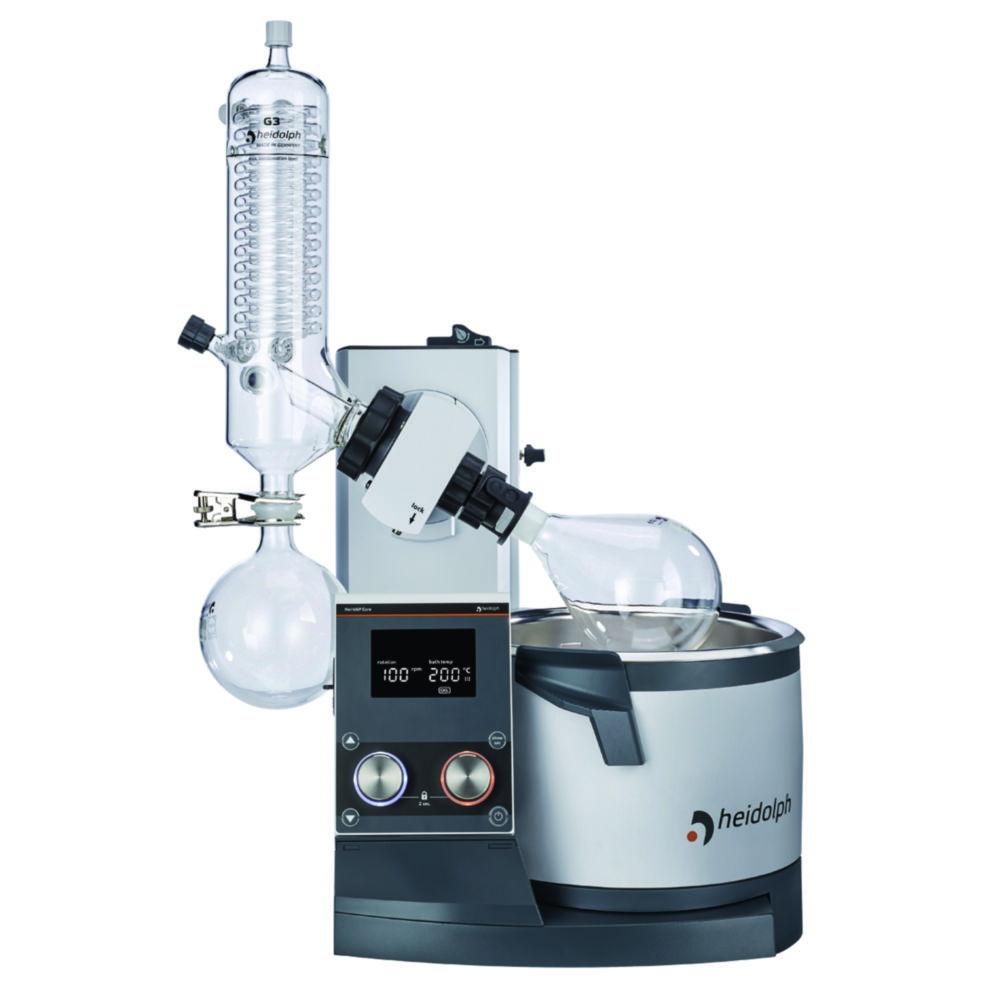

Heidolph Rotary Evaporator Hei-VAP Core ML G3-CH Motor Lift (CH-Plug)

Brand:Heidolph

Cooling surface

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Cooling surface
1400 cm²
Depth
432 mm
Dimensions (WxDxH)
739 x 432 x 845 mm
Glassware
Without coating
Height
845 mm
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l

RM 29,073.00

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G3-CH Motor Lift (CH-Plug) is a reliable and high-precision instrument designed for solvent evaporation in modern laboratories. With a smooth motor lift function and CH-Plug compatibility, this evaporator supports efficient and reproducible workflows in distillation, concentration, and other evaporation tasks. Built for durability and performance, it meets the needs of research and industrial labs alike.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G3-CH with motor lift (CH-Plug)
  • Application: Solvent evaporation, distillation, and concentration in laboratory environments
  • Compatibility: Designed for laboratory setups requiring CH-Plug configuration
  • Lift Mechanism: Motor lift for precise and automated vertical movement
  • Display: Clear digital display for monitoring current values and a separate button to display set values
  • Controls: Two separate operating knobs for adjusting rotation speed and heating temperature, featuring LED ring lights for activity indication
  • Safety: Activated lock feature prevents unintended adjustments; residual heat warning when temperature exceeds 50 °C
  • Functionality: Standby button halts all operations and raises the evaporator flask from the heating bath (motor lift models)
  • Ergonomics: Heating bath equipped with optimized ergonomic handles for secure grip
  • Adjustability: Immersion depth adjustable up to 155 mm; evaporating flask tilt angle adjustable from 20° to 80°
  • Sealing Technology: Grease-free operation with advanced sealing system
  • Ventilation Cap: Includes PTFE inlet; optionally available with replenishment valve
  • Optional Features: Cable extension available; control panel can be detached for external operation (e.g., outside closed fume hoods)

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

This Heidolph Rotary Evaporator is essential for laboratories demanding efficient, consistent, and user-friendly evaporation systems.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
Heating bath liquid AP 200 (WACKER) 220°C 5 Ltr.
Heidolph Heating Bath Liquid AP 200 (WACKER), 220°C, 5 Ltr
5 l+220 °C569-00600-004.652 675RM 9,080.50
Thermal Fluid Kryo30 canister 20 l, for Hei-CHILL Chiller (no dan. goods)
Heidolph Thermal Fluid Kryo30 Canister 20 L, for Hei-CHILL Chiller No DAN Goods
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
Evaporator flask 3000 ml NS 29/32
Heidolph Evaporator Flask, 3000 ml NS 29/32
3000 ml41104800514-76300-007.047 224RM 1,551.00
Evaporator Flask 2000 ml NS 29/32
Heidolph Evaporator Flask, 2000 ml NS 29/32
2000 ml41104800514-75000-007.047 223RM 940.50
Evaporator Flask 250 ml NS 29/32
Heidolph Evaporator Flask, 250 ml NS 29/32
250 ml41104800514-72000-007.047 221RM 676.50
Evaporator Flask 500 ml NS 29/32
Heidolph Evaporator Flask, 500 ml NS 29/32
500 ml41104800514-73000-007.047 222RM 737.00
Evaporating flask 5000 ml NS 29/32
Heidolph Evaporating Flask, 5000 ml NS 29/32
5000 ml41104800514-78000-007.626 949RM 2,546.50
Evaporator Flask 100 ml NS 29/32
Heidolph Evaporator Flask, 100 ml NS 29/32
100 ml41104800514-71000-007.047 220RM 671.00
Evaporating flask 50 ml with NS 14/23 incl. transition piece and clamp
Heidolph Evaporating Flask, 50 ml, with NS 14/23 including Transition Piece and Clamp
50 ml41104800514-70000-006.206 660RM 990.00
Evaporator flask 1000ml NS 29/32 for glass set V1 and V1/B
Heidolph Evaporator Flask, 1000ml NS 29/32 for Glass Set V1 and V1/B
1000 ml41104800514-74000-007.047 172RM 880.00

Compare similar models

Rotary Evaporator Hei-VAP Core ML G3-CH motor lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3-CH Motor Lift (CH-Plug)

RM 29,073.00

Inc. GST

Manufacturer P/N

572-01300-04

Part Number

4.666 138

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL motor lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3 XL, Motor Lift (EU-Plug)

RM 30,976.00

Inc. GST

Manufacturer P/N

572-01305-00

Part Number

4.666 097

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3 motor lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3, Motor Lift (EU-Plug)

RM 29,073.00

Inc. GST

Manufacturer P/N

572-01300-00

Part Number

4.666 096

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B motor lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3B, Motor Lift (EU-Plug)

RM 30,294.00

Inc. GST

Manufacturer P/N

572-01310-00

Part Number

4.666 101

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL motor lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3B XL, Motor Lift (EU-Plug)

RM 32,208.00

Inc. GST

Manufacturer P/N

572-01315-00

Part Number

4.666 102

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3-UK motor lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3-UK, Motor Lift (UK-Plug)

RM 29,073.00

Inc. GST

Manufacturer P/N

572-01300-03

Part Number

4.666 118

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL-UK motor lift (UK-Plug)
Available soon
Heidolph Hei-VAP Core ML G3 XL-UK Motor Lift (UK-Plug)

RM 30,976.00

Inc. GST

Manufacturer P/N

572-01305-03

Part Number

4.666 119

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL-CH motor lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3 XL-CH Motor Lift (CH-Plug)

RM 30,976.00

Inc. GST

Manufacturer P/N

572-01305-04

Part Number

4.666 139

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3B-UK motor lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3B-UK Motor Lift (UK-Plug)

RM 30,294.00

Inc. GST

Manufacturer P/N

572-01310-03

Part Number

4.666 123

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B-CH motor lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3B-CH Motor Lift (CH-Plug)

RM 30,294.00

Inc. GST

Manufacturer P/N

572-01310-04

Part Number

4.666 143

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL-CH motor lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3B XL-CH Motor Lift (CH-Plug)

RM 32,208.00

Inc. GST

Manufacturer P/N

572-01315-04

Part Number

4.666 144

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL-UK motor lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core ML G3B XL-UK Motor Lift (UK-Plug)

RM 32,208.00

Inc. GST

Manufacturer P/N

572-01315-03

Part Number

4.666 124

Manufacturer

Heidolph

Cooling surface

2200 cm²
