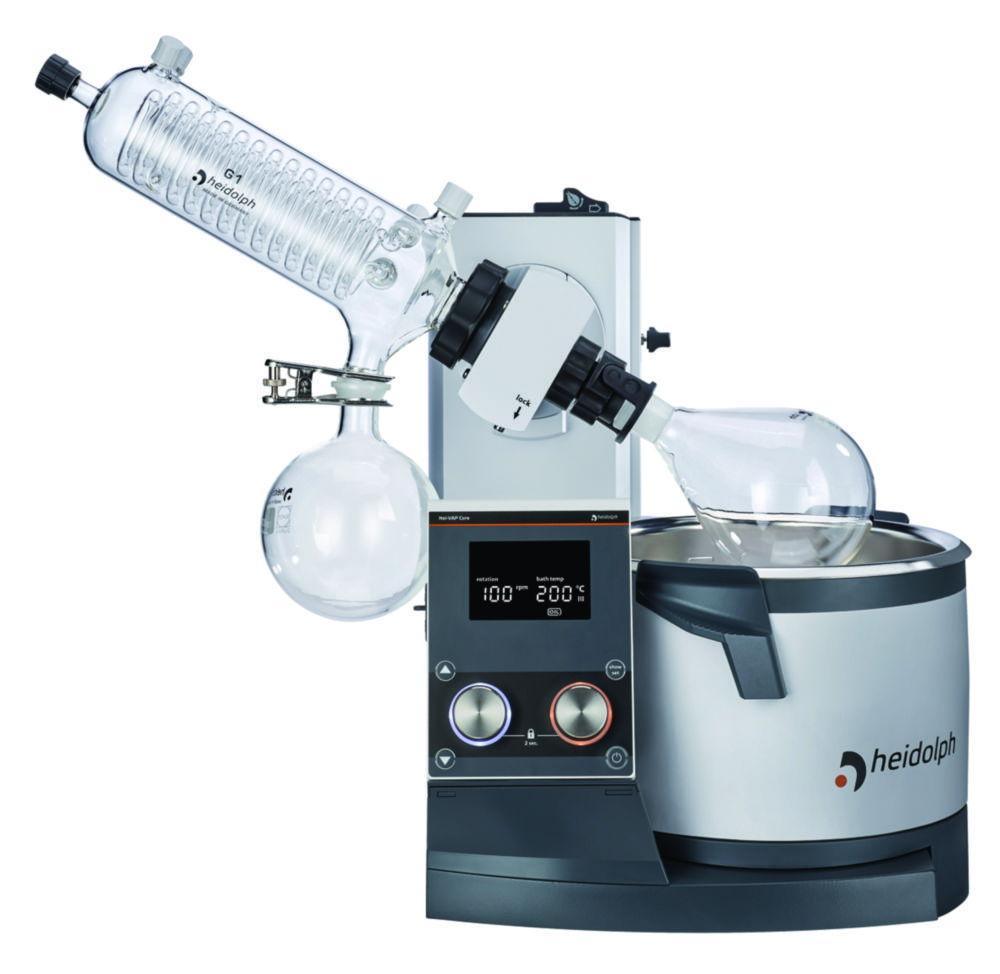

Heidolph Rotary Evaporator Hei-VAP Core ML G1B-CH Motor Lift (CH-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Diagonal
Cooling surface
1400 cm²
Glassware
Coated
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

RM 29,254.50

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G1B-CH Motor Lift (CH-Plug) is engineered for efficient and reliable solvent evaporation in laboratory settings. Featuring a clear digital display, separate knobs for rotation speed and heating temperature, and an LED ring light system for activity indication, this unit ensures precise control and user-friendly operation. The motor lift mechanism allows for easy adjustment of immersion depth up to 155 mm and tilt angle from 20° to 80°, accommodating various experimental needs.

Key Features:

  • Brand: Heidolph
  • Display: Clear digital display for monitoring current and set values
  • Controls: Separate knobs for rotation speed and heating temperature with LED indicators
  • Safety: Activated lock feature to prevent inadvertent adjustments; residual heat indicator when >50 °C
  • Standby Function: Stops all functions and lifts the evaporator flask out of the heating bath
  • Design: Ergonomically optimized heating bath handles for secure handling; grease-free operation with innovative sealing technology
  • Adjustability: Immersion depth up to 155 mm; tilt angle from 20° to 80°
  • Ventilation Cap: PTFE inlet, free of ground joints; optionally available with replenishment valve
  • Optional Accessories: Cable extension and detachable control panel for use outside closed fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-l receiving flask
  • 1-l evaporating flask
  • Supplied condenser as indicated

This rotary evaporator is an indispensable tool for laboratories requiring precise, safe, and efficient solvent evaporation solutions with the convenience of motorized lift operation.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675RM 9,080.50
20 l+90 °C569-00610-009.812 665RM 7,436.00

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
3000 ml41104800514-76300-007.047 224RM 1,551.00
2000 ml41104800514-75000-007.047 223RM 940.50
250 ml41104800514-72000-007.047 221RM 676.50
500 ml41104800514-73000-007.047 222RM 737.00
5000 ml41104800514-78000-007.626 949RM 2,546.50
100 ml41104800514-71000-007.047 220RM 671.00
50 ml41104800514-70000-006.206 660RM 990.00
1000 ml41104800514-74000-007.047 172RM 880.00

Compare similar models

Rotary Evaporator Hei-VAP Core ML G1B-CH motor lift (CH-Plug)

Manufacturer P/N

572-01110-04

Part Number

4.666 142

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G1-UK motor lift (UK-Plug)

Manufacturer P/N

572-01100-03

Part Number

4.666 117

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G1B motor lift (EU-Plug)

Manufacturer P/N

572-01110-00

Part Number

4.666 100

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G1-CH motor lift (CH-Plug)

Manufacturer P/N

572-01100-04

Part Number

4.666 137

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G1 hand lift (EU-Plug)

Manufacturer P/N

572-01100-00

Part Number

4.666 095

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G1B-UK motor lift (UK-Plug)

Manufacturer P/N

572-01110-03

Part Number

4.666 122

Manufacturer

Heidolph

Glassware

Coated

Frequently asked questions

It is engineered for efficient and reliable solvent evaporation in laboratory settings. Featuring a clear digital display, separate knobs for rotation speed and heating temperature, and an LED ring light system for activity indication, this unit ensures precise control and user-friendly operation. The motor lift mechanism allows for easy adjustment of immersion depth up to 155 mm and tilt angle from 20° to 80°, accommodating various experimental needs.
