Representative Image

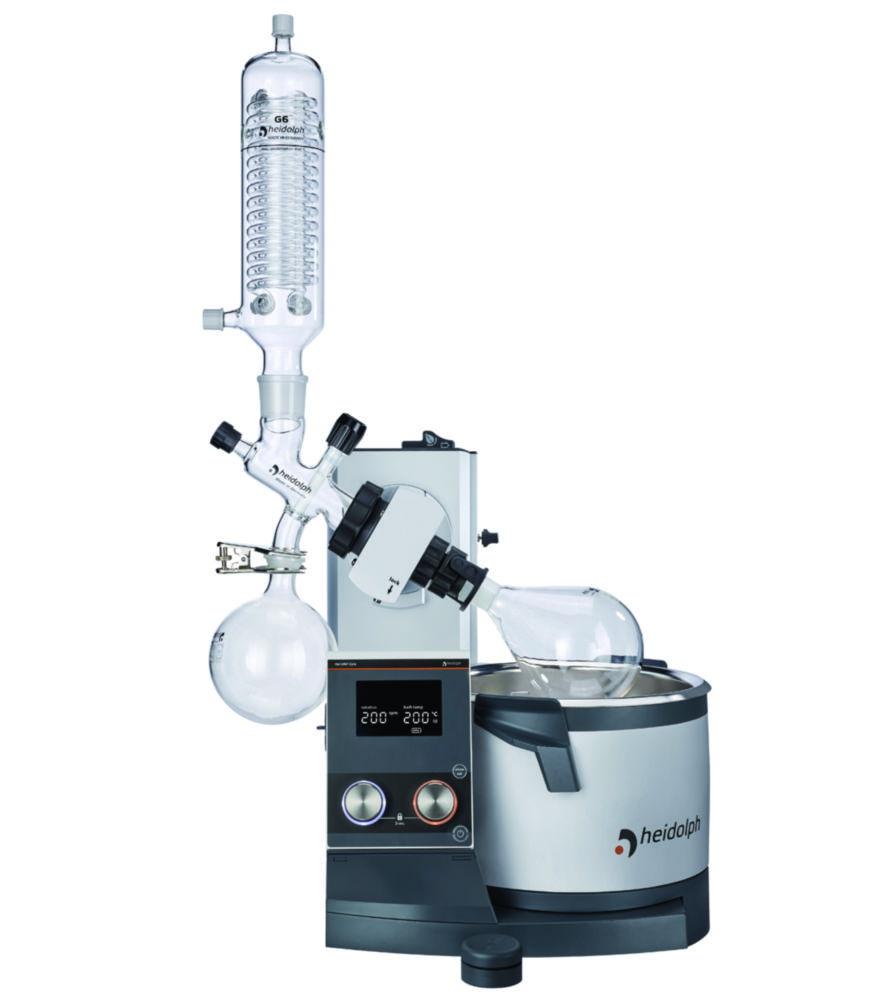

Heidolph Rotary Evaporator Hei-VAP Core HL G6B-UK Hand Lift (UK-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Vertical
Cooling surface
1400 cm²
Glassware
Coated
Lift
Manual
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

RM 36,910.50

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core HL G6B-UK Hand Lift (UK-Plug) is designed to deliver high-performance solvent evaporation with manual precision. It features a clear digital display for real-time monitoring of operating values and separate knobs for adjusting rotation speed and heating temperature, enhanced with an LED ring light system for activity indication. The manual hand lift mechanism ensures precise adjustment of immersion depth and flask tilt, making it ideal for distillation, concentration, and solvent recovery in laboratory workflows.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core HL G6B-UK with hand lift (UK-Plug)
  • Display: Clear digital screen with dedicated button to toggle between current and set values
  • Controls: Independent knobs for speed and temperature adjustment, with LED ring activity indication
  • Lift Mechanism: Manual hand lift for accurate vertical positioning of the evaporating flask
  • Adjustability: Immersion depth up to 155 mm; tilt angle from 20° to 80°
  • Safety: Lock feature to prevent accidental parameter changes; residual heat indicator activates above 50 °C
  • Design: Ergonomically optimized heating bath handles for secure and comfortable grip
  • Sealing: Grease-free sealing system for reduced maintenance and contamination
  • Ventilation Cap: PTFE inlet, free of ground joints; optionally available with replenishment valve
  • Optional Features: Control panel can be detached via optional cable extension for operation outside fume hoods
  • Electrical Compatibility: UK-plug configuration for use with UK-standard power systems

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

This Heidolph Rotary Evaporator is an ideal solution for laboratories requiring reliable, precise, and easy-to-use manual equipment for solvent evaporation, ensuring long-term performance and operational safety.

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
Heating bath liquid AP 200 (WACKER) 220°C 5 Ltr.
Heidolph Heating Bath Liquid AP 200 (WACKER), 220°C, 5 Ltr
5 l+220 °C569-00600-004.652 675RM 9,080.50
Thermal Fluid Kryo30 canister 20 l, for Hei-CHILL Chiller (no dan. goods)
Heidolph Thermal Fluid Kryo30 Canister 20 L, for Hei-CHILL Chiller No DAN Goods
20 l+90 °C569-00610-009.812 665RM 7,436.00

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
Evaporator flask 3000 ml NS 29/32
Heidolph Evaporator Flask, 3000 ml NS 29/32
3000 ml41104800514-76300-007.047 224RM 1,551.00
Evaporator Flask 2000 ml NS 29/32
Heidolph Evaporator Flask, 2000 ml NS 29/32
2000 ml41104800514-75000-007.047 223RM 940.50
Evaporator Flask 250 ml NS 29/32
Heidolph Evaporator Flask, 250 ml NS 29/32
250 ml41104800514-72000-007.047 221RM 676.50
Evaporator Flask 500 ml NS 29/32
Heidolph Evaporator Flask, 500 ml NS 29/32
500 ml41104800514-73000-007.047 222RM 737.00
Evaporating flask 5000 ml NS 29/32
Heidolph Evaporating Flask, 5000 ml NS 29/32
5000 ml41104800514-78000-007.626 949RM 2,546.50
Evaporator Flask 100 ml NS 29/32
Heidolph Evaporator Flask, 100 ml NS 29/32
100 ml41104800514-71000-007.047 220RM 671.00
Evaporating flask 50 ml with NS 14/23 incl. transition piece and clamp
Heidolph Evaporating Flask, 50 ml, with NS 14/23 including Transition Piece and Clamp
50 ml41104800514-70000-006.206 660RM 990.00
Evaporator flask 1000ml NS 29/32 for glass set V1 and V1/B
Heidolph Evaporator Flask, 1000ml NS 29/32 for Glass Set V1 and V1/B
1000 ml41104800514-74000-007.047 172RM 880.00

Compare similar models

Rotary Evaporator Hei-VAP Core HL G6B-UK hand lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G6B-UK Hand Lift (UK-Plug)

RM 36,910.50

Inc. GST

Manufacturer P/N

571-01610-03

Part Number

4.666 116

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G6 hand lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G6, Hand Lift (EU-Plug)

RM 34,837.00

Inc. GST

Manufacturer P/N

571-01600-00

Part Number

4.666 089

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G6B-CH hand lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G6B-CH Hand Lift (CH-Plug)

RM 36,910.50

Inc. GST

Manufacturer P/N

571-01610-04

Part Number

4.666 136

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G6-CH hand lift (CH-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G6-CH Hand Lift (CH-Plug)

RM 34,837.00

Inc. GST

Manufacturer P/N

571-01600-04

Part Number

4.666 131

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G6-UK hand lift (UK-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G6-UK Hand Lift (UK-Plug)

RM 34,837.00

Inc. GST

Manufacturer P/N

571-01600-03

Part Number

4.666 111

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G6B hand lift (EU-Plug)
Available soon
Heidolph Rotary Evaporator Hei-VAP Core HL G6B Hand Lift (EU-Plug)

RM 36,910.50

Inc. GST

Manufacturer P/N

571-01610-00

Part Number

4.666 094

Manufacturer

Heidolph

Glassware

Coated

Frequently asked questions

It is designed to deliver high-performance solvent evaporation with manual precision. It features a clear digital display for real-time monitoring of operating values and separate knobs for adjusting rotation speed and heating temperature, enhanced with an LED ring light system for activity indication. The manual hand lift mechanism ensures precise adjustment of immersion depth and flask tilt, making it ideal for distillation, concentration, and solvent recovery in laboratory workflows.
