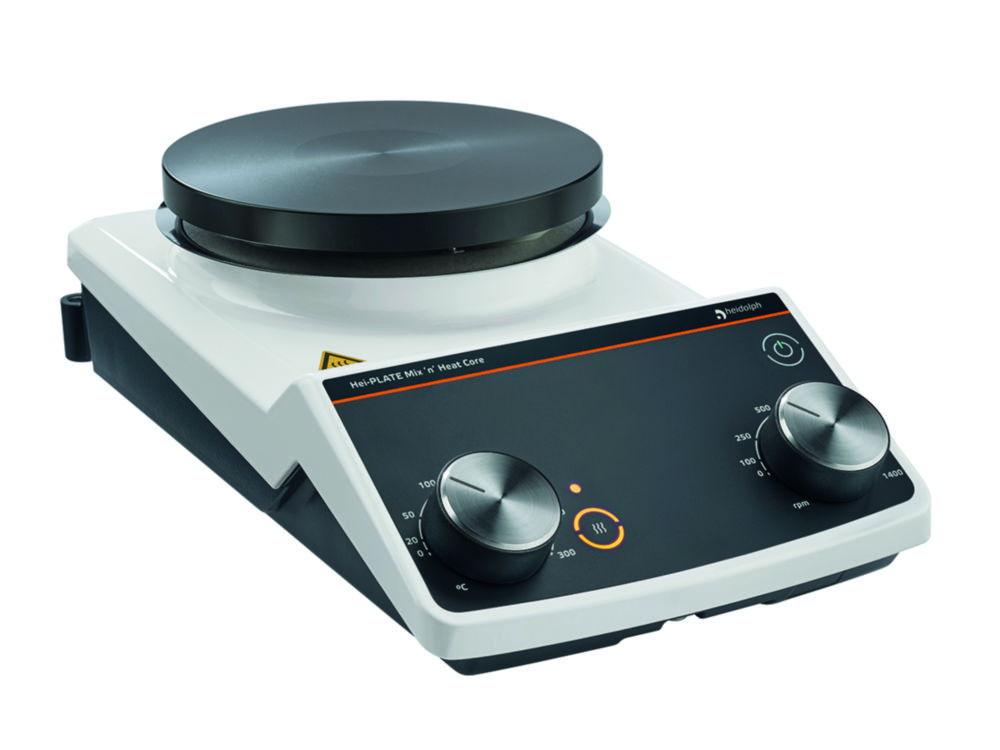

Heidolph Hei-PLATE Mix'n'Heat Core-CH, Ø 145 mm, with CH Cable
Product overview
The Heidolph Hei-PLATE Mix'n'Heat Core-CH Ø 145 mm is a high-performance magnetic stirrer and hotplate designed for precise heating and stirring in laboratory applications. Featuring a 145 mm ceramic-coated aluminum plate, it offers rapid heating up to 300°C and stirring speeds up to 1,400 rpm. The unit is equipped with a CH cable, ensuring compatibility with Swiss power outlets. Ideal for tasks requiring accurate temperature control and efficient mixing.
Key Features:
- Brand: Heidolph
- Plate Diameter: 145 mm
- Heating Capacity: 800 W
- Temperature Range: 20°C to 300°C
- Speed Range: 100 to 1,400 rpm
- Plate Material: Kera-Disk ceramic-coated aluminum
- Power Supply: CH cable for Swiss outlets
- Safety Features: Residual heat indicator, overheat protection
- Dimensions (WxDxH): 168 x 299 x 101 mm
- Weight: Approximately 3 kg
Enhance your laboratory's heating and stirring capabilities with the Heidolph Hei-PLATE Mix'n'Heat Core-CH Ø 145 mm, offering precision, safety, and reliability for various applications.
Frequently Asked Questions
1. What is the Heidolph Hei-PLATE Mix'n'Heat Core-CH, Ø 145 mm, with CH Cable used for?
It is a high-performance magnetic stirrer and hotplate designed for precise heating and stirring in laboratory applications. Featuring a 145 mm ceramic-coated aluminum plate, it offers rapid heating up to 300°C and stirring speeds up to 1,400 rpm. The unit is equipped with a CH cable, ensuring compatibility with Swiss power outlets. Ideal for tasks requiring accurate temperature control and efficient mixing.
2. Is this product suitable for precise heating and stirring in laboratory applications?
Yes. It is designed for precise heating and stirring in laboratory applications, and offers a plate diameter of 145 mm and a heating capacity of 800 W to support this kind of work.
3. What plate diameter and heating capacity does this product have?
It has a plate diameter of 145 mm, a heating capacity of 800 W and a temperature range of 20°C to 300°C.
4. What plate material and power supply does this product offer?
It offers kera-Disk ceramic-coated aluminum, CH cable for Swiss outlets, residual heat indicator, overheat protection and approximately 3 kg.
Product Specifications
- HS Code #84198998
- Colour housingWhite
- Depth299 mm
- Dimensions (WxDxH)168 x 299 x 101 mm
- DisplayAnalogue
- Heating capacity800 W
- Heating temperature20 ... 300 °C
- Height101 mm
- IP codeIP 42
- Max. heating temperature300 °C
- Max. permitted ambient temp.31 °C
- Max. relative humidity rate80 %
- Max. speed1400 1/min
- Max. stirring capacity20 l
- Max. voltage230 V
- Min. heating temperature20 °C
- Min. permitted ambient temperature5 °C
- Min. speed100 1/min
- No. of stirring positions1
- Permitted ambient temperature5 ... 31 °C
- Plug typeCH
- Power supply230 V
- Rated capacity825 W
- Speed100 ... 1,400 1/min
- TypeHei-PLATE Mix'n'Heat Core
- Type of auxiliary energyMains connection
- UNSPSC41103806
- Weight3 kg
- Width168 mm
- With connection ext. temperature sensorYes
- With timerNo
- Working area Ø145 mm
