Representative Image

Grant Block Thermostat QBD4, 4 Blocks, 600 W, 220-240 V

Brand:Grant

Depth

Dimensions (WxDxH)

Max. temperature

No. of exchangeable blocks

Temperature

Type

Weight

Specifications

Compare models
Depth
390 mm
Dimensions (WxDxH)
200 x 390 x 120 mm
Power supply frequency
50/60 Hz
Height
120 mm
Max. temperature
130 °C
Max. voltage
230 V
Min. temperature
+5 °C
No. of exchangeable blocks
4
Power supply
230 V, 50/60 Hz
Temperature stability
±0,1 °C (37 °C)

RM 10,087.00

Inc. GST

Available soon

Product description

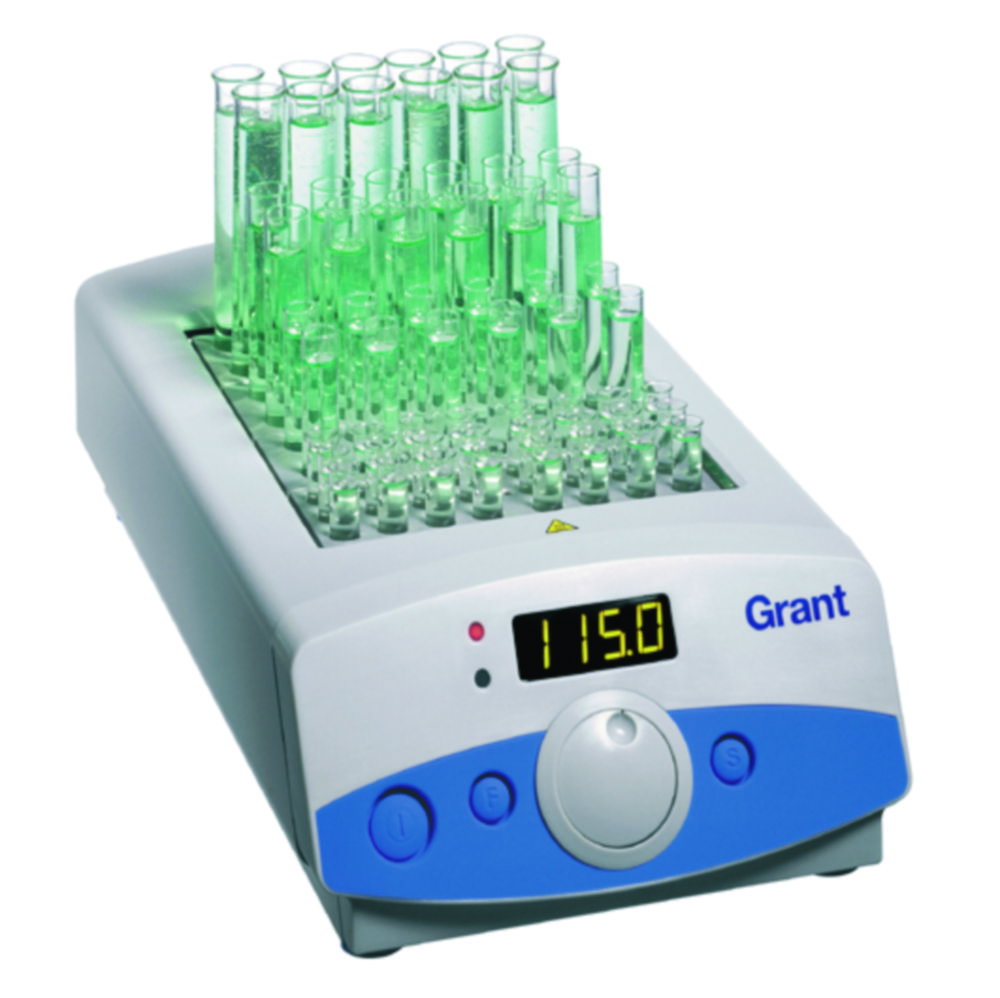

The Grant Block Thermostat QBD4, 4 Blocks, 600 W, 220-240 V, 50/60 Hz, 200 x 380 x 100 mm, With EU + UK Cordset is designed for controlled dry heating of test tubes, microplates and Eppendorf tubes using interchangeable aluminium blocks. This digital block thermostat supports 4 interchangeable blocks and includes a built-in timer, programmable delayed start, RS232 output for data monitoring and a block removal tool for practical laboratory operation.

Key Features:

  • Brand: Grant
  • Product Type: Block thermostat
  • Model: QBD4
  • Block Capacity: 4 interchangeable blocks
  • Power: 600 W
  • Power Supply: 220-240 V, 50/60 Hz
  • Dimensions: 200 x 380 x 100 mm
  • Heating Method: Controlled dry heating with interchangeable aluminium blocks
  • Heat-Up: Fast heat-up time with in-block temperature sensing capability using an external sensor probe
  • Timer: Built-in timer with programmable delayed start
  • Output: RS232 output for data monitoring
  • Supply Includes: EU + UK cordset and block removal tool
  • Block Requirement: Requires interchangeable QB-series blocks, ordered separately
  • Application: Suitable for controlled dry heating of test tubes, microplates and Eppendorf tubes

This Grant QBD4 block thermostat is suitable for laboratories requiring controlled dry heating with four interchangeable block positions and flexible aluminium block options.



Frequently Asked Questions

1. What is the Grant Block Thermostat QBD4, 4 Blocks, 600 W, 220-240 V used for?

It is designed for controlled dry heating of test tubes, microplates and Eppendorf tubes using interchangeable aluminium blocks. This digital block thermostat supports 4 interchangeable blocks and includes a built-in timer, programmable delayed start, RS232 output for data monitoring and a block removal tool for practical laboratory operation.

2. Is this product suitable for controlled dry heating of test tubes, microplates and Eppendorf tubes?

Yes. It is designed for controlled dry heating of test tubes, microplates and Eppendorf tubes, and offers a block capacity of 4 interchangeable blocks and a power of 600 W to support this kind of work.

3. What block capacity and power does this product have?

It has a block capacity of 4 interchangeable blocks, a power of 600 W and a power supply of 220-240 V, 50/60 Hz.

4. What heating method and heat-up does this product offer?

It offers controlled dry heating with interchangeable aluminium blocks, fast heat-up time with in-block temperature sensing capability using an external sensor probe, built-in timer with programmable delayed start and RS232 output for data monitoring.

Downloads

Accessories

Covers for Block thermostats QBD, QBH series

ProductTypeForMfr#Part#AvailabilityPrice
QBL1QBD1QBL19.852 311RM 1,089.00
QBL4QBD4QBL49.852 312RM 1,226.50
QBL2QBD2/QBH2QBL29.852 314RM 1,160.50

Blocks QB, for digital block thermostats QBD/QBH series

ProductFor type of vesselsTypeMfr#Part#AvailabilityPrice
Test tubesQB-E0QB-E09.951 667RM 1,116.50
Centrifuge tubesQB-50QB-506.075 814RM 1,116.50
Test tubesQB-E2QB-E29.951 669RM 1,116.50
Test tubesQB-HQB-H9.951 666RM 1,116.50
Test tubesQB-E1QB-E19.951 668RM 1,116.50

Compare similar models

Block thermostat QBD4 4 blocks, 600W, 220-240V 50/60Hz 200 x 380 x 100 mm, with EU + UK cordset
Available soon
Grant Block Thermostat QBD4, 4 Blocks, 600 W, 220-240 V

RM 10,087.00

Inc. GST

Manufacturer P/N

QBD4

Part Number

9.852 309

Manufacturer

Grant

Depth

390 mm

Block thermostat QBD2 2 blocks, 300W, 220-240V 50/60Hz 200 x 280 x 100 mm, with EU + UK cordset
Available soon
Grant Block Thermostat QBD2, 2 Blocks, 300 W, 220-240 V

RM 8,030.00

Inc. GST

Manufacturer P/N

QBD2

Part Number

9.852 308

Manufacturer

Grant

Depth

285 mm

Block thermostat QBH2 2 blocks, 300W, 220-240V 50/60Hz 200 x 280 x 100 mm, with EU + UK cordset
Available soon
Grant Block Thermostat QBH2, 2 Blocks, 300 W, 220-240 V

RM 10,087.00

Inc. GST

Manufacturer P/N

QBH2

Part Number

9.852 310

Manufacturer

Grant

Depth

295 mm

Block thermostat QBD1 1 block, 150W, 220-240V 50/60Hz 200 x 230 x 100 mm, with EU + UK cordset
Available soon
Grant Block Thermostat QBD1, 1 Block, 150 W, 220-240 V

RM 6,336.00

Inc. GST

Manufacturer P/N

QBD1

Part Number

9.852 307

Manufacturer

Grant

Depth

240 mm

More items to explore

Block heaters, digital, BH-200 series

ProductTypeType of auxiliary energyMfr#Part#AvailabilityPrice
BH-200D-2Mains connection36610-119.852 301RM 7,144.50
BH-200DC-2-HTMains connection36610-329.852 315RM 10,483.00
BH-200D-3Mains connection36610-137.624 685RM 8,041.00
BH-200DC-2Mains connection36610-316.207 050RM 12,243.00
BH-200D-2-HTMains connection36610-219.852 302RM 7,804.50
BH-200D-3-HTMains connection36610-236.323 372RM 7,947.50
