Representative Image

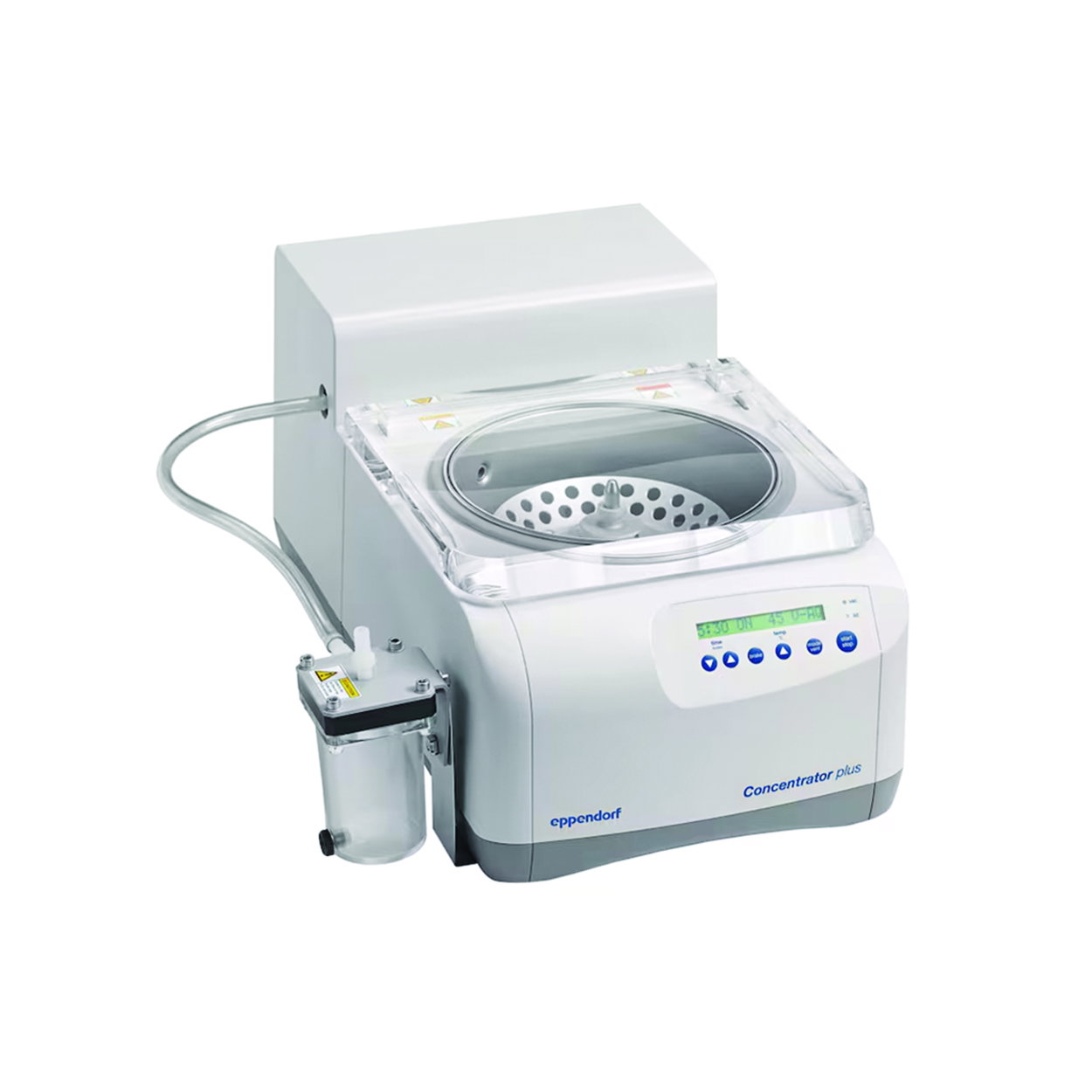

Eppendorf Concentrator plus, Complete System with Rotor F-45-48-11 and Integrated Diaphragm Vacuum Pump, 230 V/50-60 Hz, UK Plug

Brand:Eppendorf

Plug type

Specifications

Compare models
Depth
580 mm
Dimensions (WxDxH)
330 x 580 x 290 mm
Power supply frequency
50/60 Hz
Height
290 mm
Max. speed
1400 1/min
Max. voltage
230 V
Plug type
UK
Power supply
230 V, 50/60 Hz
Rated capacity
350 W
Speed
1,400 1/min

RM 64,405.00

Inc. GST

Available soon

Product description

The Eppendorf Concentrator plus is a versatile vacuum concentrator for the fast, gentle concentration and drying of aqueous, alcohol-based and other samples in microcentrifuge tubes, PCR tubes and plates. This version is supplied with the fixed-angle rotor F-45-48-11 (48 x 1.5/2.0 ml). An integrated diaphragm vacuum pump provides a compact, self-contained system, and the vapour condenser purifies the exhaust air by up to 85 %, protecting the user against unpleasant vapours. It is a reliable workhorse for molecular biology, life science and analytical laboratories.

Key Features:

  • Brand: Eppendorf
  • Model: Concentrator plus
  • Type: Vacuum concentrator (SpeedVac-style)
  • Rotor: Fixed-angle rotor F-45-48-11 (48 x 1.5/2.0 ml)
  • Vacuum Pump: Integrated diaphragm vacuum pump
  • Vapour Condenser: Purifies exhaust air by up to 85 %
  • Power Supply: 230 V/50-60 Hz
  • Plug: UK plug
  • Application: Concentration and drying of aqueous and alcohol-based samples

Scope of Supply:

  • Vacuum concentrator
  • Fixed-angle rotor F-45-48-11 (48 x 1.5/2.0 ml)
  • Diaphragm (membrane) vacuum pump

The Eppendorf Concentrator plus delivers efficient, reproducible sample concentration, making it an ideal addition to laboratories carrying out sample preparation for downstream analysis.



Frequently Asked Questions

1. What is the Eppendorf Concentrator plus, Complete System with Rotor F-45-48-11 and Integrated Diaphragm Vacuum Pump, 230 V/50-60 Hz, UK Plug used for?

It is a versatile vacuum concentrator for the fast, gentle concentration and drying of aqueous, alcohol-based and other samples in microcentrifuge tubes, PCR tubes and plates. This version is supplied with the fixed-angle rotor F-45-48-11 (48 x 1.5/2.0 ml). An integrated diaphragm vacuum pump provides a compact, self-contained system, and the vapour condenser purifies the exhaust air by up to 85 %, protecting the user against unpleasant vapours. It is a reliable workhorse for molecular biology, life science and analytical laboratories.

2. Is this product suitable for Concentration and drying of aqueous and alcohol-based samples?

Yes. It is designed for Concentration and drying of aqueous and alcohol-based samples, and offers a power supply of 230 V/50-60 Hz to support this kind of work.

3. What power supply does this product have?

It has a power supply of 230 V/50-60 Hz.

4. What type and rotor does this product offer?

It offers vacuum concentrator (SpeedVac-style), fixed-angle rotor F-45-48-11 (48 x 1.5/2.0 ml), integrated diaphragm vacuum pump and purifies exhaust air by up to 85 %.

Accessories

Accessories for Concentrator Plus™

ProductDescriptionUNSPSCMfr#Part#AvailabilityPrice
Spacer for using fixed angle rotors in sandwich mode4110480053013160059.776 534RM 401.50
CombiSlide ® Adapter4110480058257060059.776 451RM 2,596.00
Adapter for 0.2ml PCR tubes, for F-45-72-84110480054257230089.776 524RM 214.50

Rotors for Concentrator plus™

ProductTypeDescriptionMfr#Part#AvailabilityPrice
F-45-16-20For 16 tubes 6.5 / 10 ml (20 x 42 ... 55 mm)54900430064.655 996RM 4,213.00
F-45-48-11For 48 tubes 1.5 / 2.0 ml (11 x 41/11 x 47 mm)54900300019.776 465RM 3,338.50
F-45-72-8For 72 tubes 0.5 ml (8 x 31 mm)54900340079.776 498RM 3,338.50
F-40-18-19For 18 tubes 10 ml (19 x 66 mm)54900370069.776 493RM 4,213.00
F-45-70-11For 70 tubes 1.5 / 2.0 ml (11 x 41/11 x 47 mm)54900320049.776 499RM 3,338.50
F-50-8-18For 8 tubes 10 ... 18 ml (18 x 105 ... 128 mm)54900420004.655 995RM 4,213.00
F-45-8-17For 8 conical tubes 15 ml (17 x 116 ... 123 mm)54900380029.776 490RM 4,213.00
F-45-36-15For 36 tubes 3.0 / 5.0 ml (15 x 45 ... 48 mm)54900350039.776 492RM 3,338.50
F-40-36-12For 36 tubes 1.5 ml (12 x 32 mm)54900400079.776 491RM 4,213.00
A-2-VCFor MTP, PCR and Deepwell plates (128 x 86 x 27 mm)54900450099.776 496RM 8,673.50
F-45-24-12For 24 tubes 5 ... 7 ml (12 x 67 ... 100 mm)54900360009.776 489RM 3,338.50
F-35-6-30For 6 conical tubes 15 / 50 ml (17 / 30 x 116 ... 123 mm)54900470019.776 624RM 4,213.00
F-35-8-24For 8 tubes 25 ml (24 x 86 ... 105 mm)54900390099.776 494RM 4,213.00
F-50-8-16For 8 tubes 8 ... 12 ml (16 x 105 ... 120 mm)54900410039.776 463RM 4,213.00
F-45-22-17For 22 tubes 5 ml (17 x 59.4 ... 67.4 mm)54900480086.315 536RM 4,213.00

Compare similar models

Concentrator plus, cpl. system, rotor F-45-48-11 with integrated diaphragm vacuum pump 230V/50-60Hz UK plug

Manufacturer P/N

5305000363

Part Number

4.700 812

Manufacturer

Eppendorf

Plug type

UK

Concentrator plus complete system with integr. membrane vacuum pump and 48 x 1,5/2,0 ml fixed angle rotor

Manufacturer P/N

5305000304

Part Number

9.776 620

Manufacturer

Eppendorf

Plug type

EU

More items to explore

Vacuum concentrator, Concentrator plus™, with integrated membrane vacuum pump

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUConcentrator plus™53050005099.776 622RM 62,766.00
UKConcentrator plus™53050005684.700 813RM 62,766.00
