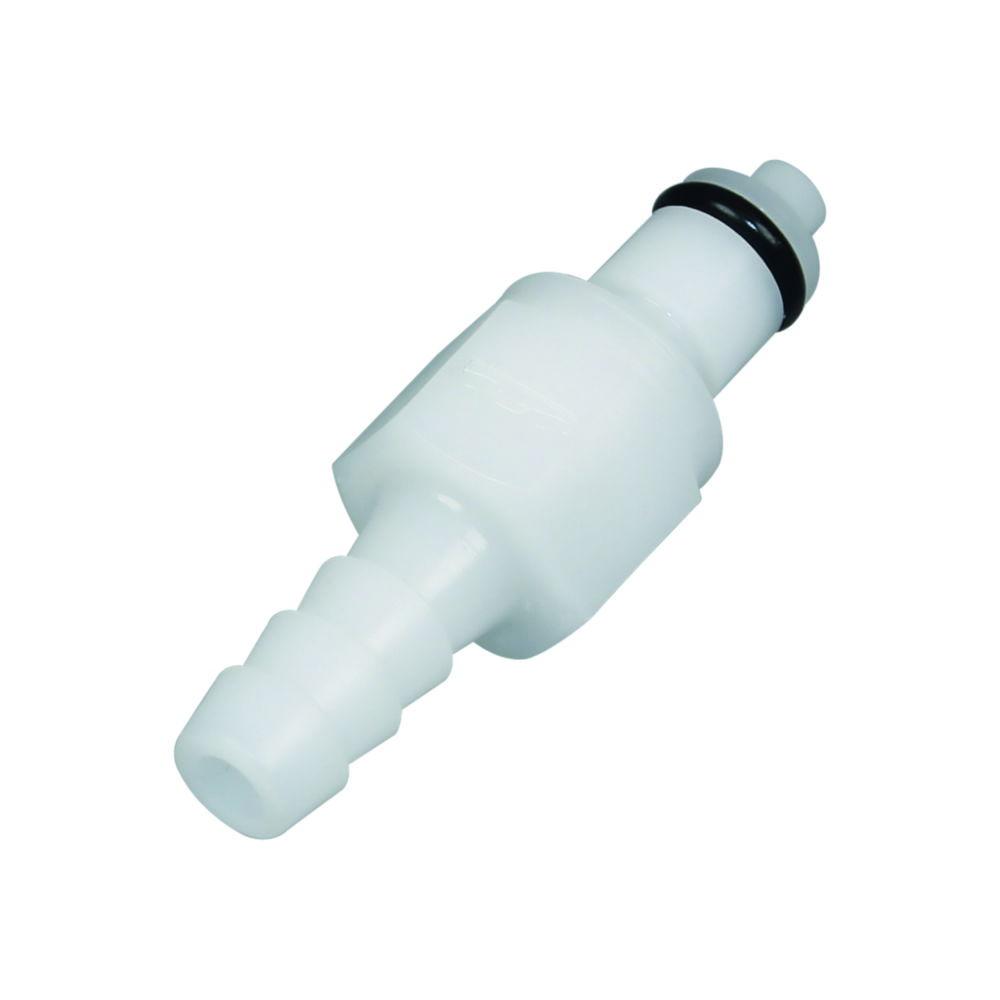

Colder 3/16" Hose Barb Valved In-Line Acetal Coupling Insert
Sold by: Analisa Resources
(5) In stock
Part #: 4.662 919Manufacturer #: PMCD2203
Delivery: 2-4 weeks
Product overview
The Colder 3/16" Hose Barb Valved In-Line Acetal Coupling Insert is designed for standard applications such as optical testing equipment, analytical equipment for chemicals, medical equipment, and gas testing systems. The coupling elements are fitted with a valve, allowing both sides to close tightly when disconnected.
Key Features:
- Brand: Colder
- Product Type: Valved in-line coupling insert
- Connection: 3/16" hose barb
- Material: Acetal main components and stop valve
- Component Material: Stainless steel 316 unlocking button, springs, and pins
- O-Ring Material: Buna-N
- Operation: Unlocking button for one-handed operation
- Design: Integrated connections for short installation lengths and fast installation
- Valve: With stop valve
- Compatibility: Combinable with MC Series couplings
- Application: Suitable for optical testing, analytical chemical equipment, medical equipment, and gas testing systems
This Colder acetal coupling insert is suitable for applications requiring a compact, valved connection with secure shut-off when disconnected.
Product Specifications
- HS Code #39174000
- ColourWhite
- ConnectionTubing nozzle
- Connection int. Ø3/16", 4,8 mm
- Length47.8 mm
- MaterialAcetal
- Max. temp. resistance82 °C
- Min. temp. resistance-40 °C
- Nominal width valve1/8"
- Operating pressure8.3 bar
- Temperature resistance-40 ... 82 °C
- TypePMCD2203
