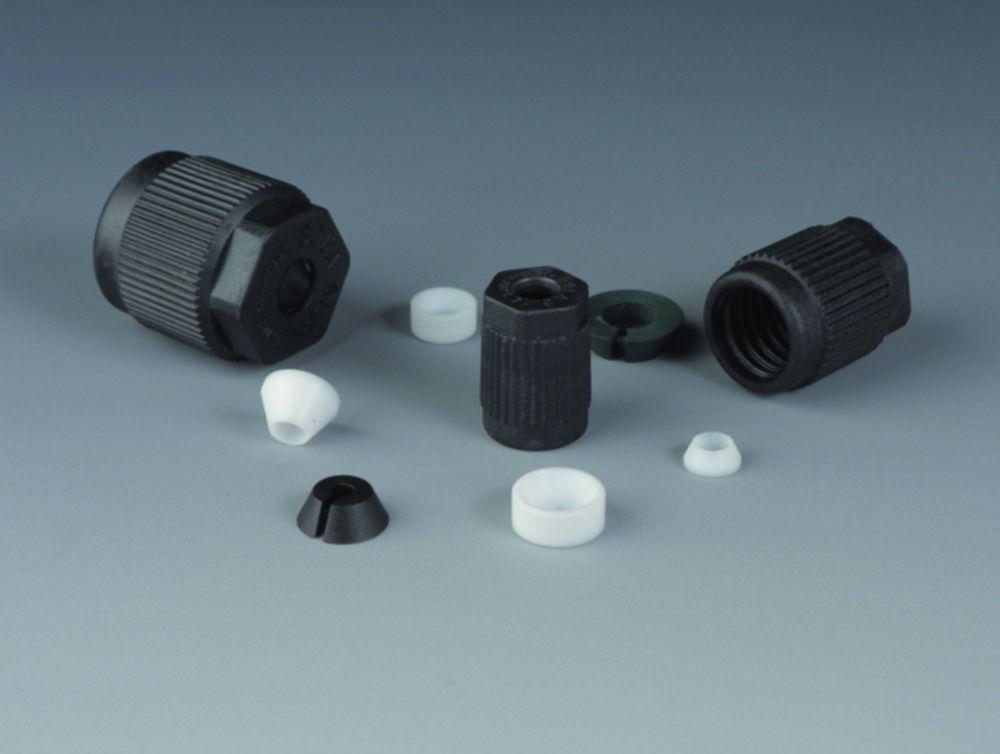

Bohlender HT Laboratory Screw Joint GL 18 Ø 2.0 mm, SW 22, PPS

The Bohlender HT Laboratory Screw Joint GL 18 Ø 2.0 mm, SW 22, PPS is designed for secure and reliable connections in laboratory settings. Manufactured by Bohlender, this screw joint is ideal for connecting equipment and fittings with GL threads to hard-walled tubing or tubes made of glass, plastic, or metal. It is commonly used for fixing probes, thermometers, dip tubes, or cables in reaction vessels.

Key Features:

• Brand: Bohlender
• Material: Black PPS (Polyphenylene Sulfide)
• Thread Size: GL 18
• Outer Diameter of Tubing: 2.0 mm
• Wrench Size: SW 22
• Temperature Range: -50°C to 250°C
• Pressure Resistance: Up to 10 bar
• Vacuum Compatibility: Suitable for vacuum applications
• Sealing Components: V-ring (PPS), tapered ring and sealing ring (both PTFE), O-ring (FKM) for tubing diameters under 3 mm (not exposed to the medium)
• Compliance: FDA conformity

This screw joint offers excellent chemical resistance, ensuring the medium is only exposed to PTFE, making it a reliable choice for various laboratory applications.
