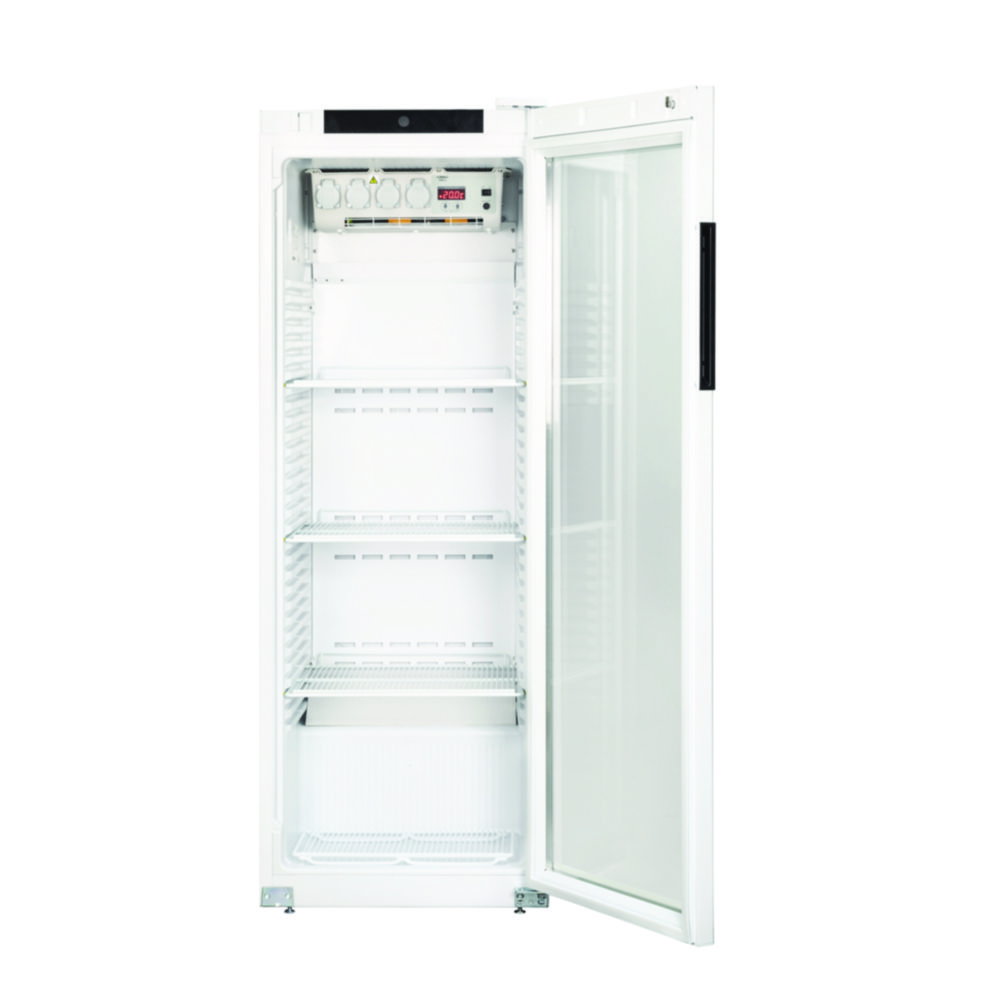

Xylem WTW Thermostat Cabinet TS 700-G/4-i for 4 BSB-OxiTop Meas. Systems, Coolant R-600a, 230 V, 50 Hz, Including Insulated Glass Front Door
Representative image only

Xylem WTW Thermostat Cabinet TS 700-G/4-i for 4 BSB-OxiTop Meas. Systems, Coolant R-600a, 230 V, 50 Hz, Including Insulated Glass Front Door

Sold by: Analisa Resources
Available Soon
Part #: 6.326 267Manufacturer #: 208466
Estimated shipping time:Contact us via live chat or via contact us page

RM 25,201.00

Product overview

The Xylem WTW Thermostat Cabinet TS 700-G/4-i, For 4 BSB-OxiTop Measurement Systems, Coolant R-600a, 230 V, 50 Hz, Including Insulated Glass Front Door is designed for controlled storage and monitoring of OxiTop measurement systems. The insulated glass front door allows visual control of the OxiTop heads without opening the cabinet door.

Key Features:

  • Brand: Xylem WTW
  • Product Type: Thermostat cabinet
  • Model: TS 700-G/4-i
  • Capacity: For 4 BSB-OxiTop measurement systems
  • Coolant: R-600a
  • Voltage/Frequency: 230 V, 50 Hz
  • Door: Insulated glass front door
  • Application: Suitable for visual monitoring of OxiTop heads without opening the door

The Xylem WTW Thermostat Cabinet TS 700-G/4-i provides a practical solution for laboratories requiring controlled temperature storage with clear visual access to compatible OxiTop measurement systems.



Frequently Asked Questions

1. What is the Xylem WTW Thermostat Cabinet TS 700-G/4-i, For 4 BSB-OxiTop Measurement Systems, Coolant R-600a, 230 V, 50 Hz, Including Insulated Glass Front Door used for?

The TS 700-G/4-i is designed for visual monitoring of OxiTop heads without opening the door. This thermostat cabinet format supports routine laboratory work in that application.

2. What are the main specifications of the TS 700-G/4-i?

The main specifications of the TS 700-G/4-i are that the capacity is For 4 BSB-OxiTop measurement systems, the coolant is R-600a and the voltage/frequency is 230 V, 50 Hz. These are the main selection points to compare with the requirements of the laboratory task.

3. Is the TS 700-G/4-i suitable for visual monitoring of OxiTop heads without opening the door?

Yes. The TS 700-G/4-i is suitable for visual monitoring of OxiTop heads without opening the door. The product is designed specifically for that type of work when its stated format and operating characteristics match the laboratory requirement.

4. What type of product is the TS 700-G/4-i?

The TS 700-G/4-i is a thermostat cabinet designed for visual monitoring of OxiTop heads without opening the door. This gives buyers a clear indication of its role in the laboratory workflow.

5. How does the Xylem WTW Thermostat Cabinet TS 700-G/4-i, For 4 BSB-OxiTop Measurement Systems, Coolant R-600a, 230 V, 50 Hz, Including Insulated Glass Front Door compare with Julabo products?

The Xylem WTW Thermostat Cabinet TS 700-G/4-i, For 4 BSB-OxiTop Measurement Systems, Coolant R-600a, 230 V, 50 Hz, Including Insulated Glass Front Door and Julabo temperature-control products serve similar laboratory heating or circulation tasks. Choose the TS 700-G/4-i when its stated temperature range, bath format and circulation features suit the application. Compare Julabo when a different bath size, pumping arrangement or control interface is required.

Product Specifications

  • HS Code #84182199
  • Depth int.423 mm
  • Ext. dim. (WxDxH)597 x 654 x 1,684 mm
  • Ext. depth654 mm
  • Ext. height1684 mm
  • Ext. width597 mm
  • Power supply frequency50 Hz
  • Height int.1459 mm
  • Int. Dim. (WxDxH)475 x 423 x 1,459 mm
  • Int. width475 mm
  • Max. temperature40 °C
  • Max. voltage240 V
  • Min. temperature10 °C
  • Min. voltage220 V
  • Nominal capacity337 l
  • Power supply220 ... 240 V, 50 Hz
  • Rated capacity380 W
  • Temperature stability±0,5 K
  • Temperature10 ... 40 °C
  • TypeTS 700-G/4-i
  • Type of auxiliary energyMains connection
  • UNSPSC41104423
  • Weight69 kg
