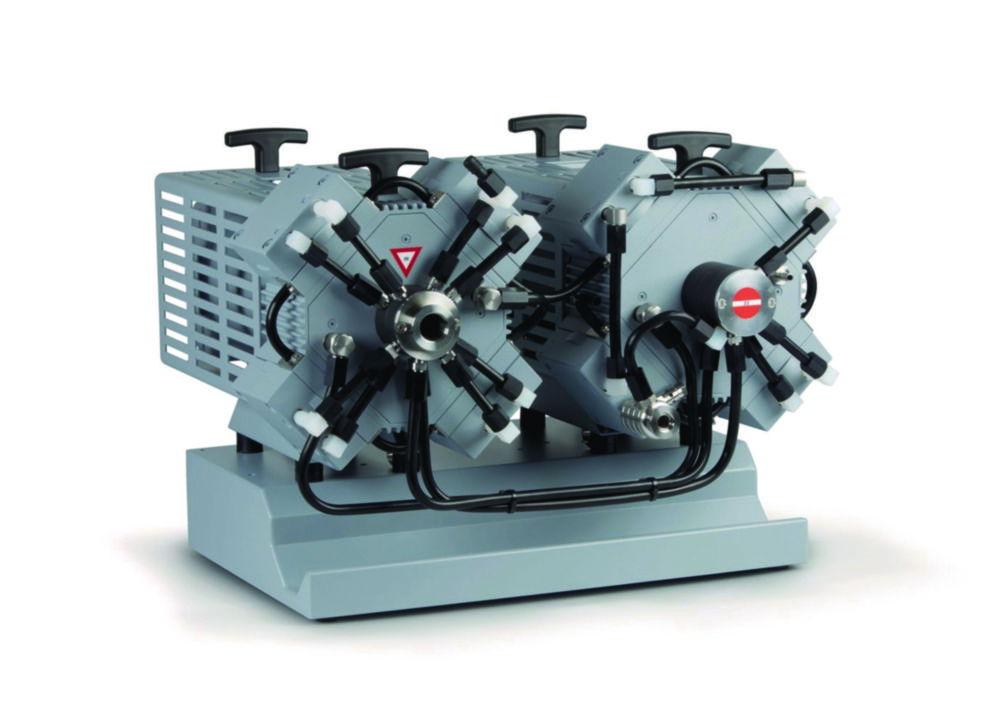

Vacuubrand ATEX Chemical Membrane Pump, Four-Stage, 230 V, 50 Hz
Representative image only

Vacuubrand ATEX Chemical Membrane Pump, Four-Stage, 230 V, 50 Hz

Sold by: Analisa Resources
Available Soon
Part #: 6.259 522Manufacturer #: 20696945
Estimated shipping time:Contact us via live chat or via contact us page

RM 127,066.50

See the available (4) variant products
Product overview

The Vacuubrand ATEX Chemical Membrane Pump is a four-stage, high-performance vacuum pump designed for use in explosive atmospheres. With ATEX certification and superior chemical resistance, this pump is ideal for safe and reliable vacuum applications in demanding laboratory environments.

Key Features:

  • Brand: Vacuubrand
  • Type: Chemical membrane pump
  • Stages: Four-stage for higher vacuum levels
  • Voltage: 230 V
  • Frequency: 50 Hz
  • Explosion Protection: ATEX-certified for flammable solvent use
  • Material: High chemical resistance for durability
  • Application: Ideal for ATEX-regulated labs and chemical handling

Note: An End User Declaration form must be completed after placing the order for this item.

Engineered to deliver consistent and secure operation, the Vacuubrand ATEX Chemical Membrane Pump supports laboratory processes with maximum protection and performance.

Product Specifications
  • HS Code #84141089
  • Connection pressure sideKF DN 16
  • Connection suction sideKF DN 25
  • Depth560 mm
  • Dimensions (WxDxH)430 x 560 x 410 mm
  • Flow rate8.1 m³/h
  • Height410 mm
  • No. of stages4
  • Plug typestranded wire
  • TypeMV 10C EX
  • Ultimate vacuum2 mbar
  • Ultimate vacuum with gas ballast10 mbar
  • UNSPSC40151502
  • Width430 mm
