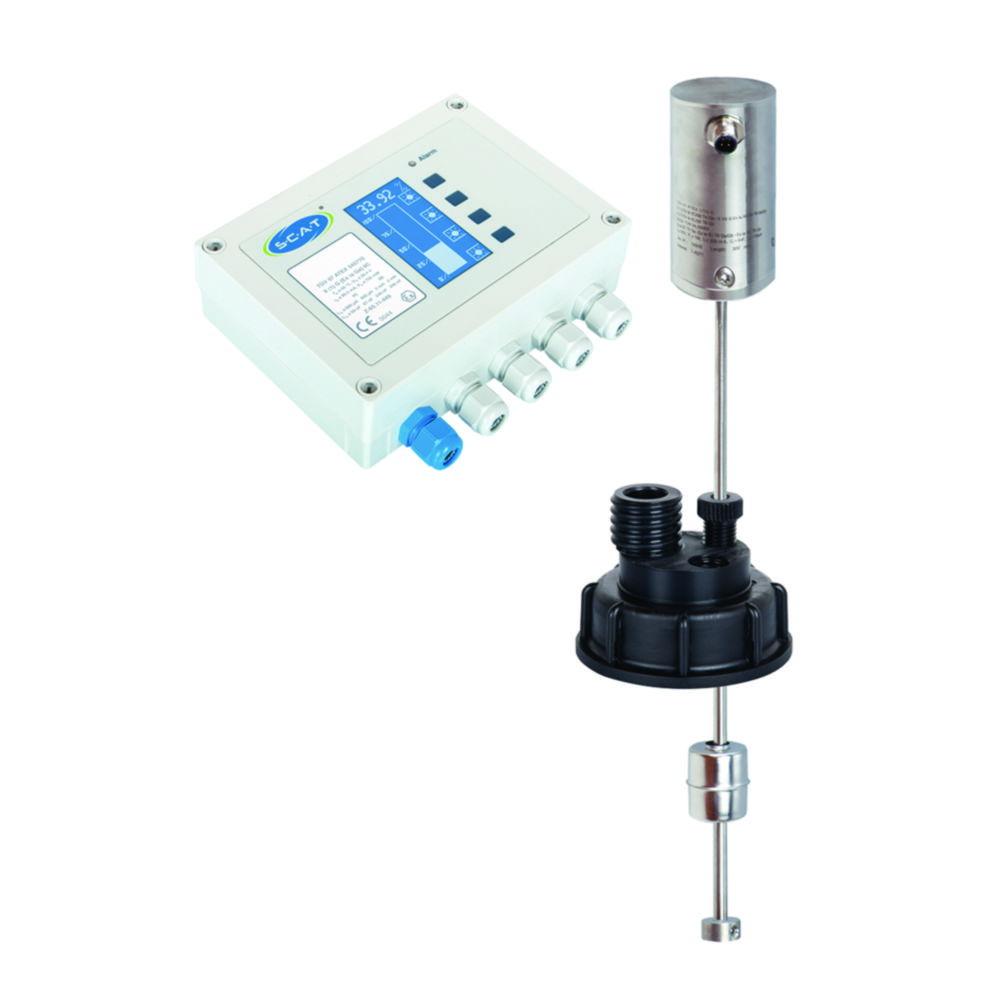

SCAT Continuous Level Control

The SCAT Continuous Level Control is a high-precision solution for permanent fluid level monitoring in laboratory and industrial environments. Featuring a compact design and an independent mains supply, this system enables easy installation—even outside control cabinets. The signal box provides 4 freely configurable outputs for external device control, supporting efficient and automated fluid management.

Key Features:

• Brand: SCAT
• Function: Permanent level measurement with high accuracy
• Output: Signal box offers 4 freely configurable outputs for controlling external devices
• Design: Compact design and independent mains supply allow easy handling and installation even outside control cabinets
• Warning System: Automatic warning for 5 freely selectable levels
• Accuracy: Up to ± 0.5 mm
• Probe Head: Stainless steel 303/316L
• Probe Tube: Stainless steel 1.4571
• Probe Length: 265 mm
• Tube Diameter: 6 mm
• Protection Class: IP68
• Application: Ideal for overflow prevention and fluid level automation

Scope of supply:

• Signalbox UM-O-Ex with display unit
• Stainless steel sensor probe
• Cable with open ends
• Level sensor TORRIX Ex 6 B NT for Bypass without HART

The SCAT Continuous Level Control system is an essential tool for precise and automated fluid monitoring, enhancing operational safety and efficiency.
