Representative Image

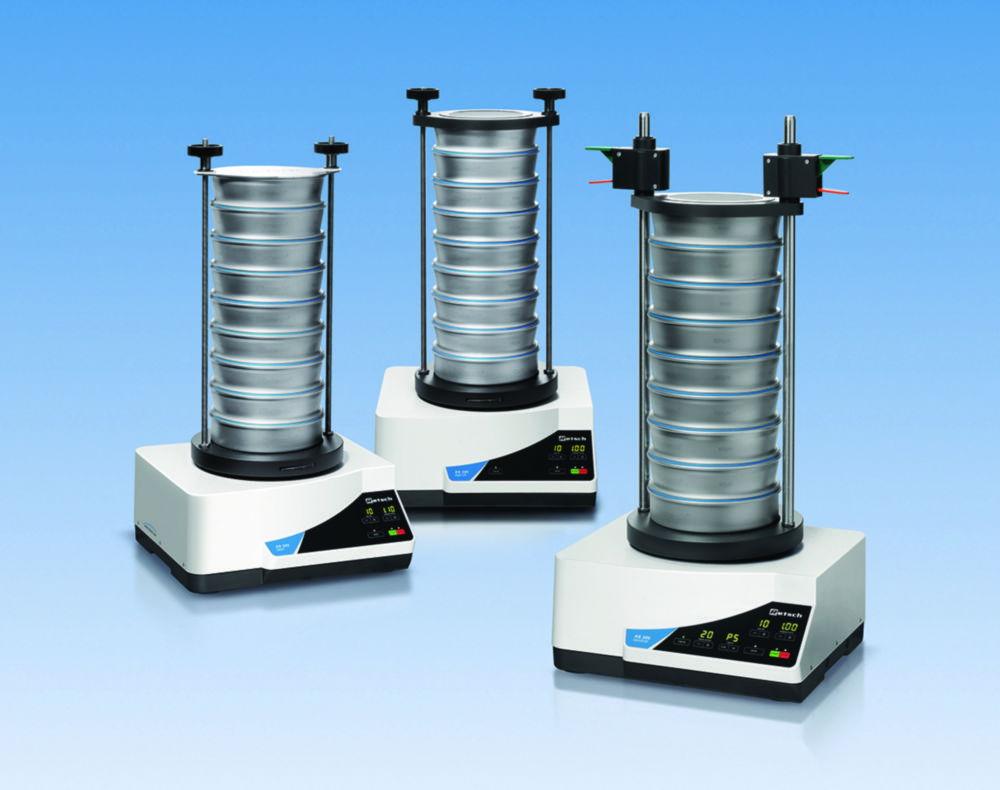

Retsch Vibration Screening Device AS 200 Digit CA 100-240V / 50/60Hz, for Sieves up to 203 mm Ø

Brand:Retsch

Specifications

Amplitude
0.20 ... 3.00 mm
Depth
384 mm
Dimensions (WxDxH)
417 x 384 x 212 mm
Power supply frequency
50/60 Hz
Height
212 mm
IP code
IP 21
Max. amplitude
3.00 mm
Max. feed quantity
3000 g
Max. measurement
25 mm
Max. sieve stack height
510 mm

RM 23,969.00

Inc. GST

Available soon

Product description

The Retsch AS 200 Digit cA is a high-precision vibration screening device designed for particle size analysis in both laboratory and quality control applications. Suitable for test sieves up to Ø 203 mm, this model features controlled amplitude and an electromagnetic drive that ensures efficient throwing motion with angular momentum. With digital display of vibration height and time, it offers accurate and consistent results in both dry and wet sieving tasks.

Key Features:

  • Brand: Retsch
  • Voltage/Frequency: 100–240 V, 50/60 Hz
  • Display: Digital display of vibration height and sieving time
  • Amplitude: Controlled amplitude for consistent results
  • Sieving Method: Suitable for dry and wet sieving
  • Motion: Throwing motion with angular momentum generated by efficient electromagnetic drive
  • Efficiency: Short sieving times for high throughput
  • Interval Operation: Fixed 10-second interval mode
  • Capacity: Max. number of fractions: 9 / 17 (depending on configuration)
  • Maintenance: Maintenance-free operation for long-term reliability

Note: Please order clamping device, test sieves and collecting pan separately.

Scope of Supply:
Vibration screening device AS 200 Digit cA unit only.

The AS 200 Digit cA is ideal for routine particle analysis with precise control and fast results, making it an excellent choice for labs working with powders and granular materials.



Frequently Asked Questions

1. What is the Retsch Vibration Screening Device AS 200 Digit CA 100-240V / 50/60Hz, for Sieves up to 203 mm Ø used for?

It is a high-precision vibration screening device designed for particle size analysis in both laboratory and quality control applications. Suitable for test sieves up to Ø 203 mm, this model features controlled amplitude and an electromagnetic drive that ensures efficient throwing motion with angular momentum. With digital display of vibration height and time, it offers accurate and consistent results in both dry and wet sieving tasks.

2. Is this product suitable for particle size analysis in both laboratory and quality control applications?

Yes. It is designed for particle size analysis in both laboratory and quality control applications, and offers a voltage/frequency of 100–240 V, 50/60 Hz to support this kind of work.

3. What voltage/frequency does this product have?

It has a voltage/frequency of 100–240 V, 50/60 Hz.

4. What display and amplitude does this product offer?

It offers digital display of vibration height and sieving time, controlled amplitude for consistent results, suitable for dry and wet sieving and throwing motion with angular momentum generated by efficient electromagnetic drive.

Accessories

Sieving aids

ProductDescriptionUNSPSCMfr#Part#AvailabilityPrice
Nylon brush for sieving aids pack of 3
Retsch Nylon Brush for Sieving Aids, Pack of 3
Nylon brushes (pack of 3)411050003205000019.826 131RM 770.00
Sieve stand fpr max. 10 sieves up to 203mm, 50mm high
Retsch Sieve Stand for Max. 10 Sieves (203mm, 50mm High)
Test sieve rack for max. 10 sieves up to 203 mm dia., 50 mm height411050003201200019.739 243RM 2,607.00
Set rubber balls 20mm Ø pack of 5
Retsch Set of Rubber Balls (20mm Ø, Pack of 5)
Rubber ball, 20 mm dia.411050003235400019.826 133RM 588.50
Agate balls 10mmØ pack of 10
Retsch Agate Balls (10mm Ø, Pack of 10)
Agate ball, dia. 10 mm411050003235400029.826 134RM 1,012.00
Vulkollan cube 12x12x12mm pack of 10
Retsch Vulkollan Cube (12x12x12mm, Pack of 10)
Vulkollan cube 12 x 12 x 12 mm411050003290200019.826 132RM 588.50
Cubes Vulkollan 20x20x20mm pack of 10
Cubes Vulkollan 20x20x20mm pack of 10
Vulkollan cube 20 x 20 x 20 mm411050003290200026.256 515RM 561.00

Test Sieves, 200 x 50mm, ASTM E 11

ProductMaterialØMfr#Part#AvailabilityPrice
Test sieve 200 x 50 mm, ASTM E 11 45 µm 325 Mesh
Retsch Test Sieve, 200 x 50 mm, 45 µm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320000457.072 178RM 1,182.50
Test sieve 200 x 50 mm, ASTM E 11 75 µm 200 Mesh
Retsch Test Sieve, 200 x 50 mm, 75 µm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320000756.302 995RM 1,001.00
Test sieve 200 x 50 mm, ASTM E 11 125 µm 120 Mesh
Retsch Test Sieve, 200 x 50 mm, 125 µm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320001256.079 527RM 1,001.00
Test sieve 200 x 50 mm, ASTM E 11 150 µm 100 Mesh
Retsch Test Sieve, 200 x 50 mm, 150 µm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320001506.300 558RM 1,001.00
Analysing sieve, 200 x 50 mm, ASTM E 11 212 µm mw. 70 Mesh
Retsch Analysing Sieve 200 x 50 mm, ASTM E 11, 212 µm, 70 Mesh
Stainless steel200 mm601320002126.236 779RM 1,001.00
Analysing sieve, 200 x 50 mm, ASTM E 11 300 µm mw. 50 Mesh
Retsch Analysing Sieve 200 x 50 mm, ASTM E 11, 300 µm, 50 Mesh
Stainless steel200 mm601320003006.236 780RM 1,001.00
Analysing sieve, 200 x 50 mm, ASTM E 11 850 µm mw. 20 Mesh
Retsch Analysing Sieve 200 x 50 mm, ASTM E 11, 850 µm, 20 Mesh
Stainless steel200 mm601320008506.236 785RM 1,028.50
Test sieve 200 x 50 mm, ASTM E 11 53 µm 270 Mesh
Retsch Test Sieve, 200 x 50 mm, 53 µm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320000536.207 269RM 984.50
Test sieve 200 x 50 mm, ASTM E 11 90 µm 170 Mesh
Retsch Test Sieve, 200 x 50 mm, 90 µm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320000906.225 117RM 1,001.00
Test sieve 200 x 50 mm, ASTM E 11 63 µm 230 Mesh
Retsch Test Sieve, 200 x 50 mm, 63 µm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320000636.225 116RM 1,001.00
Test sieve 200 x 50 mm, ASTM E 11 106 µm 140 Mesh
Retsch Test Sieve, 200 x 50 mm, 106 µm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320001066.229 536RM 1,001.00
Analysing sieve, 200 x 50 mm, ASTM E 11 180 µm mw. 80 Mesh
Retsch Analysing Sieve, 200 x 50 mm, ASTM E 11 180 µm, 80 Mesh
Stainless steel200 mm601320001806.236 778RM 1,001.00
Analysing sieve, 200 x 50 mm, ASTM E 11 250 µm mw. 60 Mesh
Retsch Analysing Sieve, 200 x 50 mm, ASTM E 11 250 µm, 60 Mesh
Stainless steel200 mm601320002506.236 459RM 1,001.00
Analysing sieve, 200 x 50 mm, ASTM E 11 600 µm mw. 30 Mesh
Retsch Analysing Sieve, 200 x 50 mm, ASTM E 11 600 µm, 30 Mesh
Stainless steel200 mm601320006006.236 783RM 1,028.50
Test sieve 200 x 50 mm, ASTM E 11 1 mm 18 Mesh
Retsch Test Sieve, 200 x 50 mm, 1.00 mm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320010006.204 517RM 1,067.00
Analysing sieve, 200 x 50 mm, ASTM E 11 355 µm mw. 45 Mesh
Retsch Analysing Sieve, 200 x 50 mm, 355 µm Mw. 45 Mesh, ASTM E 11
Stainless steel200 mm601320003556.236 781RM 1,001.00
Analysing sieve, 200 x 50 mm, ASTM E 11 425 µm mw. 40 Mesh
Retsch Analysing Sieve, 200 x 50 mm, 425 µm Mw. 40 Mesh, ASTM E 11
Stainless steel200 mm601320004256.236 782RM 1,001.00
Test sieve 200 x 50 mm, ASTM E 11 2 mm 10 Mesh
Retsch Test Sieve, 200 x 50 mm, 2.00 mm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320020006.259 448RM 1,067.00
Test sieve 200 x 50 mm, ASTM E 11 6,3 mm 1/4" Mesh
Retsch Test Sieve, 200 x 50 mm, 6.30 mm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320063006.078 206RM 968.00
Analysing sieve, 200 x 50 mm, ASTM E 11 710 µm mw. 25 Mesh
Retsch Analysing Sieve 200 x 50 mm, ASTM E 11 710 µm mw. 25 Mesh
Stainless steel200 mm601320007106.236 784RM 1,028.50
Test sieve 200 x 50 mm, ASTM E 11 2.80 mm 7 Mesh
Retsch Test Sieve, 200 x 50 mm, 2.80 mm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320028006.282 590RM 968.00
Test sieve 200 x 50 mm, ASTM E 11 4.75 mm 4 Mesh
Retsch Test Sieve, 200 x 50 mm, 4.75 mm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320047506.282 592RM 968.00
Test sieve 200 x 50 mm, ASTM E 11 500 µm 35 Mesh
Retsch Test Sieve, 200 x 50 mm, 500 µm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320005006.204 516RM 1,001.00
Test sieve 200 x 50 mm, ASTM E 11 3.35 mm 6 Mesh
Retsch Test Sieve, 200 x 50 mm, 3.35 mm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320033506.266 528RM 968.00
Test sieve 200 x 50 mm, ASTM E 11 4 mm 5 Mesh
Retsch Test Sieve, 200 x 50 mm, 4.00 mm Woven Wire Mesh, Stainless Steel, ASTM E11
Stainless steel200 mm601320040006.203 098RM 968.00
