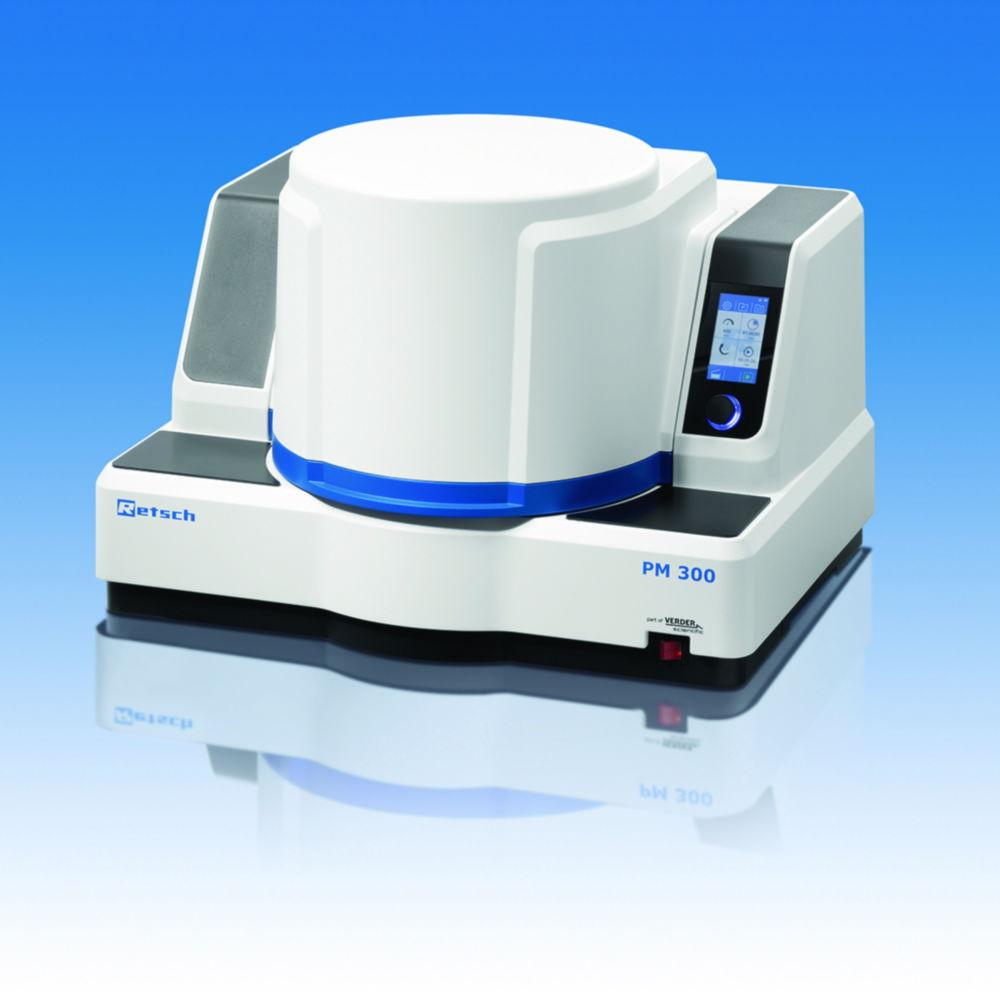

Retsch Planetary Ball Mill PM 300 220-230 V, 50/60 Hz

Brand:Retsch

Specifications

Depth
580 mm
Dimensions (WxDxH)
745 x 580 x 525 mm
Feed particle size
10 mm
Feed quantity
440 ml
Power supply frequency
50/60 Hz
Height
525 mm
IP code
IP 20
Max. feed particle size
10 mm
Max. feed quantity
440 ml
Max. speed
800 1/min

RM 146,509.00

Inc. GST

Available soon

Product description

The Retsch Planetary Ball Mill PM 300 is a powerful and ergonomic benchtop unit equipped with two grinding stations for jar volumes up to 500 mL. It is ideal for mixing and grinding soft, hard, brittle, and fibrous materials in both dry and wet conditions. In addition to standard grinding applications, the PM 300 is also suitable for ultrafine colloidal grinding and mechanochemistry on the nanometer scale.

Key Features:

  • Brand: Retsch
  • Voltage/Frequency: 220–230 V, 50/60 Hz
  • Interface: Touch display with USB and RASPI connectivity
  • Grinding Range: Loss-free size reduction down to the submicron range
  • Grinding Modes: Suitable for dry, wet, and ultrafine grinding as well as mechanochemistry
  • Sample Capacity: Two grinding stations, stackable jars allow processing of up to 4 samples simultaneously
  • Clamping System: Lockable sun wheel for safe and easy clamping of jars
  • Safety: Safety Slider prevents operation without securely clamped jars
  • Stability: Excellent stability with FFCS (Free-Floating Compensation System) technology
  • Programmability: Programmable start time and adjustable timer from 1 s to 99 h 59 min 59 s

Note: Please order grinding jars and grinding balls separately.

Scope of Supply:
Planetary Ball Mill PM 300 unit only.

The PM 300 is the ideal choice for laboratories requiring high-performance, high-precision sample preparation with advanced safety and automation features.

Accessories

Grinding jars EasyFit PM 300

ProductNominal capacityMaterialMfr#Part#AvailabilityPrice
250 mlZirconia0146205004.691 612RM 35,090.00
500 mlSintered corundum0146205034.691 608RM 23,815.00
50 mlSintered corundum0146205074.691 605RM 10,736.00
500 mlAgate0146205064.691 604RM 45,116.50
500 mlZirconia0146205044.691 613RM 40,106.00
80 mlZirconia0146205104.691 610RM 26,631.00
250 mlAgate0146205024.691 603RM 19,349.00
125 mlAgate0146205154.691 602RM 14,965.50
80 mlAgate0146205114.691 601RM 13,161.50
250 mlTungsten carbide0146204974.691 598RM 45,743.50
125 mlTungsten carbide0146205274.691 597RM 33,055.00
50 mlAgate0146205094.691 600RM 12,298.00
80 mlTungsten carbide0146204954.691 596RM 32,274.00
50 mlTungsten carbide0146204944.691 595RM 25,696.00
125 mlZirconia0146205134.691 611RM 29,452.50
250 mlSteel, stainless, hardened0146205194.691 593RM 12,694.00
125 mlSteel, stainless, hardened0146205184.691 592RM 11,984.50
250 mlSintered corundum0146204994.691 607RM 16,527.50
500 mlSteel, stainless, hardened0146205204.691 594RM 19,112.50
80 mlSteel, stainless, hardened0146205174.691 591RM 11,203.50
125 mlSintered corundum0146205124.691 606RM 14,338.50
500 mlTungsten carbide0146204984.691 599RM 82,758.50
50 mlSteel, stainless, hardened0146205164.691 590RM 8,464.50
50 mlZirconia0146205084.691 609RM 22,324.50
12 mlSteel, stainless, hardened0146202396.238 959RM 4,532.00
25 mlSteel, stainless, hardened0146202406.238 960RM 4,999.50

Accessories for planetary ball mill PM 300

ProductDescriptionForMfr#Part#AvailabilityPrice
Spare valve set for aeration lids M8x1PM 3002286400014.691 638RM 1,061.50
Opening aid for planetary ball millPM 3000348600624.691 640RM 1,072.50
Opening aid for safety closure devicePM 3000248600554.691 639RM 654.50
IQ/OQ Documentation for PM 300PM 3009920000414.691 641RM 3,239.50
Adapter for the use of grinding jars 12 ml and 25 mlPM 3000302501824.691 637RM 4,273.50
Adapter for stacking grinding jars 50 ... 80 mlPM 3000302501784.691 636RM 2,640.00
Clamping unit for grinding jarsPM 3002266100054.691 635RM 4,482.50

Frequently asked questions

It is a powerful and ergonomic benchtop unit equipped with two grinding stations for jar volumes up to 500 mL. It is ideal for mixing and grinding soft, hard, brittle, and fibrous materials in both dry and wet conditions. In addition to standard grinding applications, the PM 300 is also suitable for ultrafine colloidal grinding and mechanochemistry on the nanometer scale.
