Representative Image

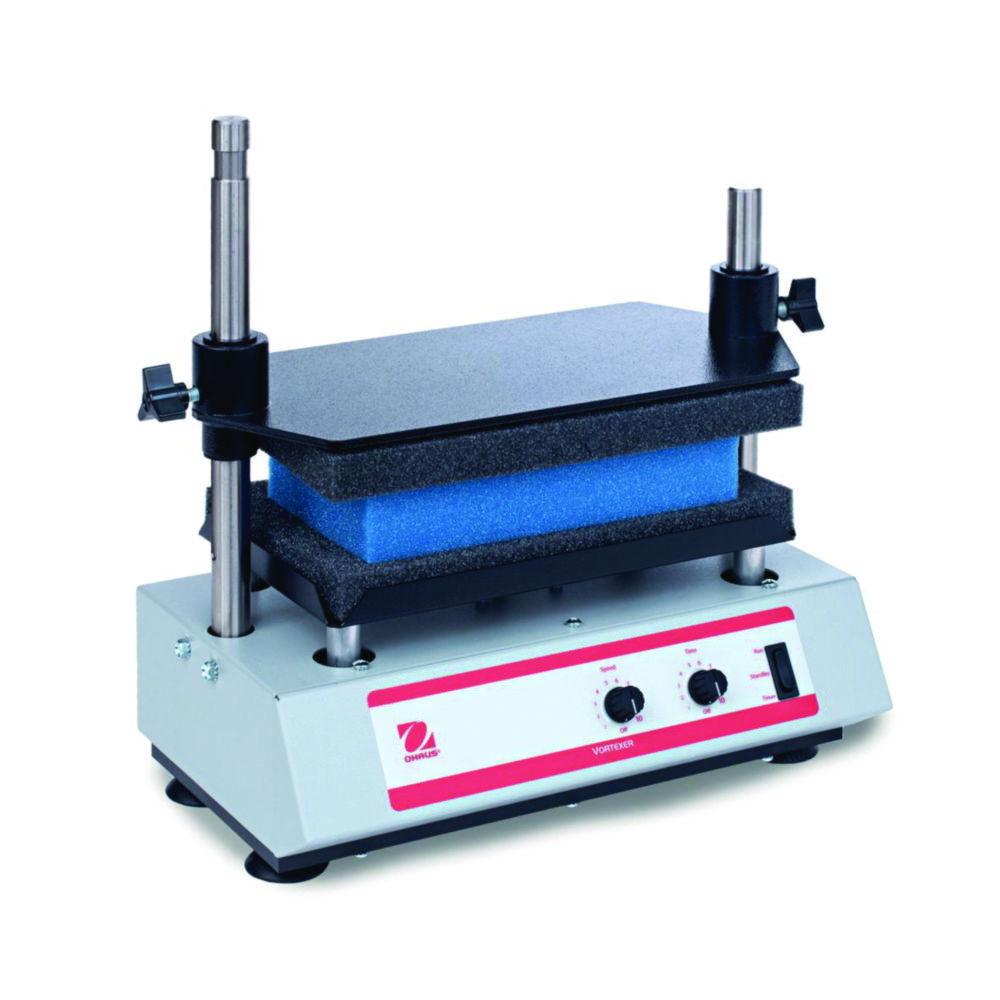

Ohaus Multi-Tube Vortex Mixer VXMTALB Analog, EU Plug, Painted Steel

Brand:OHAUS

Specifications

Depth
241 mm
Dimensions (WxDxH)
384 x 241 x 406 mm
Power supply frequency
50/60 Hz
Height
406 mm
Max. loading capacity
4.5 kg
Max. permitted ambient temp.
40 °C
Max. relative humidity rate
85 %
Max. speed
2400 1/min
Max. voltage
230 V
Min. permitted ambient temperature
4 °C

RM 17,347.00

Inc. GST

Available soon

Product description

The Ohaus Multi-Tube Vortex Mixer VXMTALB Analog, EU Plug, Painted Steel is designed for high-throughput sample processing in laboratories. With a speed range of 1200 to 2400 rpm and a 3.6 mm orbit, it ensures efficient mixing of multiple samples simultaneously. The painted steel housing offers durability, and the analog control provides straightforward operation. It comes equipped with a foam rack accommodating up to 50 tubes of 12 mm diameter, making it ideal for various laboratory applications.

Key Features:

  • Brand: Ohaus
  • Model: Analog model offers an economical alternative when exact speed/time is not required
  • Timer: Timer up to 60 seconds
  • Speed range: 1200 – 2400 rpm
  • Orbit diameter: 3.6 mm
  • Maximum load capacity: 4.5 kg
  • Housing material: Painted steel for durability
  • Dimensions (W x D x H): 384 mm x 241 mm x 406 mm
  • Weight: 20.3 kg
  • Power supply: 230 V, 50/60 Hz
  • Plug type: EU
  • Included Components: Includes foam rack for 50 x 12 mm tubes

Scope of Supply:

  • Vortex mixer including tray pad set for support and one 12 mm test tube foam rack

This vortex mixer is ideal for laboratories requiring efficient and reliable mixing of multiple samples, offering robust performance and user-friendly operation.

Accessories

Accessories for Multi-Tube Vortex Mixers

ProductDescriptionUNSPSCMfr#Part#AvailabilityPrice
Replacement tray pad set (top and bottom)41103816304002454.659 929RM 533.50

Foam rack for Multi-Tube Vortex Mixers

ProductFor type of vesselsColourMfr#Part#AvailabilityPrice
TubesGrey304002384.659 922RM 390.50
TubesBlue304002394.659 923RM 374.00
TubesYellow304002404.659 924RM 374.00
TubesGreen304002414.659 925RM 484.00
TubesWhite304002434.659 927RM 484.00
TubesRed304002424.659 926RM 484.00

Frequently asked questions

It is designed for high-throughput sample processing in laboratories. With a speed range of 1200 to 2400 rpm and a 3.6 mm orbit, it ensures efficient mixing of multiple samples simultaneously. The painted steel housing offers durability, and the analog control provides straightforward operation. It comes equipped with a foam rack accommodating up to 50 tubes of 12 mm diameter, making it ideal for various laboratory applications.
