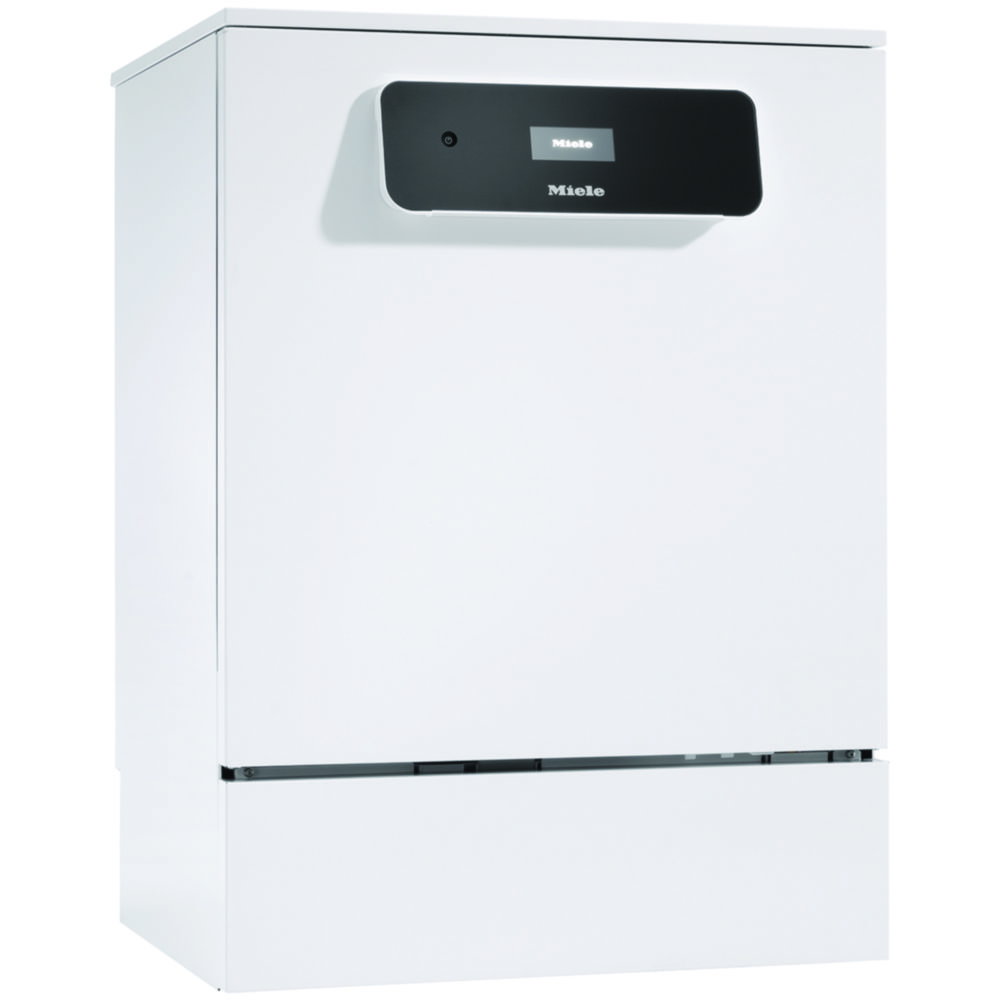

Miele Laboratory Dishwasher PLW 8604 ExploreLine free-standing Unit

Brand:Miele

Specifications

Amperage
16 A
Colour
White
Depth int.
520 mm
Ext. dim. (WxDxH)
598 x 598 x 835 mm
Ext. depth
598 mm
Ext. height
835 mm
Ext. width
598 mm
Power supply frequency
50 Hz
Heating capacity
8.5 kW
Height int.
520 mm

RM 35,695.00

Inc. GST

Available soon

Product description

The Miele Laboratory Dishwasher PLW 8604 ExploreLine Free-Standing Unit is a narrow stainless steel laboratory washer designed for efficient cleaning of laboratory bottles, vials, and glassware. Featuring white exterior cladding, flexible rack loading, EasyLoad support, programmable operation, and WLAN connectivity, it offers reliable performance for routine laboratory washing workflows.

Key Features:

  • Brand: Miele
  • Model: PLW 8604 ExploreLine
  • Design: Free-standing narrow unit, suitable for under-counter installation
  • Capacity: Nominal Capacity 145 l, with load examples of 64 laboratory bottles or 98 vials
  • Material: Stainless steel housing and stainless steel interior
  • Colour: White exterior cladding
  • Controls: M Touch Basic with programmable operation
  • Loading: Flexible use of loading racks with EasyLoad support
  • Dosing: 1 dosing device per door for rinse aid and 1 dosing device per door for powder detergent
  • Connectivity: WLAN interface
  • Dimensions: External dimensions 598 x 598 x 835 mm, internal dimensions 530 x 520 x 520 mm
  • Power: 230 to 400 V, 50 Hz, 16 A, with 8.5 kW heating capacity
  • Weight: 68 kg

This laboratory dishwasher is suitable for laboratories requiring compact, programmable, and reliable glassware washing performance in a stainless steel free-standing format.

Accessories

Baskets for Miele laboratory washers and disinfectors

ProductTypeDescriptionMfr#Part#AvailabilityPrice
A 100Upper basket for modules126426406.266 437RM 4,719.00
A 150Lower basket for modules126663306.266 441RM 4,670.60
A 103Upper basket for lids and accessories126647506.266 440RM 3,459.50
A 101Upper basket / mounting height 160 ±30mm126455906.266 438RM 3,847.80
A 102Upper basket / mounting height 205 ±30 mm126456006.266 439RM 3,503.50
A 202Carriage for sieve trays126671306.266 444RM 7,007.00
A 151Lower basket (W x D x H): 529 x 522 x 88mm, mounting height depending on upper basket126663406.266 442RM 2,535.50
A 200Carriage for pipettes126670606.266 448RM 17,292.00
APLW 106Basket, height-adjustable118546106.492 933RM 4,983.00
APLW 107Basket, height-adjustable118542906.522 957RM 4,983.00
APLW 152Basket, height-adjustable118543106.495 359RM 3,844.50

Injector Modules for Miele laboratory washers and disinfectors

ProductTypeDescriptionMfr#Part#AvailabilityPrice
A 304Module for vials126692306.266 446RM 13,783.00
A 303Module for pipettes126692206.266 445RM 9,630.50
A 300/3Module for laboratory glassware with 8 nozzles111169004.666 033RM 2,755.50
A 860Holding frame for A 300/2 and A 300/3126654104.666 338RM 1,573.00
A 301/5Module for laboratory glassware 3 x 6, 18 injector nozzles111169504.666 032RM 4,163.50
A 862Holding frame 4 x 8126654804.667 530RM 1,545.50
A 302/3Module for laboratory glassware 4 x 8, 16 injector nozzles111169604.666 034RM 5,104.00
A 861Holding frame for A 301/4 and A 301/5126654404.666 339RM 2,112.00
A 306/1Module for 4 x 1-2 l measuring cylinder126831006.315 109RM 15,972.00
A 313Module for processing large-volume laboratory glassware110559706.315 260RM 7,436.00
A 302/2Module for narrow-necked jars/bottles126692104.666 337RM 2,233.00
A 312Module for up to 8 viscometers110544706.325 484RM 7,073.00
A 613Module for the optimal processing of volumetric and measuring pipettes126700206.314 997RM 5,296.50
A 300/2Module without nozzles, can be fitted with 8 nozzles126687806.316 385RM 1,281.50
A 301/4Module without nozzles, can be fitted with 18 nozzles126687906.275 696RM 1,754.50
A 621Module for the optimal processing of laboratory glassware, with 20 injector stations126781104.682 497RM 3,971.00
A 612Module for the optimal processing of large-volume laboratory glassware126700004.682 500RM 8,585.50
A 620Module for the optimal processing of laboratory glassware, with 10 injector stations126781004.682 495RM 3,553.00

Frequently asked questions

The PLW 8604 ExploreLine is designed for the intended laboratory application. The stated format and features make the product suitable for routine laboratory work within that application.
