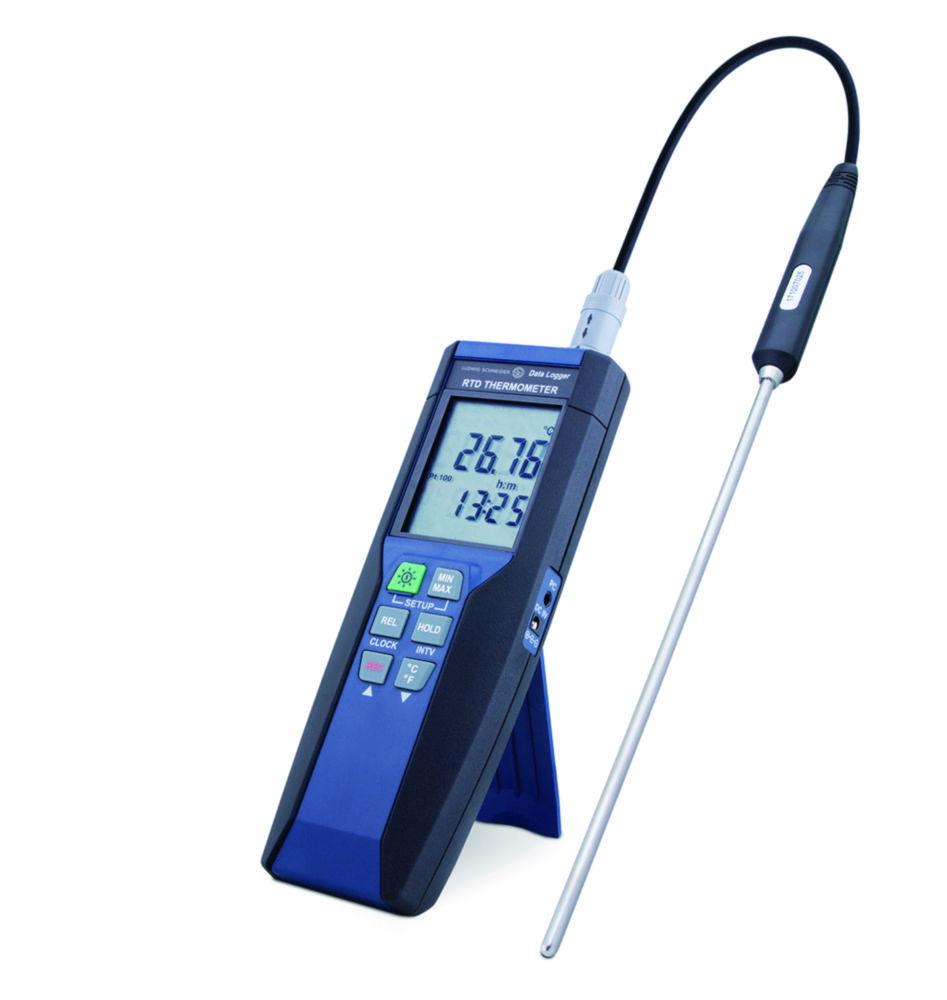

Ludwig Schneider Precision Hand-Held Measuring Instrument With Pt100 Data Logger Function, Type 13760, Measuring Range -100...+400°C, Resolution 0.01°C
Representative image only

Ludwig Schneider Precision Hand-Held Measuring Instrument With Pt100 Data Logger Function, Type 13760, Measuring Range -100...+400°C, Resolution 0.01°C

Sold by: Analisa Resources
Available Soon
Part #: 6.313 342Manufacturer #: 70541
Estimated shipping time:Contact us via live chat or via contact us page

RM 2,843.50

Product overview

The Ludwig Schneider Precision Hand-Held Measuring Instrument With Pt100 Data Logger Function, Type 13760, Measuring Range -100...+400°C, Resolution 0.01°C is designed for highly accurate temperature measurement using resistance thermometers. Equipped with a Pt100 temperature sensor and integrated data logger function, this instrument provides precise and reliable readings for laboratory and industrial applications.

Key Features:

  • Brand: Ludwig Schneider
  • Type: 13760
  • Measuring Range: -100...+400°C
  • Resolution: 0.01°C
  • Sensor: Pt100 temperature sensor, 4-wire, class A, IEC751 (replaceable)
  • Functions: °C/°F selection, min/max memory, freeze display, calibration mode, data logger, automatic switch-off
  • Memory Capacity: 16000 values
  • Relative Measurement: Saves last measured temperature and displays difference to similar measurement
  • Display: Date/time, backlit, battery status indicator

Scope of supply: Thermometer, Pt100 temperature sensor, carrying case, power adapter.

This precision hand-held measuring instrument ensures dependable and detailed temperature monitoring for demanding laboratory environments.

Product Specifications
  • HS Code #90258040
  • Battery/rechargeable battery1 x 9 V
  • Cable length1.5 m
  • Depth65 mm
  • Sensor Ø5 mm
  • Dimensions (WxDxH)185 x 65 x 36 mm
  • Height36 mm
  • Length sensor230 mm
  • Max. temperature400 °C
  • Max. voltage battery/ rechargeable battery9 V
  • Max. voltage9 V·DC
  • Min. temperature-100 °C
  • No. of batteries/ rechargeable batteries1
  • Power supply9 V·DC
  • Sensor (ØxL)5 x 230 mm
  • Temperature-100 ... 400 °C
  • Type13760
  • Type of auxiliary energyBattery/mains connection
  • Type of probePt 100
  • Width185 mm
