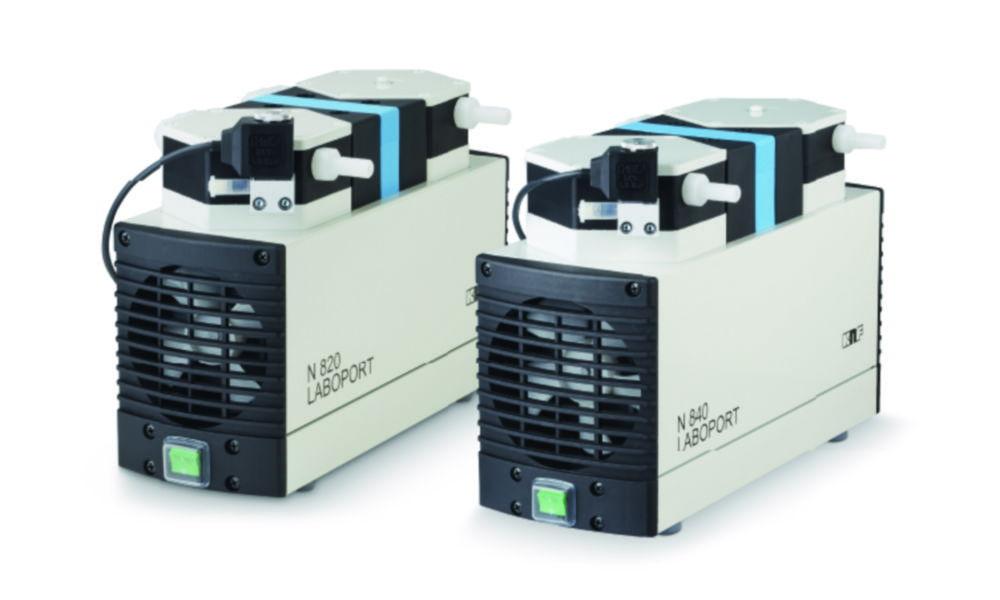

Representative image only
LABOPORT® Vacuum pump N 840.3 FT 40.18 34l/min., IP 44
Sold by: Analisa Resources
Available Soon
Part #: 9.880 616Manufacturer #: 312297/026365
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
- Application: Rotary evaporation, Distillation, Vacuum oven, Centrifugal concentration
- Integrated KNF self-drying system ensures that condensate is quickly removed from the pump heads without the vacuum being altered. This significantly reduces process time and preserves the pump heads.
- Chemically resistant and thus ideal for use with extremely aggressive/corrosive gases and vapors
Product Specifications
- HS Code #84141089
- Connection pressure sideID 10 mm
- Connection suction sideID 10 mm
- Depth341 mm
- Dimensions (WxDxH)189 x 341 x 239 mm
- Flow rate34 l/min
- Power supply frequency50 Hz
- Height239 mm
- Material media contactPTFE/PTFE-coated/FFPM
- Max. overpressure1 bar
- Max. permitted ambient temp.40 °C
- Max. voltage230 V
- Min. permitted ambient temperature5 °C
- Power supply230 V, 50 Hz
- TypeN 840.3 FT.40.18
- Type of auxiliary energyMains connection
- Ultimate vacuum10 mbar
- UNSPSC40151502
- Weight12.9 kg
- Width189 mm
Downloads
- Data Sheet for Laboport Self Drying Vacuum PumpDownload
