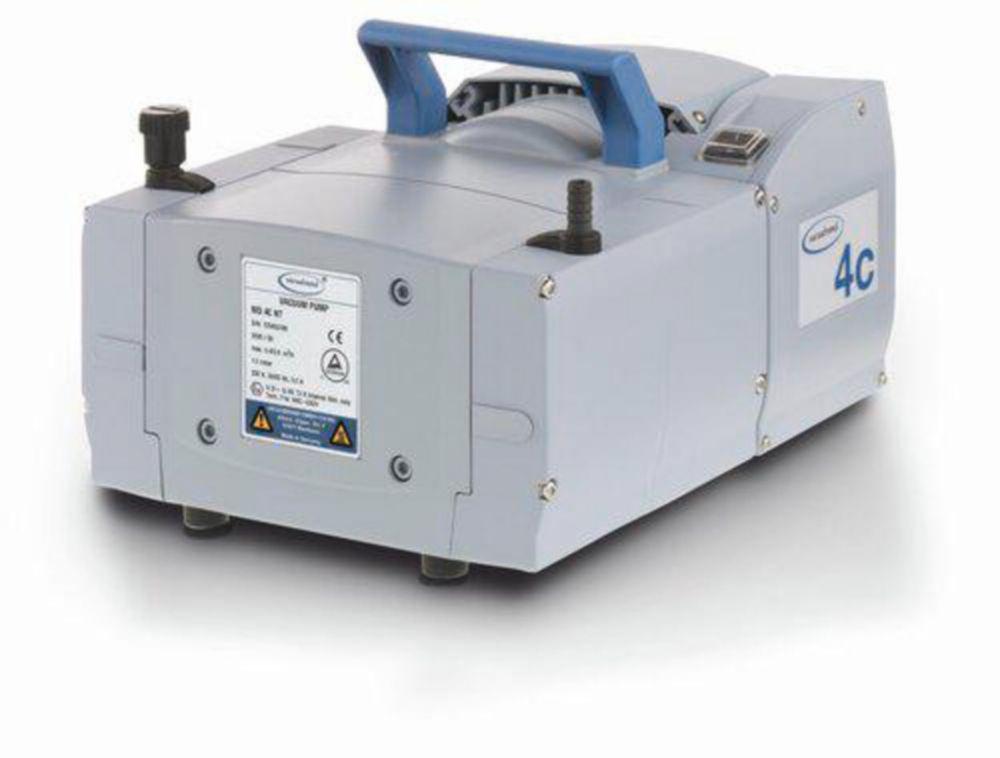

Vacuubrand Chemistry Diaphragm Pump MD 4C NT, Three-Stage, 230 V / 50 Hz, with CEE Plug

The Vacuubrand MD 4C NT is a high-performance, three-stage diaphragm pump designed for continuous, oil-free pumping of corrosive gases and vapors in laboratory settings. Operating at 230 V with a frequency of 50 Hz, this pump comes equipped with a CEE plug for convenient integration into your laboratory infrastructure.

Key Features:

• Brand: Vacuubrand
• Type: Three-stage diaphragm pump for high-performance vacuum generation
• Voltage: 230 V
• Frequency: 50 Hz
• Plug Type: CEE plug for easy connection
• Ultimate Vacuum: 1.5 mbar (1.1 torr)
• Ultimate Vacuum with Gas Ballast: 3 mbar (2.2 torr)
• Max. Pumping Speed at 50 Hz: 3.4 m³/h
• Number of Heads: 4
• Number of Stages: 3
• Inlet Connection: Hose nozzle DN 8–10 mm
• Outlet Connection: Hose nozzle DN 8–10 mm
• Rated Motor Power: 0.25 kW
• Rated Motor Speed at 50 Hz: 1500 min⁻¹
• Protection Class (IEC 60529): IP 40
• Dimensions (L x W x H): 328 mm x 243 mm x 198 mm
• Weight: 14.3 kg
• Noise Level: 45 dBA
• ATEX Conformity: II 3/- G Ex h IIC T3 Gc X (Internal Atm. only)

This diaphragm pump is an essential tool for laboratories that require a dependable, efficient vacuum pump for a wide range of chemical and sample processing applications. Its robust construction and high chemical resistance make it suitable for demanding environments.
