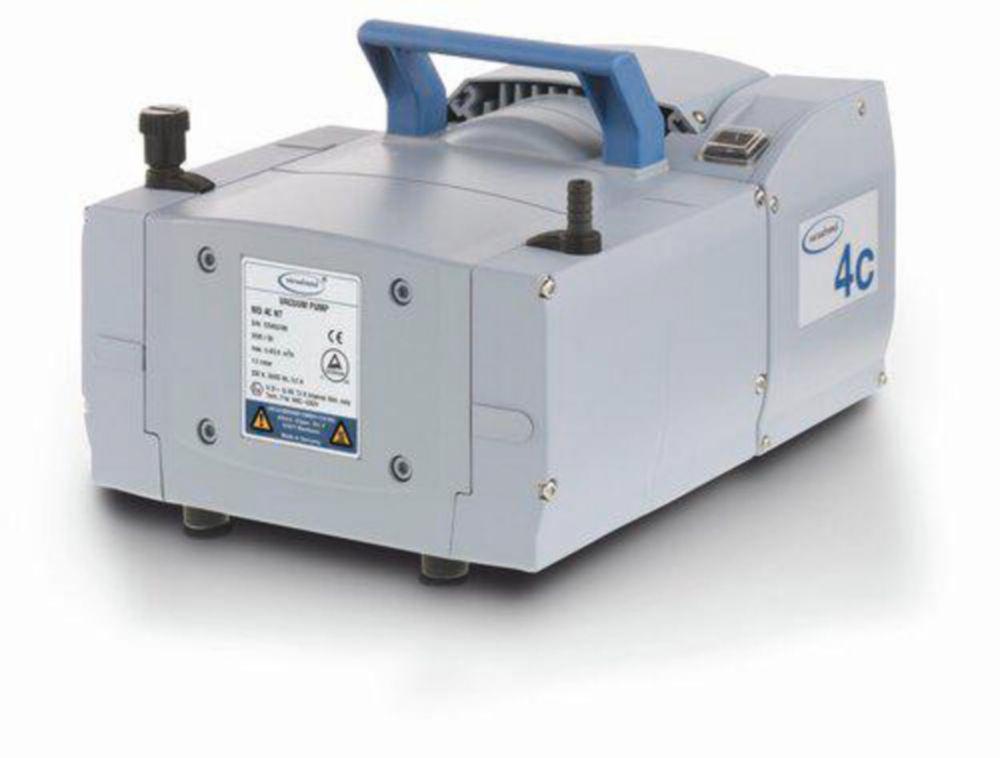

The Vacuubrand MD 4C NT is a high-performance, oil-free diaphragm vacuum pump designed for chemical laboratories requiring reliable and contamination-free vacuum generation. Operating at 230 V with a Swiss (CH) plug, this three-stage pump offers a maximum pumping speed of 3.4 m³/h and achieves an ultimate vacuum of 1.5 mbar (1.1 torr). Its chemically resistant construction ensures durability when handling aggressive solvents and vapors.

Key Features:

<ul>
 <li>Brand: Vacuubrand</li>
 <li>Model: MD 4C NT</li>
 <li>Voltage/Frequency: 230 V / 50 Hz</li>
 <li>Maximum Pumping Speed: 3.4 m³/h (50 Hz)</li>
 <li>Ultimate Vacuum: 1.5 mbar (1.1 torr)</li>
 <li>Ultimate Vacuum with Gas Ballast: 3 mbar (2.2 torr)</li>
 <li>Number of Stages: 3</li>
 <li>Number of Heads: 4</li>
 <li>Inlet/Outlet Connection: Hose nozzle DN 8–10 mm</li>
 <li>Rated Motor Power: 0.25 kW</li>
 <li>Rated Motor Speed: 1500 min⁻¹ (50 Hz)</li>
 <li>Protection Class: IP 40 (IEC 60529)</li>
 <li>Dimensions (L x W x H): 328 x 243 x 198 mm</li>
 <li>Weight: 14.3 kg</li>
 <li>Noise Level: 45 dBA</li>
 <li>Ambient Temperature Range (Operation): 10°C to 40°C</li>
 <li>Ambient Temperature Range (Storage): -10°C to 60°C</li>
 <li>Max. Back Pressure (abs.): 1.1 bar</li>
 <li>Certifications: NRTL certified</li>
</ul>

This pump is ideal for applications such as vacuum filtration, rotary evaporation, and degassing in chemical laboratories, offering maintenance-free operation with high chemical resistance.

Vacuubrand MD 4C NT Chemistry Diaphragm Pump offers reliable, oil-free vacuum performance with 3.4 m³/h flow rate and 1.5 mbar ultimate vacuum. Ideal for chemical laboratory applications.


Vacuubrand MD 4C NT Chemistry Diaphragm Pump – 230 V, 50 Hz, CH Plug

Vacuubrand Chemistry Diaphragm Pump MD 4C NT, Three-Stage, 230 V, 50 Hz, CH Plug

Chemistry diaphragm pump MD 4C NT three-stage, 230 V~ 50 Hz plug CH

The Vacuubrand MD 4C NT is a high-performance, three-stage diaphragm pump designed for continuous, oil-free pumping of corrosive gases and vapors in laboratory settings. Operating at 230 V with a frequency of 50 Hz, this pump comes equipped with a CEE plug for convenient integration into your laboratory infrastructure.

Key Features:

<ul>
 <li>Brand: Vacuubrand</li>
 <li>Type: Three-stage diaphragm pump for high-performance vacuum generation</li>
 <li>Voltage: 230 V</li>
 <li>Frequency: 50 Hz</li>
 <li>Plug Type: CEE plug for easy connection</li>
 <li>Ultimate Vacuum: 1.5 mbar (1.1 torr)</li>
 <li>Ultimate Vacuum with Gas Ballast: 3 mbar (2.2 torr)</li>
 <li>Max. Pumping Speed at 50 Hz: 3.4 m³/h</li>
 <li>Number of Heads: 4</li>
 <li>Number of Stages: 3</li>
 <li>Inlet Connection: Hose nozzle DN 8–10 mm</li>
 <li>Outlet Connection: Hose nozzle DN 8–10 mm</li>
 <li>Rated Motor Power: 0.25 kW</li>
 <li>Rated Motor Speed at 50 Hz: 1500 min⁻¹</li>
 <li>Protection Class (IEC 60529): IP 40</li>
 <li>Dimensions (L x W x H): 328 mm x 243 mm x 198 mm</li>
 <li>Weight: 14.3 kg</li>
 <li>Noise Level: 45 dBA</li>
 <li>ATEX Conformity: II 3/- G Ex h IIC T3 Gc X (Internal Atm. only)</li>
</ul>

This diaphragm pump is an essential tool for laboratories that require a dependable, efficient vacuum pump for a wide range of chemical and sample processing applications. Its robust construction and high chemical resistance make it suitable for demanding environments.

The Vacuubrand Chemistry Diaphragm Pump MD 4C NT—three-stage, high-performance pump with CEE plug for laboratory applications.


Vacuubrand Chemistry Diaphragm Pump MD 4C NT, Three-Stage, 230 V / 50 Hz, with CEE Plug


Chemistry diaphragm pump MD 4C NT three-stage, 230 V~ 50 Hz plug CEE

Chemistry diaphragm pump MD 4C NT, three stage, certification (NRTL): C/US, 230 V / 50-60 Hz, UK/IN mains cable_100241237

The Vacuubrand Chemistry Diaphragm Pump MD 4C NT is a high-performance, oil-free vacuum pump designed for continuous operation in laboratory and industrial settings. With its three-stage design, it provides efficient and reliable vacuum generation. Operating at 230 V / 50–60 Hz and equipped with a UK/IN mains cable, this pump offers flexibility and convenience for various laboratory applications.

Key Features:
<ul>
 <li>Brand: Vacuubrand</li>
 <li>Model: MD 4C NT</li>
 <li>Design: Three-stage diaphragm pump</li>
 <li>Voltage: 230 V / 50–60 Hz</li>
 <li>Power Cord: UK/IN mains cable</li>
 <li>Flow Rate: 3.4 m³/h (50 Hz)</li>
 <li>Ultimate Vacuum: 1.5 mbar / 1.1 torr</li>
 <li>Ultimate Vacuum with Gas Ballast: 3 mbar / 2.2 torr</li>
 <li>Noise Level: 45 dBA</li>
 <li>Dimensions (L × W × H): 328 × 243 × 198 mm</li>
 <li>Weight: 14.3 kg</li>
 <li>Inlet/Outlet Connection: Hose nozzle DN 8–10 mm</li>
 <li>Certification: NRTL C/US</li>
</ul>

This pump is ideal for applications requiring reliable and quiet vacuum performance, such as vacuum ovens, filtration processes, and general laboratory use. Its robust construction and low maintenance design make it a valuable addition to any lab.

Oil-free, three-stage Vacuubrand MD 4C NT diaphragm pump with 230V operation and UK/IN mains cable for efficient lab vacuum applications.


Vacuubrand Chemistry Diaphragm Pump MD 4C NT 230V UK/IN Mains Cable


Vacuubrand Chemistry Diaphragm Pump MD 4C NT, Three-Stage, Certification (NRTL): C/US, 230 V / 50–60 Hz, UK/IN Mains Cable
