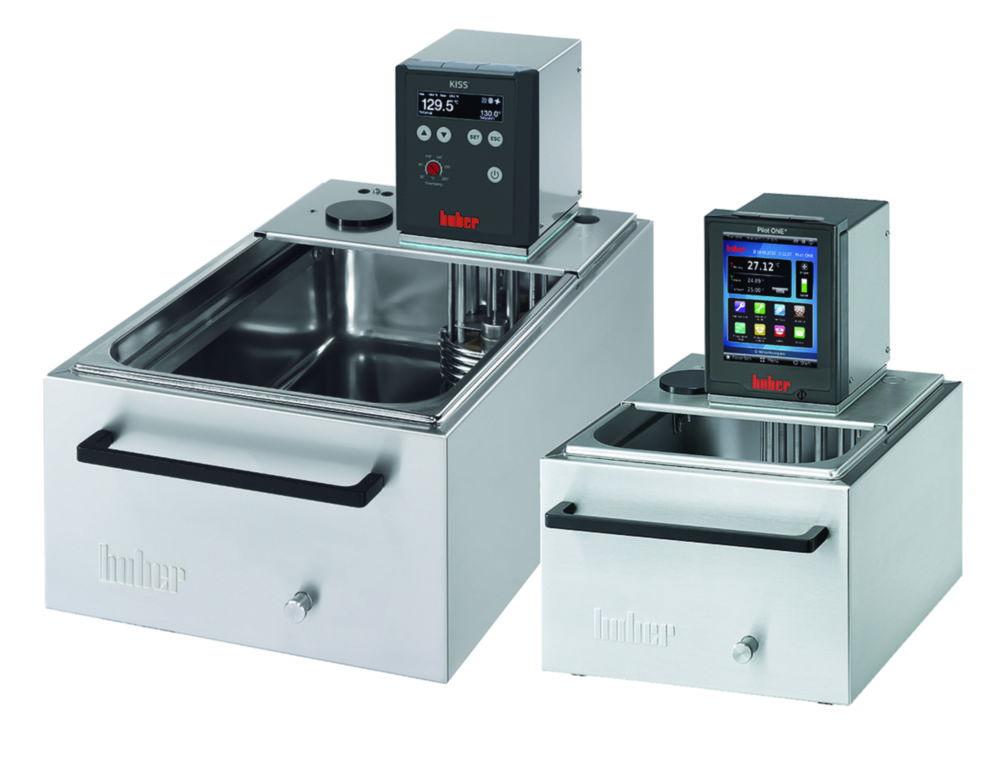

Peter Huber CC-212B Heating Bath Thermostat with Stainless Steel Bath, Temperature Range: 25 To 200°C

The Peter Huber CC-212B is a high-precision heating bath thermostat from the Compatible Control series, featuring a robust 12-liter insulated stainless steel bath. Designed for demanding laboratory and industrial temperature control tasks, this unit is capable of maintaining temperatures up to 200°C with exceptional stability. It is equipped with the top-tier Pilot ONE multi-touch controller, offering a 5.7" TFT color touchscreen and intuitive menu navigation. With its powerful 2.0 kW heating system and a variable-speed pressure/suction pump, the CC-212B is ideal for both internal immersion tasks and the precise temperature control of external open or closed applications. The unit is optimized for reliable operation with a 230V, 50/60Hz power supply.

Key Features:

• Brand: Peter Huber
• Temperature Range: 25 to 200°C (Working range down to -30°C with auxiliary cooling)
• Temperature Stability: Ultra-precise thermal regulation with ±0.02 K stability according to DIN 12876
• Controller: Pilot ONE multi-touch controller with 5.7" TFT touchscreen and integrated graphic functions
• Heating Capacity: Robust 2.0 kW heating power for rapid heat-up and consistent thermal maintenance
• Circulation Pump: Variable speed pressure and suction pump with max. 27 l/min (pressure) and 22 l/min (suction)
• Power Supply: 200-240V 1~/2~ 50/60Hz with a maximum current consumption of 10 A
• Bath Construction: 12-liter insulated stainless steel bath with a 290 x 152 mm opening
• Safety Standards: Class III/FL (DIN 12876) overtemperature and low-level protection for use with flammable liquids
• Digital Interfaces: Integrated Ethernet, USB (Host and Device), and RS232 for comprehensive connectivity

The CC-212B features Huber’s "Plug & Play" technology, allowing for easy controller upgrades via the E-grade system. Its high-quality insulation reduces heat loss and enhances energy efficiency during high-temperature operation. Additionally, the unit includes an external Pt100 sensor connection for monitoring process temperatures directly and VPC (Variable Pressure Control) to safeguard sensitive glass apparatus from pressure surges.

Frequently Asked Questions

1. What are the advantages of the insulated stainless steel bath in the CC-212B?
The insulation ensures that the exterior remains safe to touch while minimizing heat loss to the environment, allowing the unit to maintain high temperatures up to 200°C more efficiently.

2. Can I use this model for cooling?
The standard range is 25 to 200°C. However, you can reach 20°C using an optional cooling coil with tap water, or down to -30°C by connecting an external Huber refrigeration unit.

3. Is the CC-212B suitable for external open applications?
Yes, because it is equipped with a variable speed pressure/suction pump and the Pilot ONE controller, it can be used for external open tasks (though optional level control is recommended).

4. How large is the usable space in the bath?
The CC-212B has a bath opening of 290 x 152 mm and a depth of 150 mm, providing 12 liters of capacity for immersing various laboratory vessels.

5. What safety standard does this unit follow?
This model meets Safety Class III (FL) according to DIN 12876, which includes adjustable overtemperature and low-level protection, making it safe for use with flammable bath fluids.
