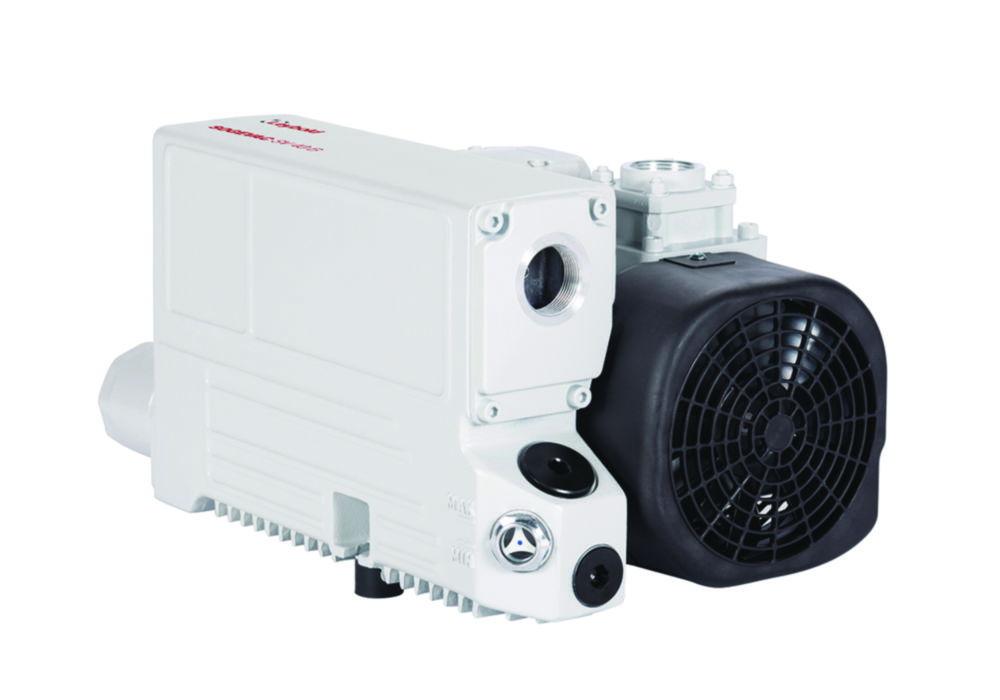

Representative image only
Leybold Rotary Vane Pump SOGEVAC SV40 B Pumping Speed 44.00 m³/h, Single-Stage, Oil-Sealed
Sold by: Analisa Resources
Available Soon
Part #: 4.700 549Manufacturer #: 960303
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Leybold Rotary Vane Pump SOGEVAC SV40 B is designed for high-performance vacuum applications. With a pumping speed of 44.00 m³/h, this single-stage, oil-sealed pump offers exceptional reliability and efficiency. The pump's robust construction ensures long-lasting operation, making it an ideal choice for various industrial and laboratory vacuum systems.
Key Features:
- Brand: Leybold
- Pumping Speed: 44.00 m³/h for efficient vacuum generation
- Design: Single-stage, oil-sealed for reliable performance
- Application: Suitable for industrial and laboratory vacuum systems
- Durability: Built for long-lasting operation in demanding environments
The Leybold Rotary Vane Pump SOGEVAC SV40 B provides the efficiency and reliability you need for your vacuum applications.
Product Specifications
- HS Code #84141025
- Connection pressure sideG1 1/4"
- Connection suction sideG1 1/4"
- Depth425 mm
- Dimensions (WxDxH)284 x 425 x 265 mm
- Flow rate44 m³/h
- Power supply frequency50/60 Hz
- Height265 mm
- IP codeIP 55
- Max. permitted ambient temp.40 °C
- Min. permitted ambient temperature12 °C
- No. of stages1
- Noise level58 db(A)
- TypeSOGEVAC SV 40 B
- Type of auxiliary energyMains connection
- Ultimate vacuum0.5 mbar
- UNSPSC41105109
- Weight43 kg
- Width284 mm
