The Kern OBL 127 Compound Microscope is a professional-grade laboratory microscope designed for routine and advanced research applications. It features an infinity optical system and a fixed, pre-centred Köhler illumination setup for high-contrast, detailed imaging. The microscope includes a quadruple objective turret with 4x, 10x, 40x, and 100x (oil immersion) magnifications and WF10x/20mm widefield eyepieces. The 30° inclined, 360° rotatable binocular tube ensures ergonomic viewing, while coaxial coarse and fine focusing provides precision control. Lighting is provided via either a 3W LED or 20W halogen source, with a lightfield diaphragm and ABBE 1.25 N.A. condenser with aperture diaphragm and Koehler-capability, delivering optimal image brightness and clarity.

Key Features:
<ul>
 <li>Brand: Kern</li>
 <li>Model: OBL 127</li>
 <li>Optical System: Infinity optical system</li>
 <li>Magnification: Objectives 4x, 10x, 40x, 100x (oil immersion)</li>
 <li>Eyepieces: WF10x/20mm (widefield)</li>
 <li>Tube: 30° inclined, 360° rotatable</li>
 <li>Focusing: Coaxial coarse and fine focusing</li>
 <li>Illumination: 3W LED or 20W halogen with adjustable intensity</li>
 <li>Condenser: ABBE 1.25 N.A. with aperture diaphragm, focusable and Köhler-capable</li>
 <li>Diopter Adjustment: One-sided</li>
 <li>Stage: Double-layer mechanical stage with coaxial controls</li>
 <li>Application: Ideal for medical, biological, and educational laboratory work</li>
</ul>

Scope of Supply:
<ul>
 <li>Light microscope</li>
 <li>Dust cover</li>
 <li>Eye cups</li>
 <li>Instruction manual</li>
</ul>

Built for optical precision, ergonomic comfort, and dependable performance, the Kern OBL 127 is a reliable and flexible laboratory assistant for a wide range of microscopy tasks.

Discover the Kern OBL 127 compound microscope with 4x–100x objectives, widefield eyepieces, and LED illumination for professional use.

Kern Compound Microscope OBL 127 – 4x/10x/40x/100x, WF10x20, LED Light

Kern Compound Microscope OBL 127 – 4x/10x/40x/100x, WF10x20 Eyepieces, LED Illumination

Compound microscope OBL 127 4/10/40/100. WF10x20. LED

Compound microscope OBL 137 4/10/40/100. WF10x20. LED_100221393

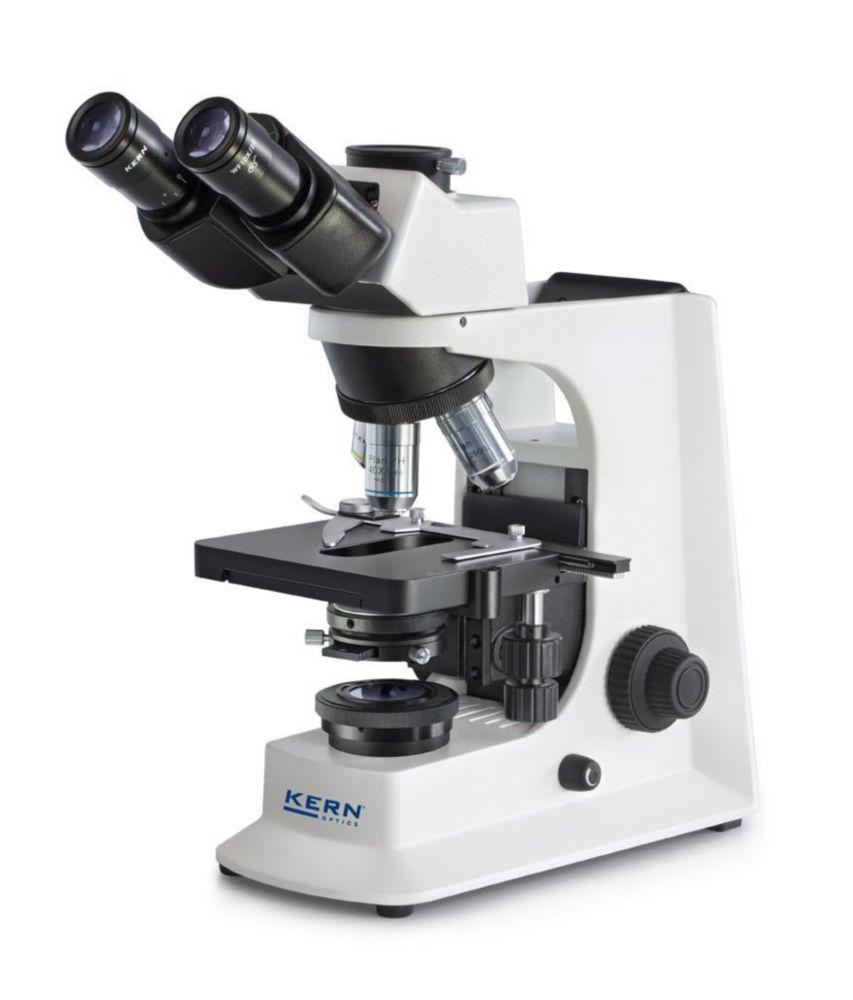

The Kern Compound Microscope OBL 137 is a versatile, high-quality laboratory instrument designed for educational, research, and professional use. It features an infinity optical system with four objective lenses (4x, 10x, 40x, and 100x) and widefield WF10x/20 eyepieces for a broad, clear field of view. The ergonomic 30° inclined, 360° rotatable binocular tube offers comfortable viewing, while coaxial coarse and fine focusing allows precise specimen adjustment. Illumination options include a 3W LED or 20W halogen light source with a lightfield diaphragm and ABBE 1.25 N.A. condenser with aperture diaphragm, providing fixed, pre-centered Köhler illumination for optimal contrast and clarity.

Key Features:
<ul>
 <li>Brand: Kern</li>
 <li>Model: OBL 137</li>
 <li>Objective Lenses: 4x, 10x, 40x, 100x</li>
 <li>Eyepiece: WF10x/20 for a wide field of view</li>
 <li>Tube: 30° inclined, 360° rotatable</li>
 <li>Focusing: Coaxial coarse and fine focusing</li>
 <li>Illumination: 3W LED or 20W halogen lighting with lightfield diaphragm</li>
 <li>Condenser: ABBE 1.25 N.A. with aperture diaphragm, focusable and pre-centered for Köhler illumination</li>
 <li>Diopter Adjustment: One-sided</li>
 <li>Application: Ideal for educational, research, and laboratory use</li>
</ul>

Scope of Supply:
<ul>
 <li>Light microscope</li>
 <li>Dust cover</li>
 <li>Eye cups</li>
 <li>Instruction manual</li>
</ul>

This microscope offers precision, reliability, and ease of use, making it an excellent choice for biology, medical research, material science, and general laboratory applications.

Discover the Kern Compound Microscope OBL 137 with 4 objective lenses and LED illumination for detailed, high-quality observations.

Kern Compound Microscope OBL 137 4/10/40/100, WF10x/20, LED

KERN & SOHN

Compound microscope OBL 137 4/10/40/100. WF10x20. LED

Kern Compound Microscope OBL 137 4/10/40/100, WF10x/20, LED

RM 7,042.20
