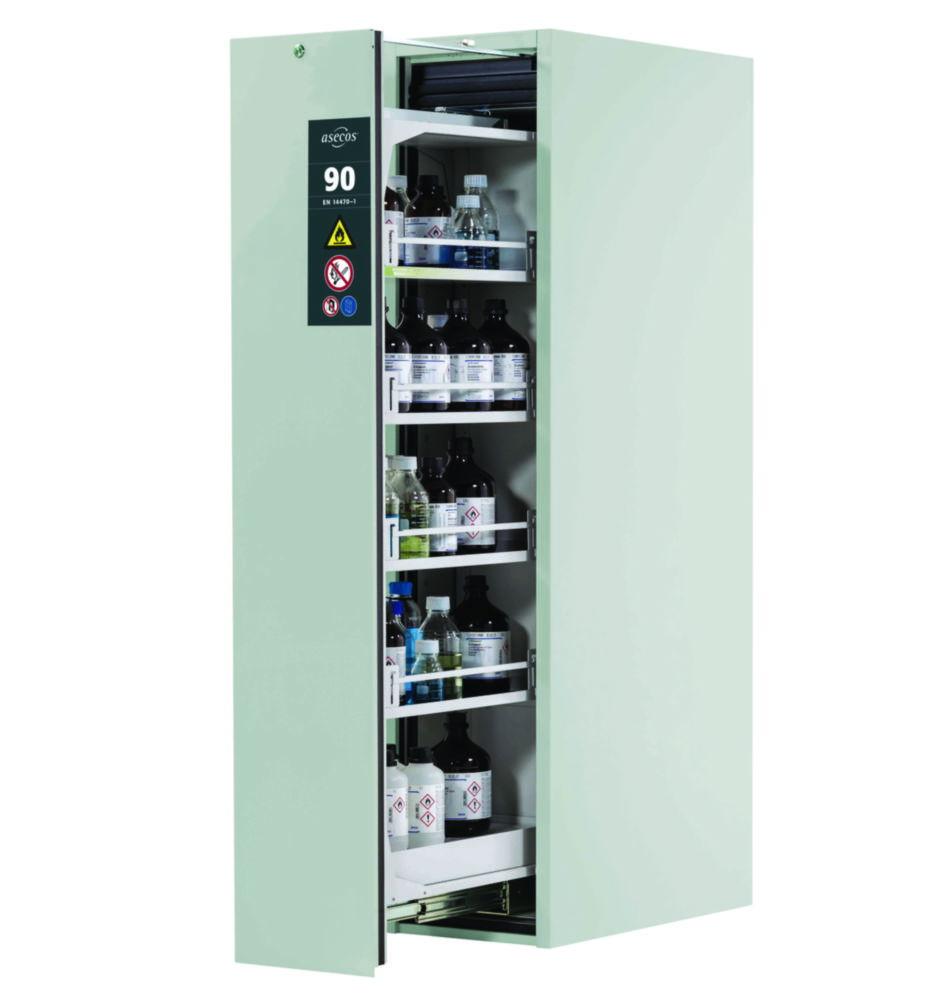

Asecos Safety Storage Cabinet Type 90 V-MOVE 450 x 863 x 1966 mm (HxWxD) Corpus and Doors RAL 7035 / Light Grey

The Asecos Safety Storage Cabinet Type 90 V-MOVE is an essential piece of equipment designed to offer secure, compliant, and organised storage for flammable hazardous substances in laboratory and industrial settings. With a robust, stable body and scratch-resistant powder-coated steel finish in RAL 7035 light grey, this cabinet combines long-term durability with a clean, professional appearance. Measuring 450 x 863 x 1966 mm (HxWxD), it features a space-saving vertical drawer system that enhances accessibility and visibility of stored containers. Designed for maximum safety, it includes electronic drawer operation with automatic closing after 60 seconds, visual and acoustic alerts, a secure cylinder lock with red/green indicator, integrated DN 75 air ducts for external ventilation connection, and adjustable levelling feet. Optional safety enhancements such as a guard rail system are also available.

Key Features:

• Brand: Asecos
• Model: Type 90 V-MOVE
• Dimensions: 450 x 863 x 1966 mm (HxWxD)
• Material: Powder-coated steel body
• Colour Options: Available in Light Grey (RAL 7035) and Pure White (RAL 9010)
• Design: Vertical drawer system for easy access and clear visibility
• Operation: Electronic opening, automatic closing after approx. 60 seconds with visual and acoustic alerts
• Security: Cylinder lock with red/green locking state indicator; compatible with existing systems
• Ventilation: Integrated DN 75 air ducts for external exhaust system connection
• Level Adjustment: Levelling aids for uneven flooring
• Optional Safety Feature: Guard rail system
• Application: Safe and approved storage of flammable hazardous substances in working areas

Scope of Supply Versions:

1. Cabinet without interior equipment
2. Cabinet with 4 x shelves (2.5-l bottles), 1 x perforated insert, 1 x bottom collecting sump
3. Cabinet with 5 x shelves (1-l bottles), 1 x perforated insert, 1 x bottom collecting sump
4. Cabinet left / right: 4 x shelves (2.5-l bottles), 1 x perforated insert, 1 x bottom collecting sump
5. Cabinet left / right: 5 x shelves (1-l bottles), 1 x perforated insert, 1 x bottom collecting sump
6. Cabinet left: 4 x shelves (2.5-l bottles), right: 5 x shelves (1-l bottles), each with 1 x perforated insert and 1 x bottom collecting sump

Optional Accessories:

• Recirculating air filter system with exhaust air monitoring (Cat. No. 9.840 650)
• Ventilation system with exhaust air monitoring (Cat. No. 6.238 986)
• Ventilation system without exhaust air monitoring (Cat. No. 9.840 616)

Built to meet the demands of modern laboratories and industrial facilities, the Asecos Type 90 V-MOVE cabinet ensures fire-resistant, space-efficient, and regulation-compliant storage of flammable substances. Its flexible configurations and proven safety features make it a trusted solution for maintaining safe, organised workspaces.
