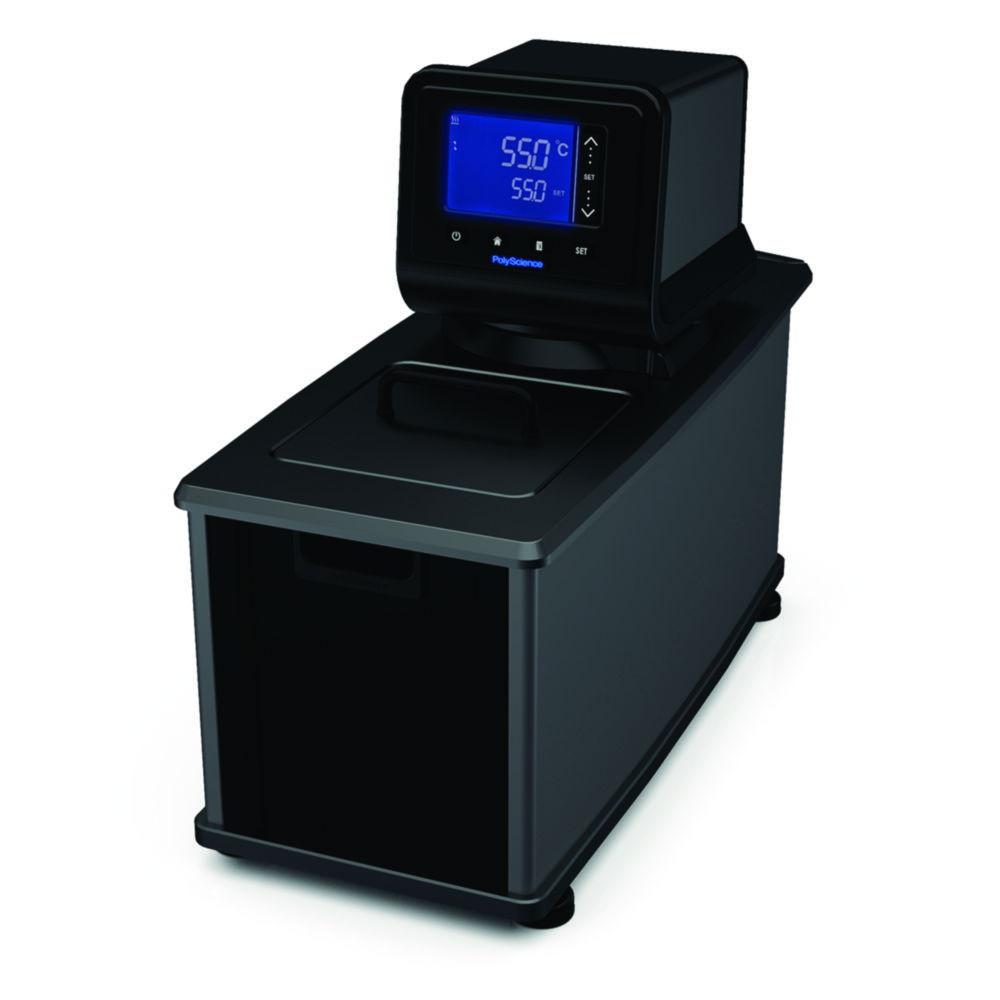

Representative image only
Circulator 20L, Standard Digital heated, +10...+170°C, 240V, 50Hz
Sold by: Analisa Resources
Available Soon
Part #: 4.658 634Manufacturer #: SD20H170-A12E
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
- Large, universal icon and English display
- LidDock™ lid holder
- DuraTop™, precision-molded phenolic bath top resists laboratory chemicals
- Large bath opening and drain
- Easy hook-up of fluid connections
- Swivel 180™ Rotating Controller
- Pressure Pump with two speeds
- On-board connectivity: RS-232 serial output
- On-screen prompts
- Automatic performance optimization
- Single-point calibration capability
Product Specifications
- HS Code #84198998
- Bath depth140 mm
- Depth opening316 mm
- Opening (WxD)250 x 316 mm
- Ext. dim. (WxDxH)610 x 419 x 422 mm
- Ext. depth419 mm
- Ext. height422 mm
- Ext. width610 mm
- Power supply frequency50 Hz
- Heating capacity2.2 kW
- Material bathStainless steel
- Max. delivery pressure0.2 bar
- Max. temperature170 °C
- Max. voltage240 V
- Max. volume bath20 l
- Min. temperature+10 °C
- Power supply240 V, 50 Hz
- Temperature stability±0,04 °C
- TemperatureRT
- TemperatureRT+10 ... 170 °C
- Type of auxiliary energyMains connection
- Type of displayLCD-Touch
- Volume bath20 l
- Width opening250 mm
- With lidYes
