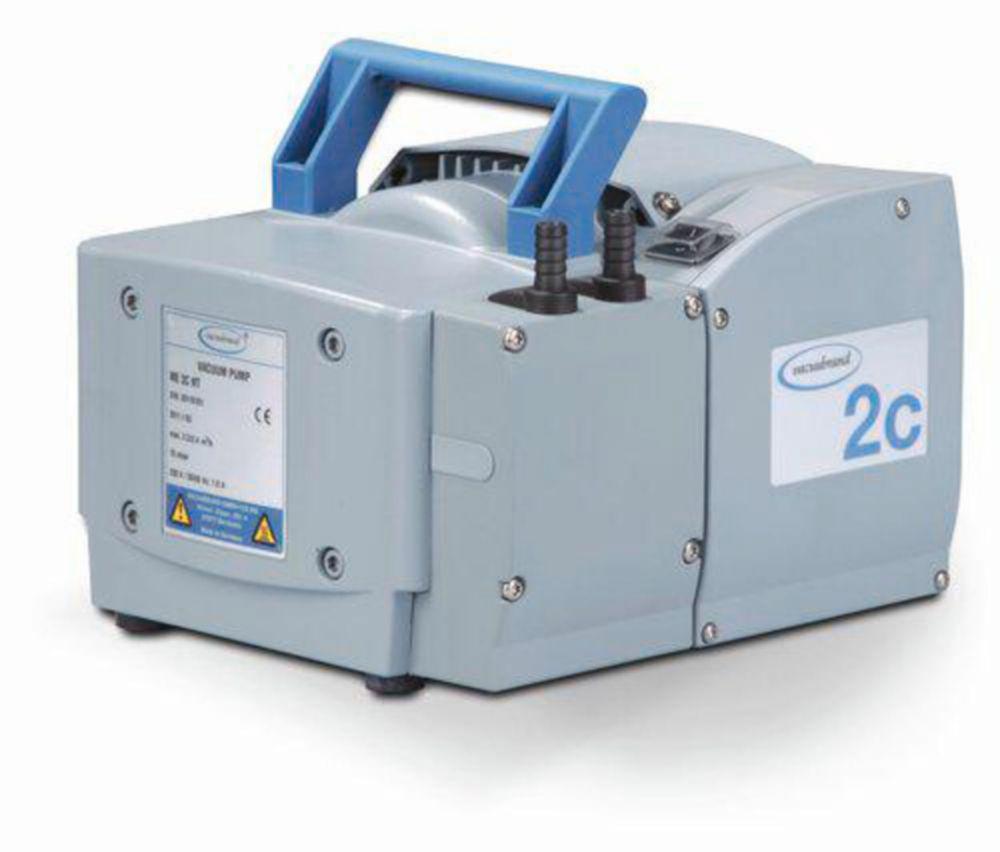

Vacuubrand Chemistry Membrane Pump ME 2C NT, 230 V, 50/60 Hz, with CEE Plug

The Vacuubrand ME 2C NT is a robust, oil-free diaphragm vacuum pump designed for chemical laboratories requiring reliable and contamination-free vacuum generation. Operating at 230 V with a CEE plug, this pump offers a maximum pumping speed of 2.1 m³/h and achieves an ultimate vacuum of 70 mbar (52 torr). Its chemically resistant construction ensures durability when handling aggressive solvents and vapors.

Key Features:

• Brand: Vacuubrand
• Model: ME 2C NT
• Voltage/Frequency: 230 V / 50–60 Hz
• Maximum Pumping Speed: 2.1 m³/h (50 Hz)
• Ultimate Vacuum: 70 mbar (52 torr)
• Number of Stages: 1
• Number of Heads: 1
• Inlet/Outlet Connection: Hose nozzle DN 8–10 mm
• Rated Motor Power: 0.18 kW
• Rated Motor Speed: 1500/1800 min⁻¹ (50/60 Hz)
• Protection Class: IP 40 (IEC 60529)
• Dimensions (L x W x H): 243 x 211 x 198 mm
• Weight: 10.2 kg
• Noise Level: 45 dBA
• Ambient Temperature Range (Operation): 10°C to 40°C
• Ambient Temperature Range (Storage): -10°C to 60°C
• Max. Back Pressure (abs.): 1.1 bar
• Certifications: NRTL certified

This pump is ideal for applications such as vacuum filtration, degassing, and evaporation of volatile solvents in chemical laboratories. Its oil-free design ensures maintenance-free operation and eliminates the risk of oil contamination.

Frequently Asked Questions

1. What is the Vacuubrand Chemistry Membrane Pump ME 2C NT, 230 V, 50/60 Hz, with CEE Plug used for?

It is a robust, oil-free diaphragm vacuum pump designed for chemical laboratories requiring reliable and contamination-free vacuum generation. Operating at 230 V with a CEE plug, this pump offers a maximum pumping speed of 2.1 m³/h and achieves an ultimate vacuum of 70 mbar (52 torr). Its chemically resistant construction ensures durability when handling aggressive solvents and vapors.

2. Is this product suitable for chemical laboratories requiring reliable and contamination-free vacuum generation?

Yes. It is designed for chemical laboratories requiring reliable and contamination-free vacuum generation, and offers a voltage/frequency of 230 V / 50–60 Hz and a maximum pumping speed of 2.1 m³/h (50 Hz) to support this kind of work.

3. What voltage/frequency and maximum pumping speed does this product have?

It has a voltage/frequency of 230 V / 50–60 Hz, a maximum pumping speed of 2.1 m³/h (50 Hz) and an ultimate vacuum of 70 mbar (52 torr).

4. What inlet/outlet connection and protection class does this product offer?

It offers hose nozzle DN 8–10 mm, IP 40 (IEC 60529), -10°C to 60°C and NRTL certified.
