Xylem Thermostat Cabinet TS 1010-i, For 4 BSB-OxiTop Measuring Systems, High Insertion Height For 1.5 L Vessels, 230 VAC, Coolant R-600a

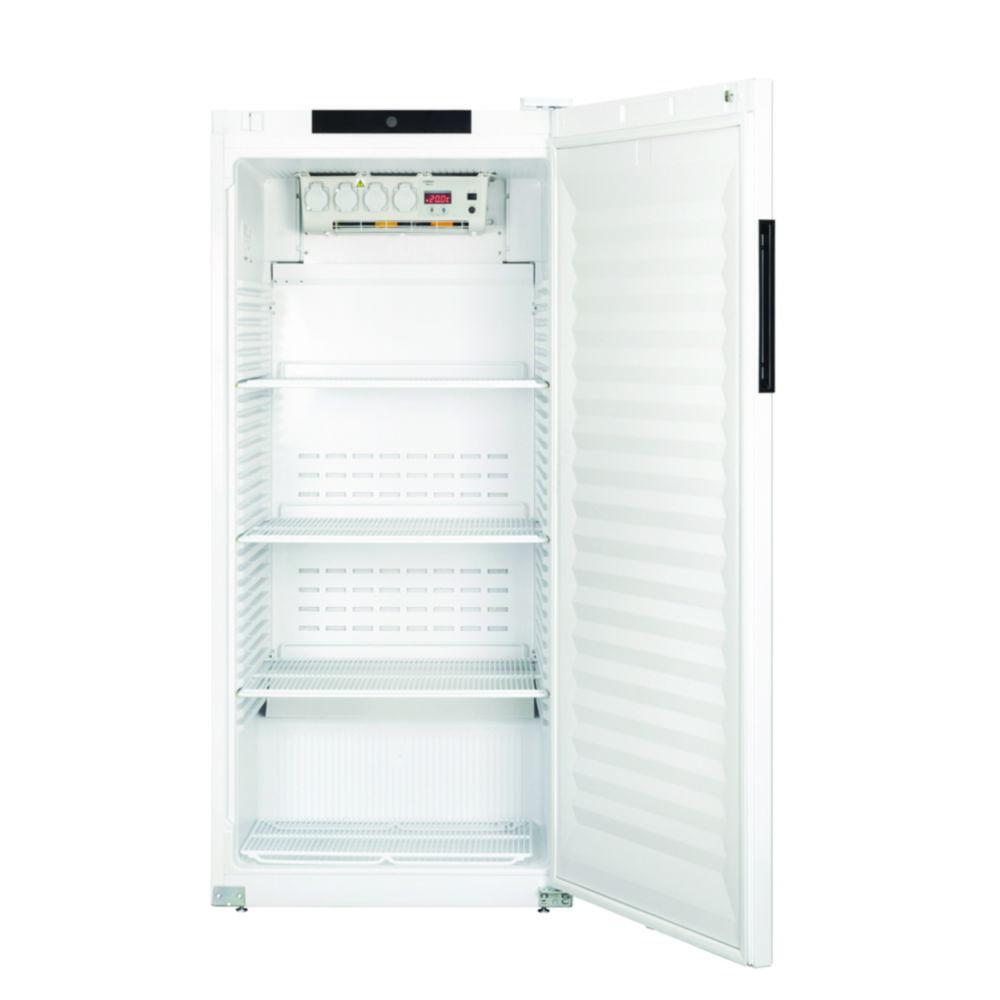

Representative image only

Xylem Thermostat Cabinet TS 1010-i, For 4 BSB-OxiTop Measuring Systems, High Insertion Height For 1.5 L Vessels, 230 VAC, Coolant R-600a

Sold by: Analisa Resources
Available Soon
Part #: 6.492 883Manufacturer #: 208468
Estimated shipping time:Contact us via live chat or via contact us page

RM 29,040.00

Product overview

The Xylem Thermostat Cabinet TS 1010-i, For 4 BSB-OxiTop Measuring Systems, High Insertion Height For 1.5 L Vessels, 230 VAC, Coolant R-600a is a compact temperature cabinet designed for standard-compliant incubation and use with OxiTop IS 12 stirring platforms. It is suitable for BOD, OECD 301F, soil respiration, and anaerobic degradation applications.

Key Features:

  • Brand: Xylem
  • Product Type: Thermostat cabinet
  • Model: TS 1010-i
  • Capacity: For 4 BSB-OxiTop measuring systems
  • Insertion Height: High insertion height for 1.5 L vessels
  • Voltage: 230 VAC
  • Coolant: R-600a
  • Temperature Range: Adjustable in steps of 1 K between 10 and 40 °C
  • Compatibility: Internal sockets for use with OxiTop IS 12 stirring platforms
  • Application: Suitable for BOD, OECD 301F, soil respiration, and anaerobic degradation
  • Refrigerant: Eco-friendly R600a refrigerant

Note:

The necessary temperature constancy will only be achieved in combination with the samples.

The Xylem Thermostat Cabinet TS 1010-i provides a practical incubation solution for laboratories requiring controlled temperature conditions for compatible BSB-OxiTop measuring systems.

Product Specifications

  • HS Code #84198998
  • Depth int.539 mm
  • Ext. dim. (WxDxH)747 x 769 x 1,684 mm
  • Ext. depth769 mm
  • Ext. height1684 mm
  • Ext. width747 mm
  • Power supply frequency50 Hz
  • Height int.1459 mm
  • Int. Dim. (WxDxH)625 x 539 x 1,459 mm
  • Int. width625 mm
  • Max. temperature40 °C
  • Max. voltage240 V
  • Min. temperature10 °C
  • Min. voltage220 V
  • Nominal capacity534 l
  • Power supply220 ... 240 V, 50 Hz
  • Rated capacity380 W
  • Temperature stability±0,5 K
  • Temperature10 ... 40 °C
  • TypeTS 1010-i
  • Type of auxiliary energyMains connection
  • UNSPSC41104423
  • Weight69 kg
